Parts
312394ZAC 39

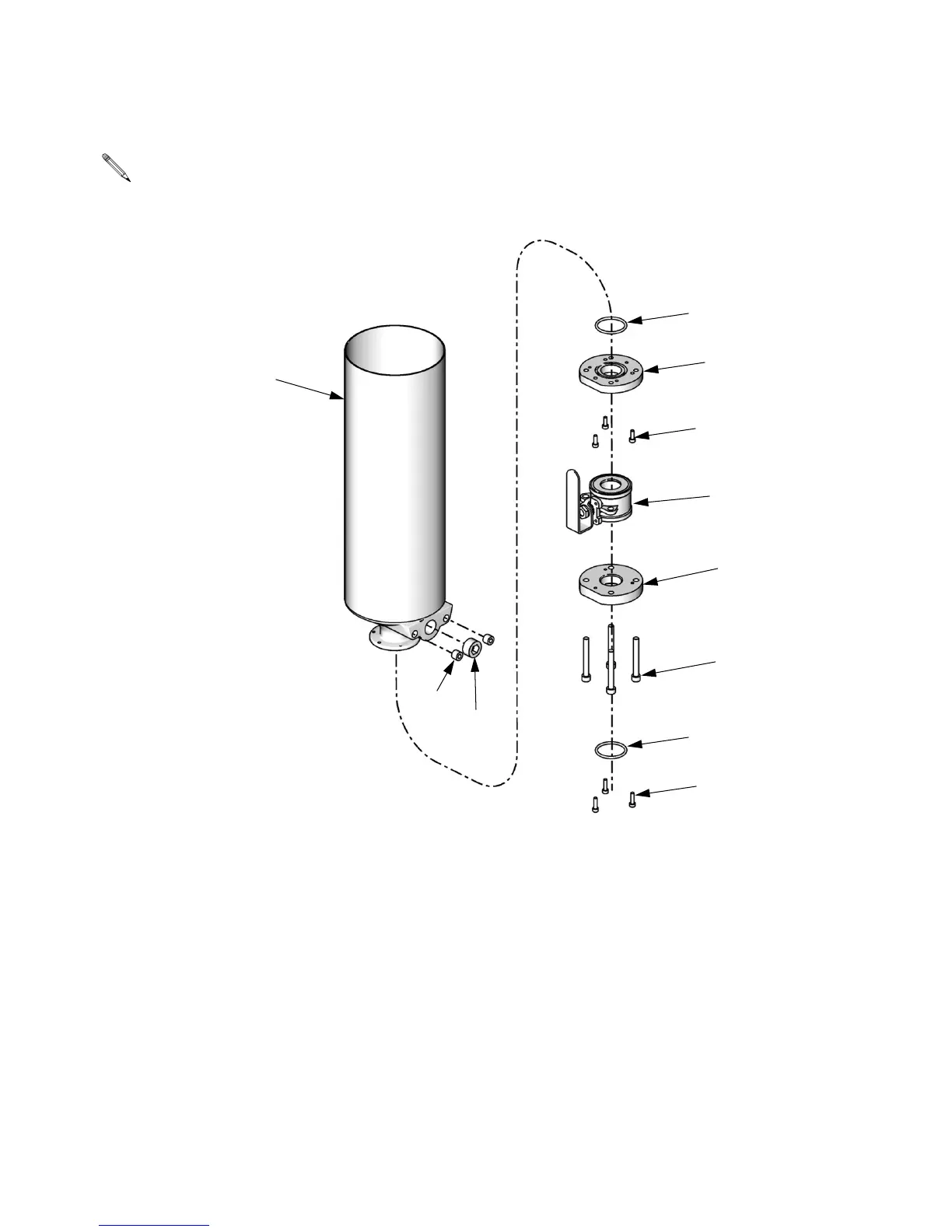

Tank Assemblies 255284, 255285, LC0235, LC0236, LC0012, and LC0013
† See Ball Valve, Assembly 255280, page 40 for
parts information.
It is recommended that the flat face of the tank
faces the back of the base machine. Right hand
tank shown, left hand tank is mirror image.
503
506a
505
506c
503
504
507
501
502
Assembly 255284 Shown
506b
506d
ti12453a
Ref Part Description Qty
501 94/0370/98 PLUG, socket head, 1/4 npt,
stainless steel
2
502 94/0372/98 PLUG, socket head, 3/4 npt,
stainless steel
1
503 95/0223/00 O-RING, fluoroelastomer, bbc 2
504 120904 SCREW, socket head cap, M5 x
0.8 x 18mm
3
505 121011 SCREW, M5 x 0.8 x 14mm,
socket head cap, stainless steel
(assemblies 255284, 255285,
LC0235, and LC0236 only)
3
506 † 255280 VALVE, ball, shutoff (assemblies
255284, 255285, LC0235, and
LC0236 only)
1
507 --- Refer to Tanks for Use with
Dust Covers and Tanks for Use
with Clampdown Covers, page
44, for replacement or spare
parts.
1
Ref Part Description Qty
