Graco ProBell Instructions And Parts

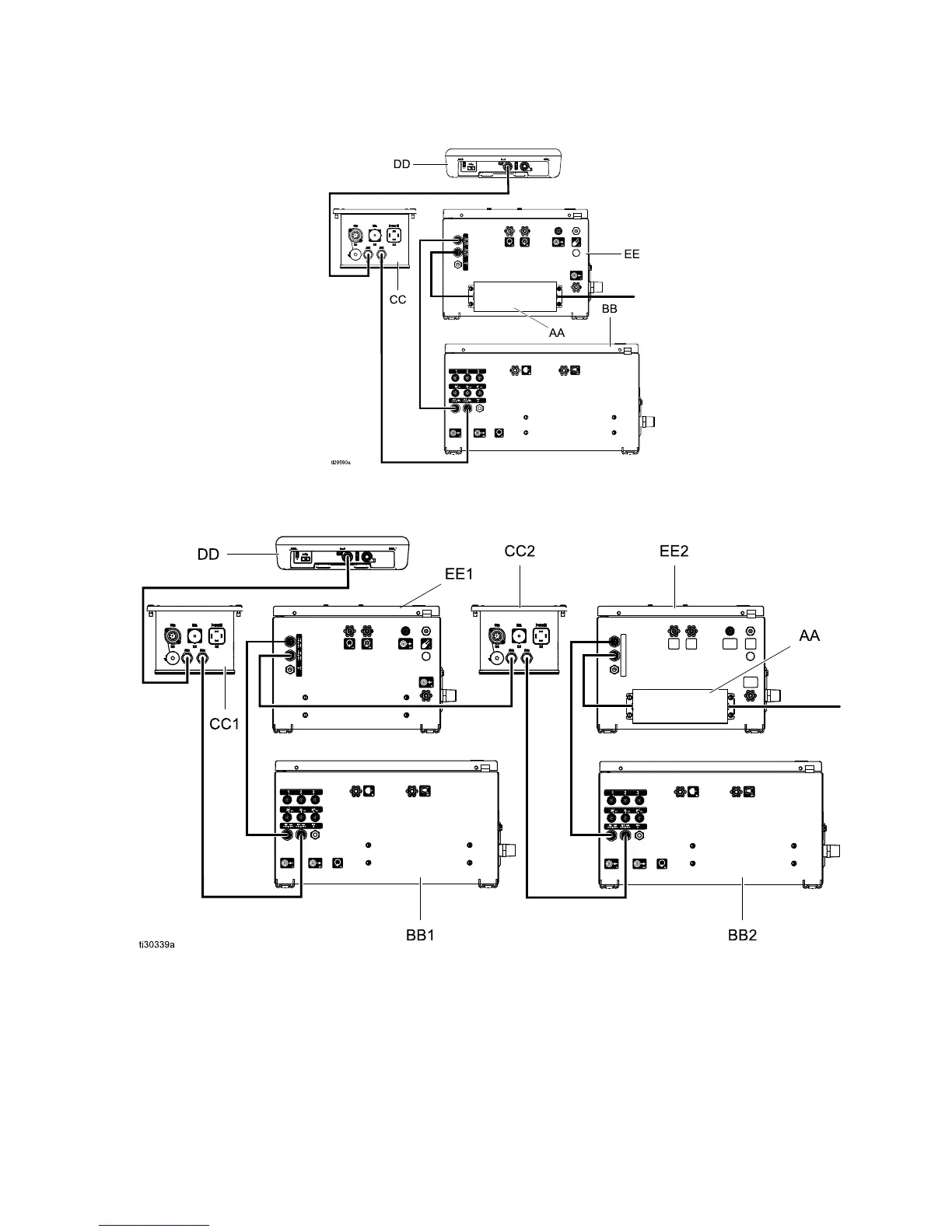

Controller Connections
One Gun Wiring
Two Gun Wiring
Other configurations (not shown) are possible. Follow these rules when building the CAN network.
• Connect controllers in series.
• A termination resistor must be installed on the
power supply port.
• Remove any other termination resistors from the
system.
• Set IDs on all boxes.
3A3954B 15
