Graco ProBell Instructions And Parts

Repair

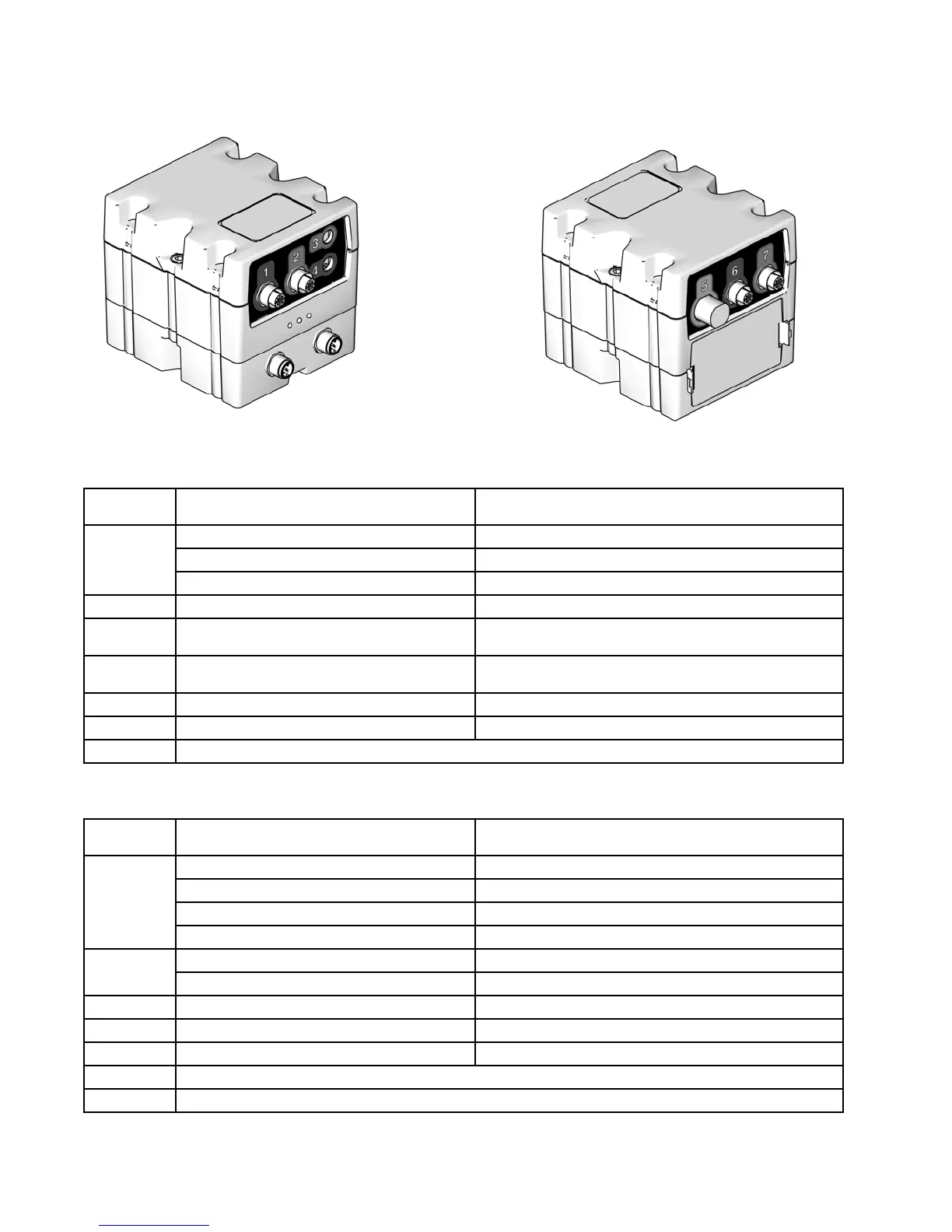

Front Side
Back Side
Table 10 Electronic Air Controller
Module
Connection
Purpose
System Connection
Paint Trigger Solenoid
Terminal Blocks 1 and 3
Dump Trigger Solenoid
Terminal Blocks 4 and 5
1
Solvent Trigger Solenoid
Terminal Blocks 6 and 7
2 Trigger In
Optocoupler
3
Shaping Air Inner Solenoid and V2P
Regulator
Terminal Blocks 12–17
4
Shaping Air Outer Solenoid and V2P
Regulator
Terminal Blocks 19–24
5
Auxiliary Solenoids
Terminal Blocks 27–32, 35
6 V2P Regulator Pressure Feedback None
7
Unused
Table 11 Manual Air Controller
Module
Connection
Purpose
System Connection
Turbine Air Solenoid
Terminal Blocks 1 and 2
Paint Trigger Solenoid
Terminal Blocks 3 and 4
Dump Trigger Solenoid
Terminal Blocks 5 and 6
1
Solvent Trigger Solenoid
Terminal Blocks 7 and 8
Trigger In
Optocoupler
2
Pressure Switch
Terminal Blocks 11–13
3
Shaping Air Inner Solenoid
Terminal Blocks 15–17
4
Shaping Air Outer Solenoid
Terminal Blocks 19–21
5
Auxiliary Solenoids
Terminal Blocks 23–27, 28, and 31
6 Unused
7
Unused
26 3A3954B
