Graco ProBell Instructions And Parts

ProBell System I
nformation
ProBell Syste
m
Information
The ProBell Ai
r Controller is an optional component in
the ProBell R
otary Applicator system. The Electronic
Air Controll
er sends air activation signals for the
paint, dump,
and solvent (cup wash) valves. It also
electronica
lly controls the inner and outer shaping
air pressur
es. The Manual Air Controller controls
all air in th
e system. Manual air regulators are
used to set t
he turbine and shaping air pressures.
This manual
covers information specific to the Air
Controller
s. It includes information on installation,
troublesh
ooting, repair, and parts. See the ProBell
Rotary App
licator manual (334452 or 334626) for
all system
information, including how to install and
connect th
e whole system, required interlocks,
system gro
unding, and required electrical tests.
The applic
ator manual also contains all operation
informat
ion. See the System Logic Controller Manual
(3A3955)
for details on how to set up parameters for
the Air Co
ntroller.

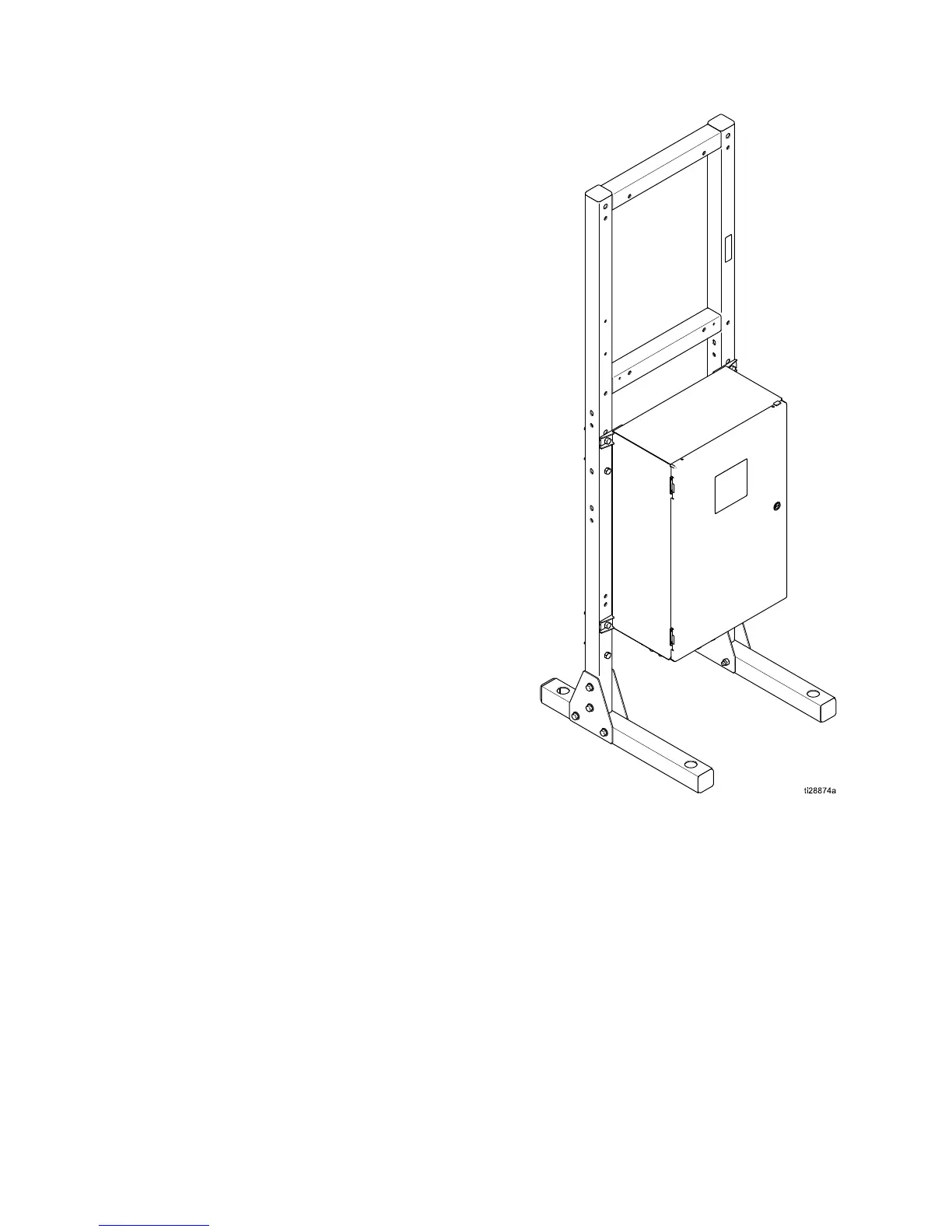

Figure 1 ProBell Electronic Air Controller, shown on
Cart (sold separately)
3A3954B 5
