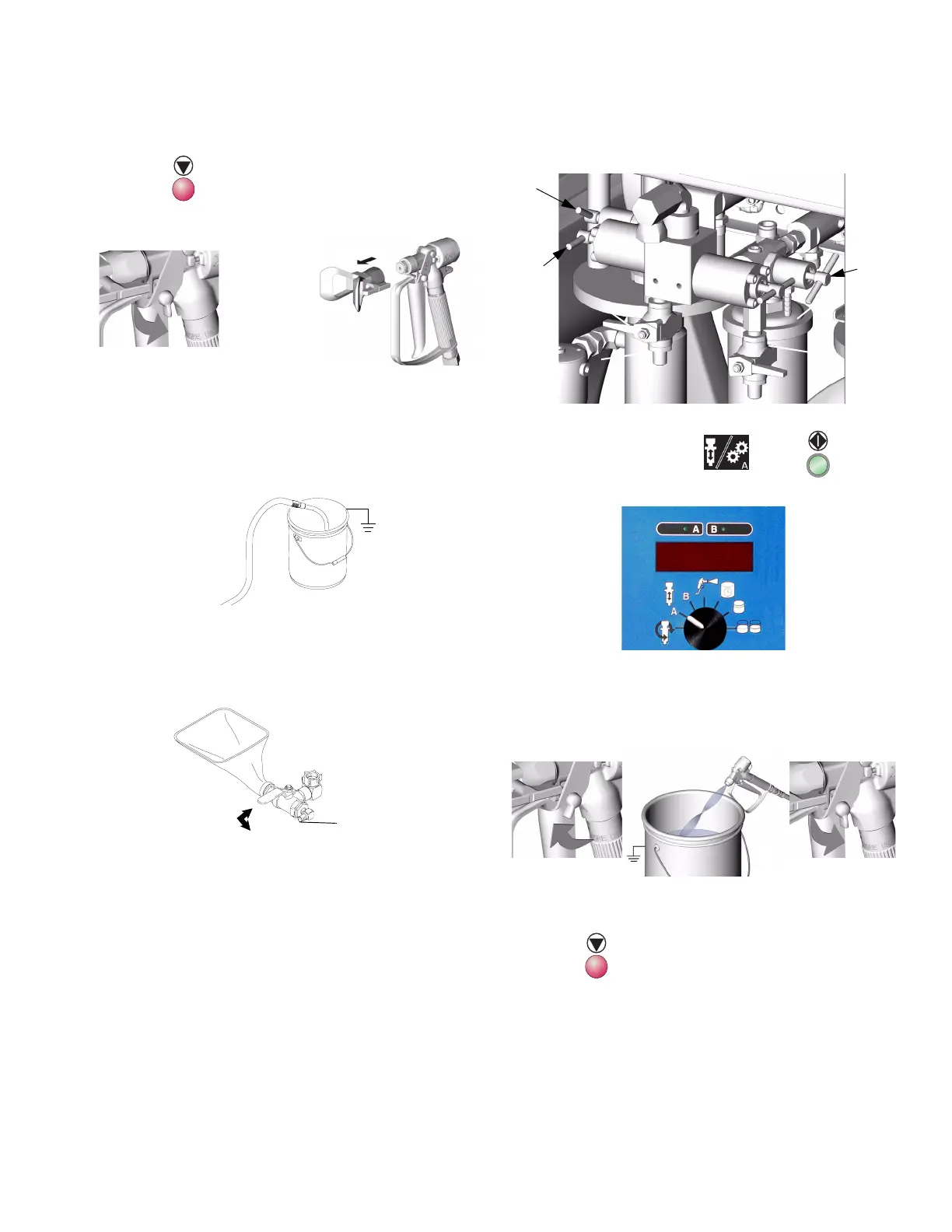

Flushing
310665E 19
Using Solvent Siphon Tube
7. Press to turn off proportioner.
8. Follow Pressure Relief Procedure, page 14.
1. Press . Follow Pressure Relief Procedure,
page 14. Engage trigger lock. Remove spray tip.
2. Connect fluid hose with solvent siphon tube to pump
A 3-way ball valve. Put solvent siphon tube into a
grounded solvent pail.
3. Turn pump A 3-way ball valve to open suction tube
line, as shown below. Arrow on handle shows direc-
tion of flow.
TI5183aTI5049a
Suction Tube Line
A
4. Open main air shutoff valve. Open fluid shutoff valve
G
A
. Close sampling valves H
A
and H
B
.
5. Turn function knob to A . Press . Turn up
air regulator slowly until pump A starts.
6. Disengage trigger lock and trigger gun into a
grounded pail until clean solvent dispenses. Engage
trigger lock.
TI4957b
H
B
H
A
G
A
TI5047a TI5049aTI5048a
To Next Page
