Dimensions
310665E 37
Dimensions

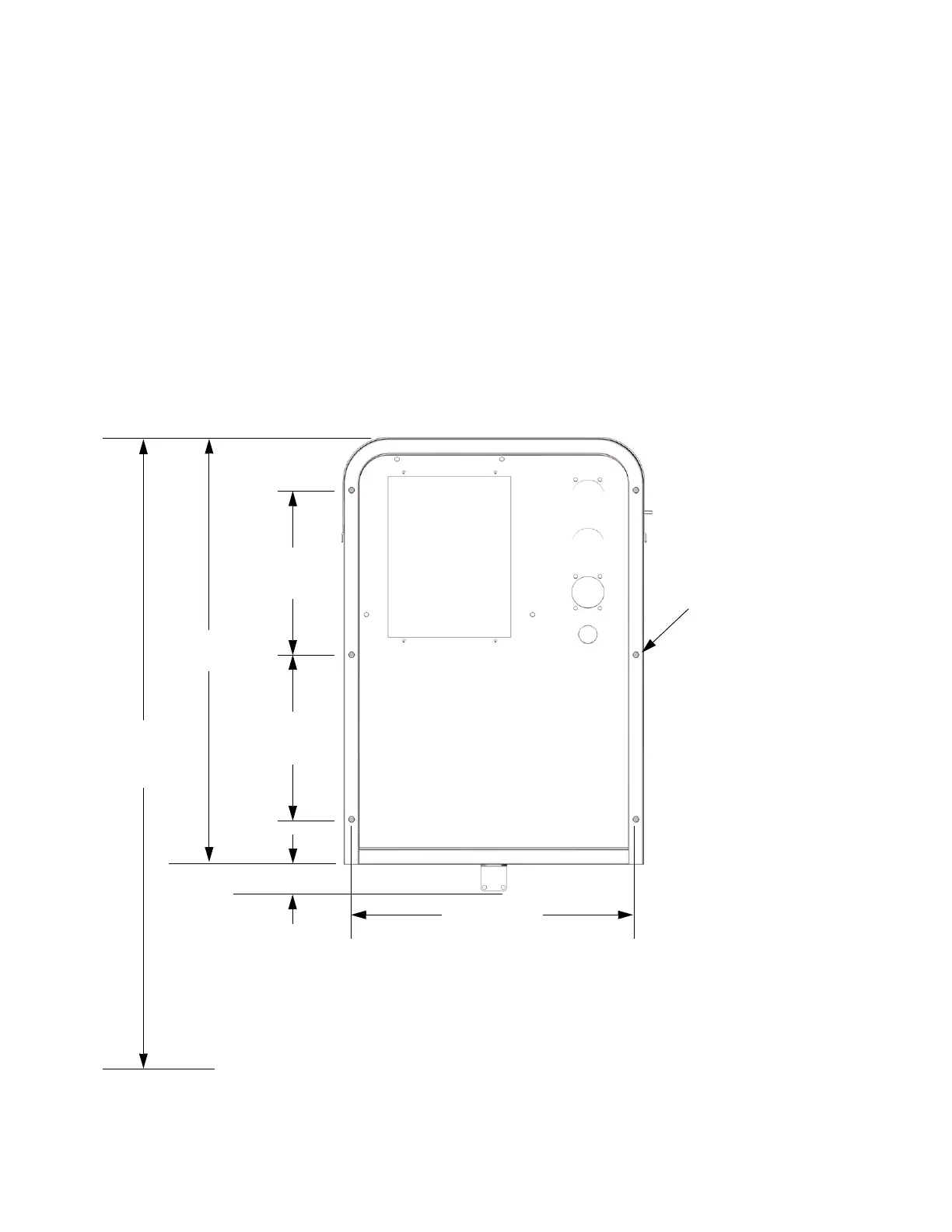

Wall Mounting Diagram
Cart model (width x height x depth). . . . . . . . . . . 31 x 56 x 29 in. (787 x 1422 x 737 mm)
Air inlet size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1/2 npt(f)
Fluid inlet size . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 in. npsm(m)
Fluid outlet size (mix manifold) . . . . . . . . . . . . . . 3/8 npt(f)
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Non-heated: 240 lb (108 kg)
Heated: 330 lb (149 kg)
Six 0.406 in. (10.3 mm)
diameter mounting holes
11 in.
(279.4 mm)
11 in.
(279.4 mm)
TI4809a
28.45 in.
(722.6 mm)
19.0 in.
(482.6 mm)
48.0 in.
(1219 mm)
1.79 in. (45.5 mm)
Bottom of pump, or
lowermost part of unit
