Graco Pulse Series User Manual

Service
12 3A5413F

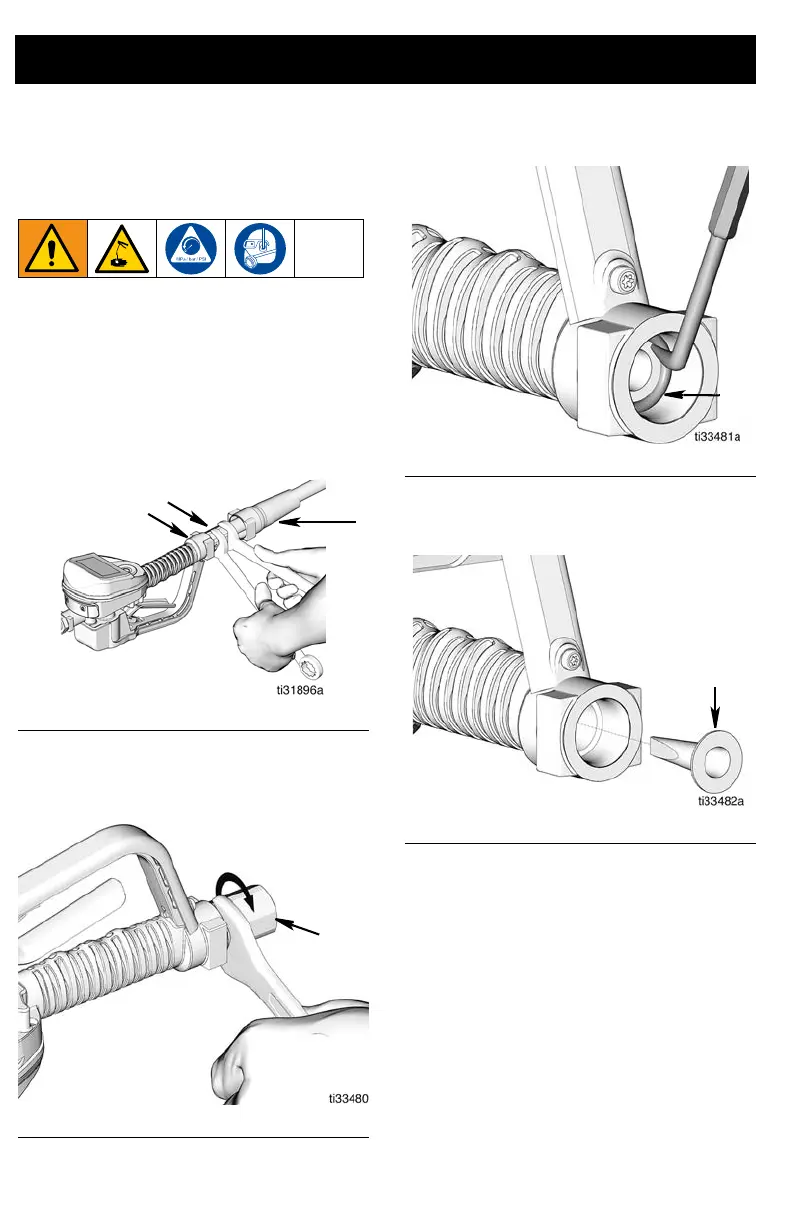

Swivel Seal and Strainer
Replacement
Use Swivel Seal and Filter Kit 25D906
1. Relieve pressure. See Pressure Relief
procedure, page 7.
2. Slide the swivel boot (a) back, over the
hose, to access the swivel fitting (6) (FIG.
12). Using two wrenches working in
opposite directions, disconnect swivel
fitting (6) from hose fitting (b)(F
IG. 12).
3. Use a wrench to loosen and remove
swivel fitting (6) from metered dispense
valve (F
IG. 13).
4. Use a pick to remove o-ring (10) (FIG. 14)
from inlet.
5. Remove mesh strainer (4) from inlet
(F
IG. 15).
FIG. 12
F
IG. 13
6
b
6
FIG. 14
F
IG. 15
10
4
a
