Graco Pulse Series User Manual

Service
3A5413F 11

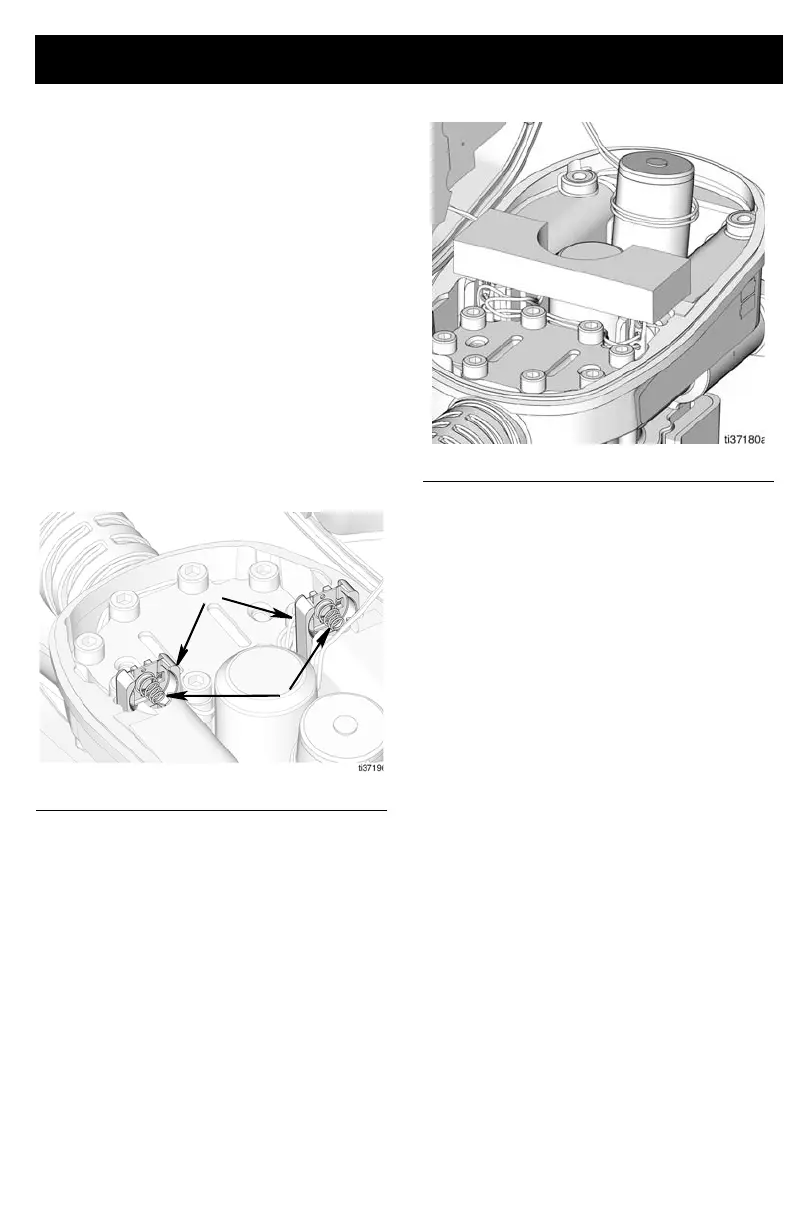

Power Cable Replacement
1. Remove screws (36) and battery cover
(5).
2. Remove screws (21), o-rings (20) and
bezel (19).
3. Remove Foam (39) and adhesive.
4. Remove the Power Cable (38).
5. Install the new Power Cable (38).
• Cord is to the left when holding the
metered valve in a normal dispense
position (FIG. 9).
• The black battery contacts (g) are
installed so that the springs (h) are
located at the top of the installed
contacts (F
IG. 10).
6. Orient the wires following Reassembly,
Step 3 on page 9.
7. Install new Foam (38) retainer. This
holds the power cable in place. The foam
is shown in the installed position (F
IG.
11).
8. Reinstall the bezel following
Reassembly steps 4 - 8, page 10.
FIG. 10
g
h
FIG. 11
