Service
3A5413F 17

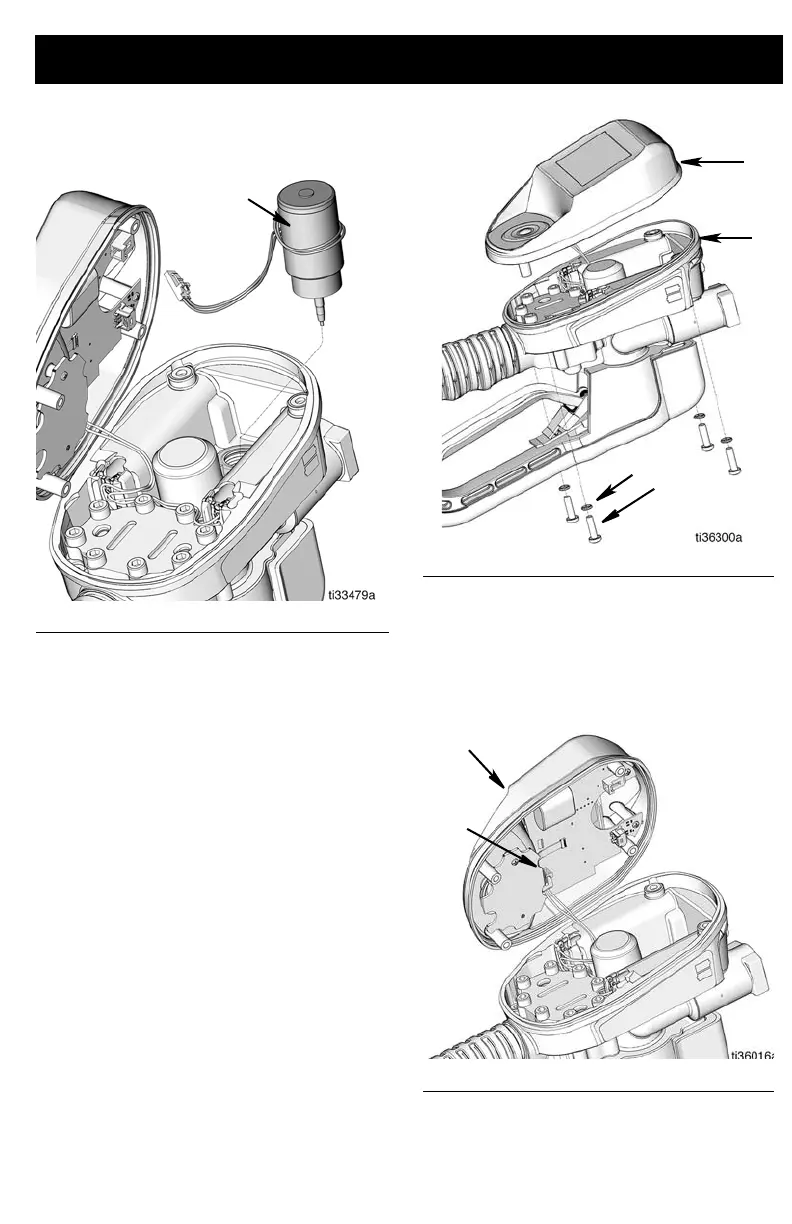

14. Reinstall and firmly hand tighten the
solenoid (37) (F
IG. 29).
15. To complete the metered dispense
valve reassembly, see Reassembly
instructions page 20.
SDM Trip Rod Replacement
SDM Models use Trip Rod Repair Kit 26C394
1. Follow Disassembly instructions, Steps
1 - 6, beginning on page 13.
2. Remove the batteries and turn metered
dispense valve over.
3. Remove 4 screws (21) and o-rings (20)
and carefully lift bezel (19) off housing
(12) (F
IG. 30).
NOTE: The power will still be connected
to the bezel as shown in F
IG. 30. Before
the bezel can be completely separated
from the housing, this connection must
be detached.
4. Disconnect the black and red power
connection (a) (F
IG. 31).
NOTE: Be careful not to disturb the white
button board ribbon cable taped to the
bezel housing if reusing the bezel (19).
FIG. 29
FIG. 30
F
IG. 31
