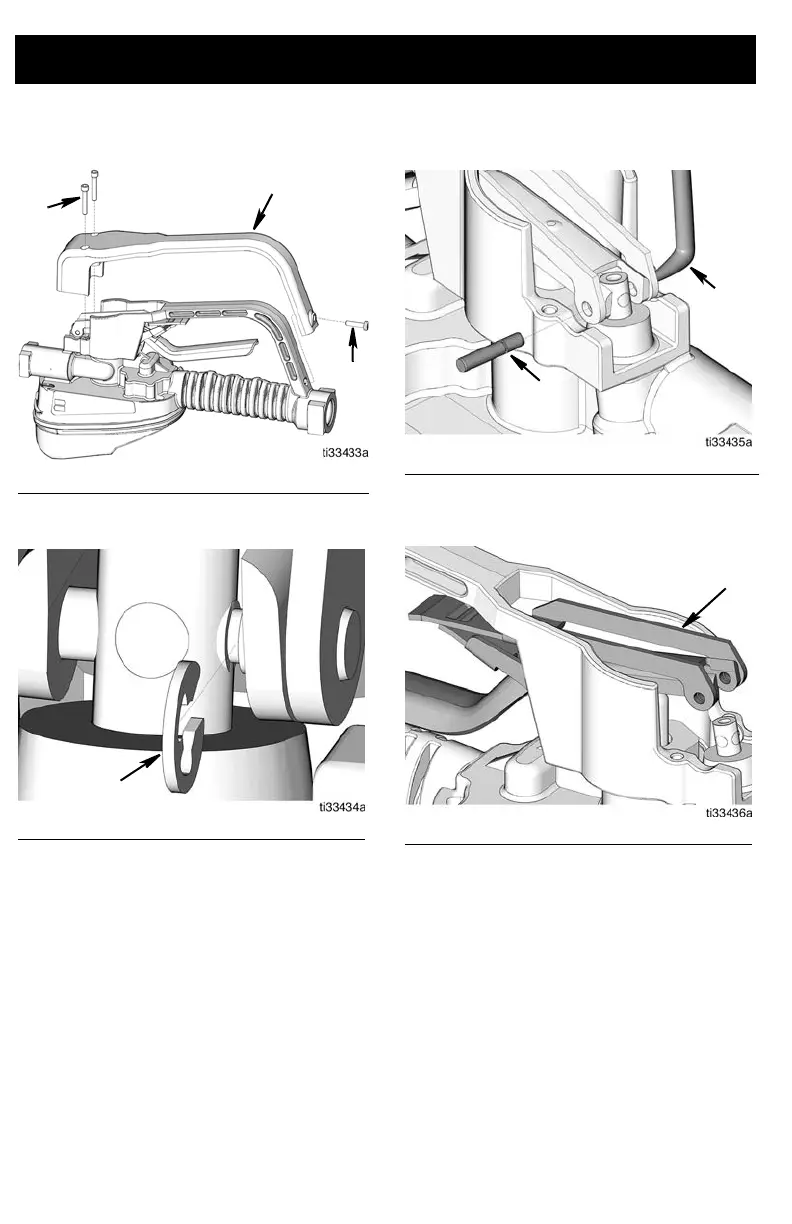

3. Remove screws (17 and 18) and trigger
guard cover (16) (FIG. 19).
4. Remove clip (15a) as shown in F
IG. 20.
5. Use a pick to push pin (15b) out (FIG.
21).
6. Remove trigger assembly (15) from the
housing (FIG. 22).
FIG. 19
F
IG. 20
16
18
17
15a
FIG. 21
F
IG. 22
15b
pick
15
