Graco Pulse Series User Manual

Service
18 3A5413F
5. Remove trip rod (27) from housing (F
IG.
32).
6. Use a pick to remove seal (28) from the
bottom of the trip rod hole (a) (F
IG. 32).
NOTE: Always use all the new parts pro-
vided in the kit. Do not reuse the old parts.
7. Install seal (28) onto trip rod (27) See
F
IG. 33.
NOTE: The lipped side of the seal (28)
should face down, away from the end of
the trip rod that holds the balls.
8. Install trip rod assembly (27) into the
trip rod hole (a) (FIG. 27).
9. To complete the metered dispense
valve reassembly, see Reassembly
instructions page 20.

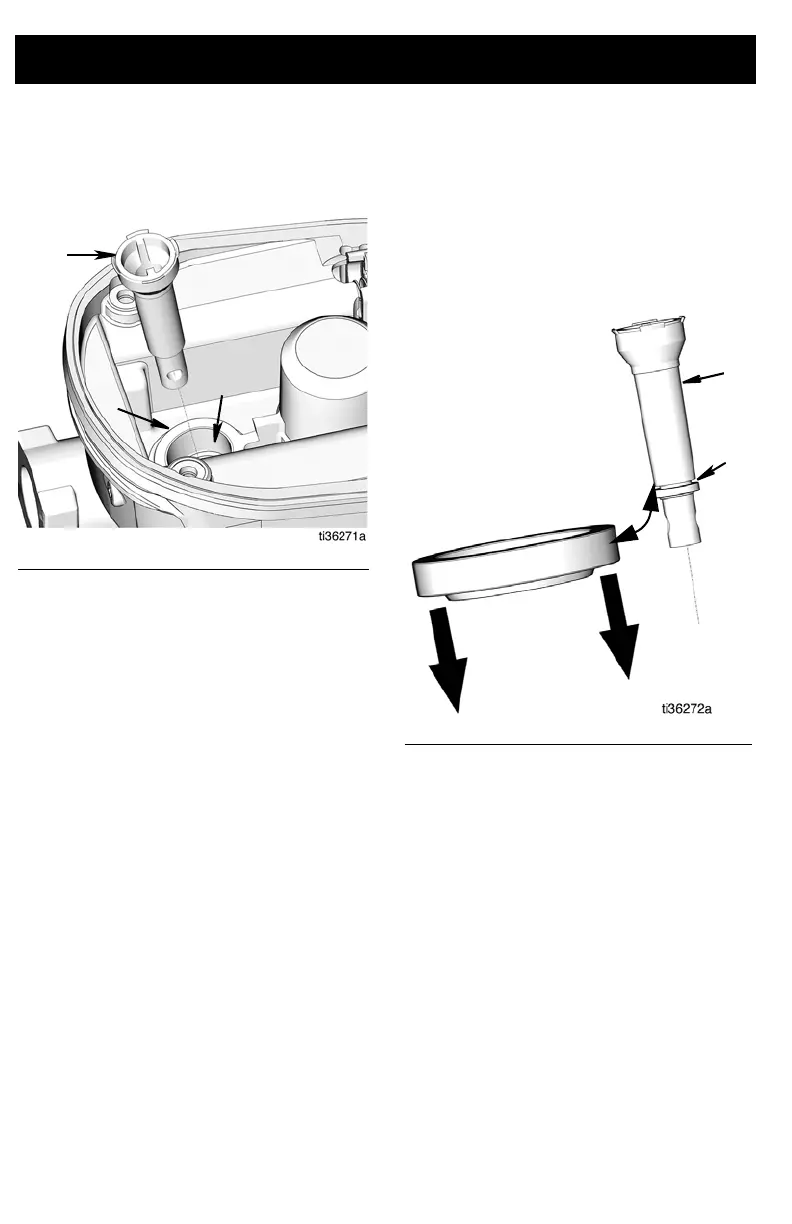

FIG. 32
27
a
28
FIG. 33
Lips face down
28
27
