Graco Reactor 2 E-30 Operation

AdvancedDisplayModule(ADM)Operation
Home Home
Home
Screen Screen
Screen
— —
—
System System
System
Off Off
Off

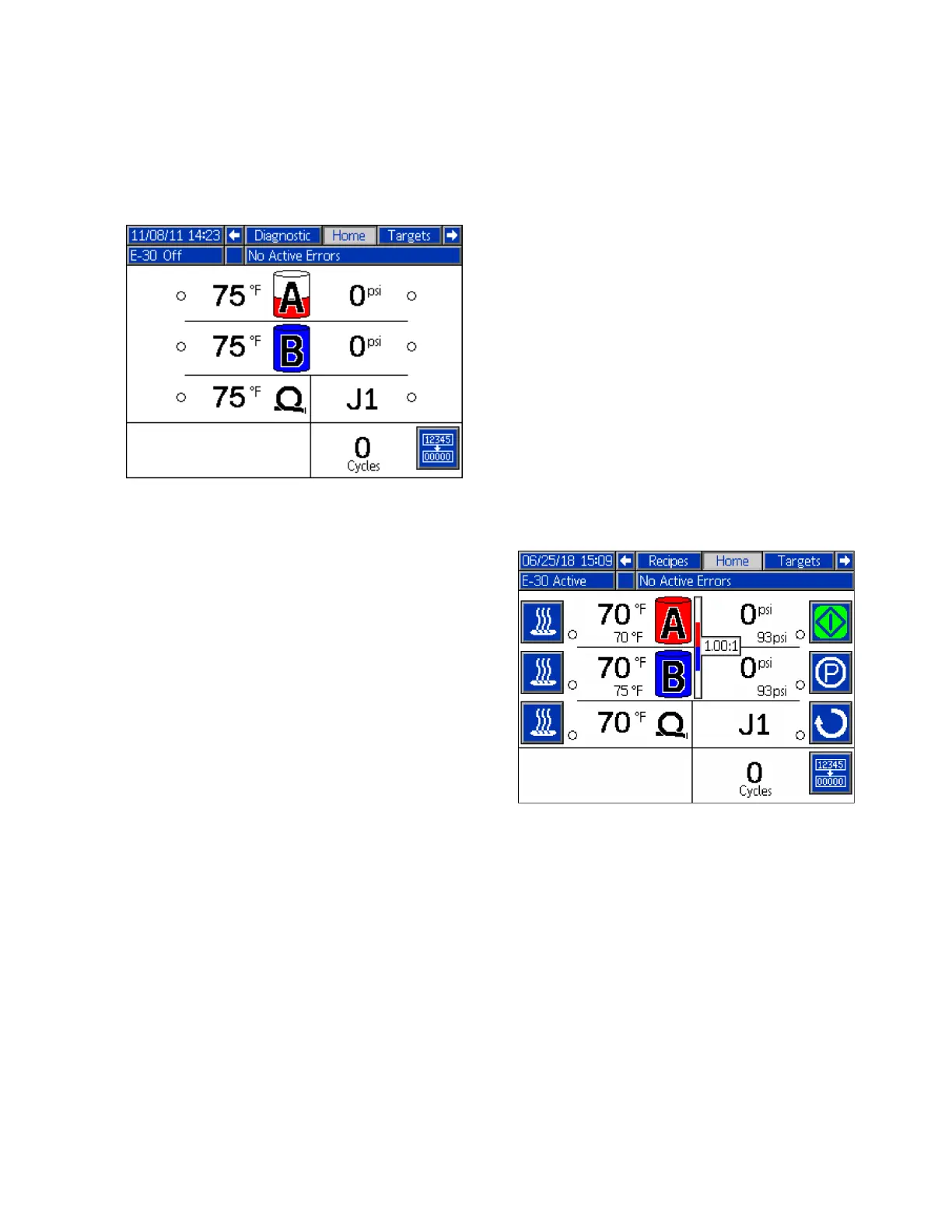

Thisisthehomescreenwhenthesystemisoff.
Thisscreendisplaysactualtemperatures,actual
pressuresattheuidmanifold,jogspeed,and
numberofcycles.
Home Home
Home
Screen Screen
Screen
— —
—
System System
System
Active Active
Active
Whenthesystemisactive,thehomescreen
displaysactualtemperatureforheatzones,
actualpressuresattheuidmanifold,coolant
temperature,jogspeed,thenumberofcycles,
alongwithallassociatedcontrolsoftkeys.
Usethisscreentoturnonheatzones,view
coolanttemperature,starttheproportioner,
stoptheproportioner,parkthecomponentA
pump,enterjogmode,andclearcycles.
NOTE: NOTE:
NOTE:
Thescreenshowndisplaysinletsensor
temperaturesandpressures.Thesewillnotbe
shownonmodelswithoutinletsensors.
NOTE: NOTE:
NOTE:
Thescreenshowndisplaysowbarsand
theowratio.Theverticalbarsindicatethe
levelofowthroughthemeters.Thenumerical
ratioindicatestheratioofA-sidecomponent
toB-sidecomponent(ISO:RES).Forexample,
iftheratiois1.10:1,theproportioneris
pumpingmoreA-sidecomponent(ISO)than
B-sidecomponent(RES).Iftheratiois0.90:
1,theproportionerispumpingmoreB-side
component(RES)thanA-sidecomponent(ISO).
333023U 39
