AdvancedDisplayModule(ADM)Operation
Events Events
Events
Screens Screens
Screens

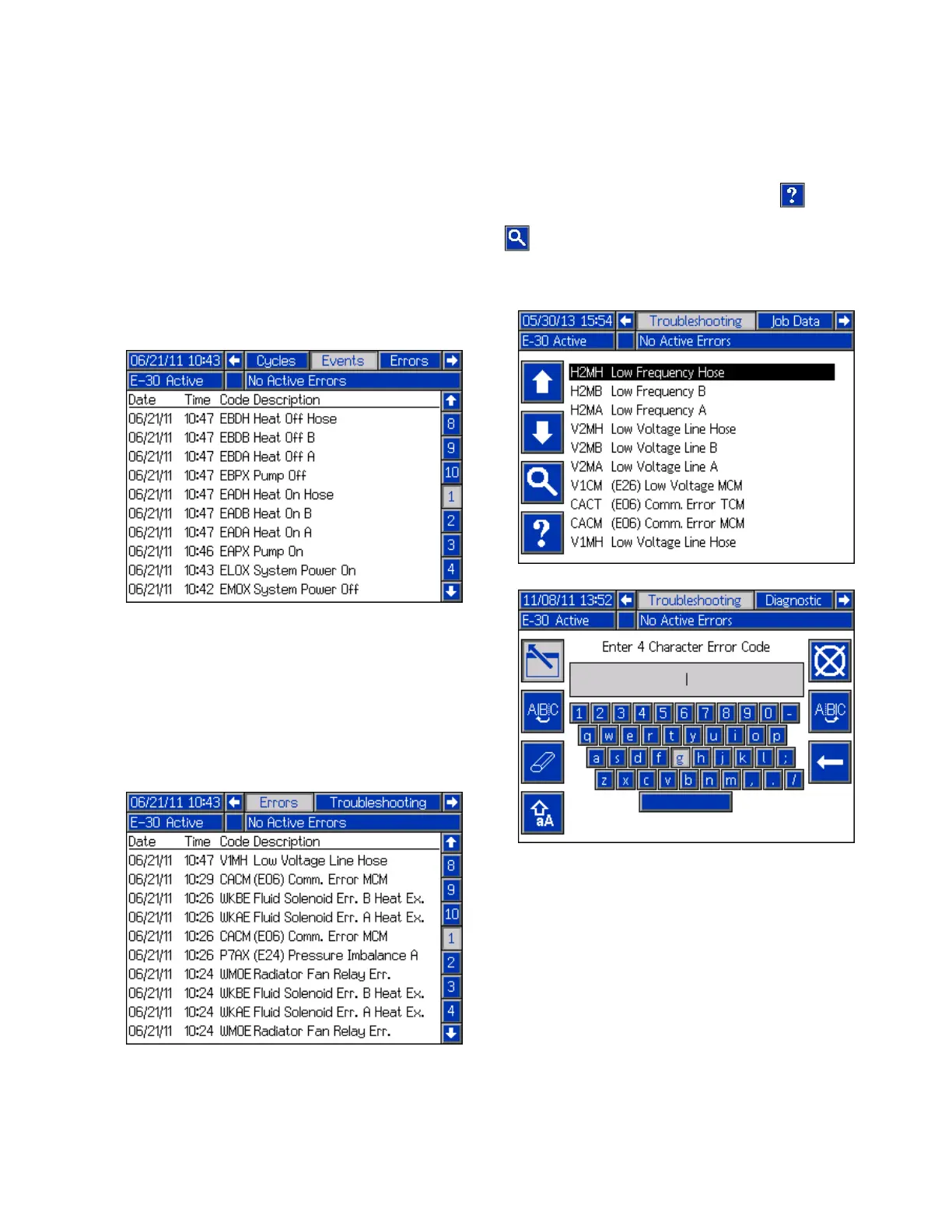

Thisscreenshowsthedate,time,eventcode,
anddescriptionofalleventsthathaveoccurred
onthesystem.Thereare10pages,each
holding10events.The100mostrecentevents
areshown.SeeSystemEvents
foreventcodedescriptions.
SeeErrorCodesandTroubleshooting,page
68forerrorcodedescriptions.
Alleventsanderrorslistedonthisscreencanbe
downloadedonaUSBashdrive.Todownload
logs,seeDownloadProcedure,page69.
Errors Errors
Errors
Screens Screens
Screens
Thisscreenshowsthedate,time,errorcode,
anddescriptionofallerrorsthathaveoccurred
onthesystem.
Allerrorslistedonthisscreencanbe
downloadedonaUSBashdrive.See
DownloadProcedure,page69.
Troubleshooting Troubleshooting
Troubleshooting
Screens Screens
Screens
Thisscreendisplaysthelasttenerrorsthat
occurredonthesystem.Usetheupanddown
arrowstoselectanerrorandpressto
viewtheQRcodefortheselectederror.Press
toaccesstheQRcodescreenforanerror
codethatisnotlistedonthisscreen.See
ErrorCodesandTroubleshooting,page68,for
moreinformationonerrorcodes.
333023U
41
