Parts
Ref Part
Description Qty
501
16U529
HARNESS, breaker
module 1
502
16V515
HARNESS, hose out
1
503
16U522
MODULE, din rail, term
blk, power sup; see
System Circuit Breaker
Module, page 103
1
Ref Part
Description Qty
504
16U526
MODUL E , din rail,
circuit breakers; see
Power Supply and
Terminal Block Module,
page 103
1
505
16U530
MODULE, sys s
urge
protector
1

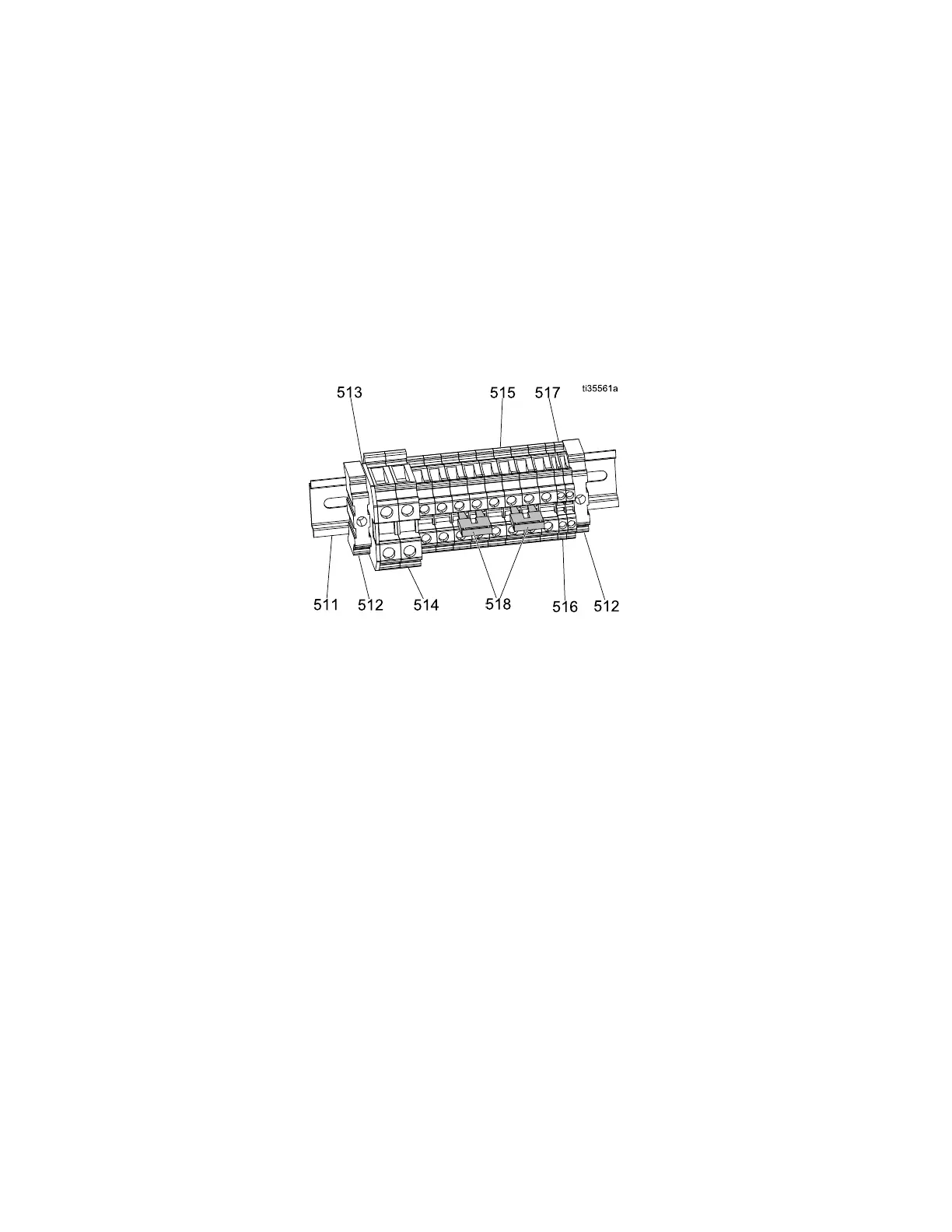

Heater and T
ransformer Terminal Block Module
24U849
Ref Part
Description Qty
511
24T315 RAIL, D
IN; 35 mm x 7.5
mm x 7 in
.
1
512 126811
BLOCK
,clamp,end
2
513 126383
COVER
,end
1
514 126382
BLOCK
, terminal
2
515 120570
BLOCK
, terminal
6
516
24R758
BLOC
K, terminal,
UT-2
.5, red
1
517
24R759
BLOC
K, terminal,
UT-2
.5, black
1
Ref Part
Description Qty
518*
120573
BRIDGE, jumper
2
* Jumpe
rs are used to select the wattage
of the
electric heaters used in your
propo
rtioning system. When the
Integ
rated PowerStation accesso ry is
insta
lled, the jumpers are removed.
102 333024N
