Graco Reactor 2 E-XP2 User Manual

Parts

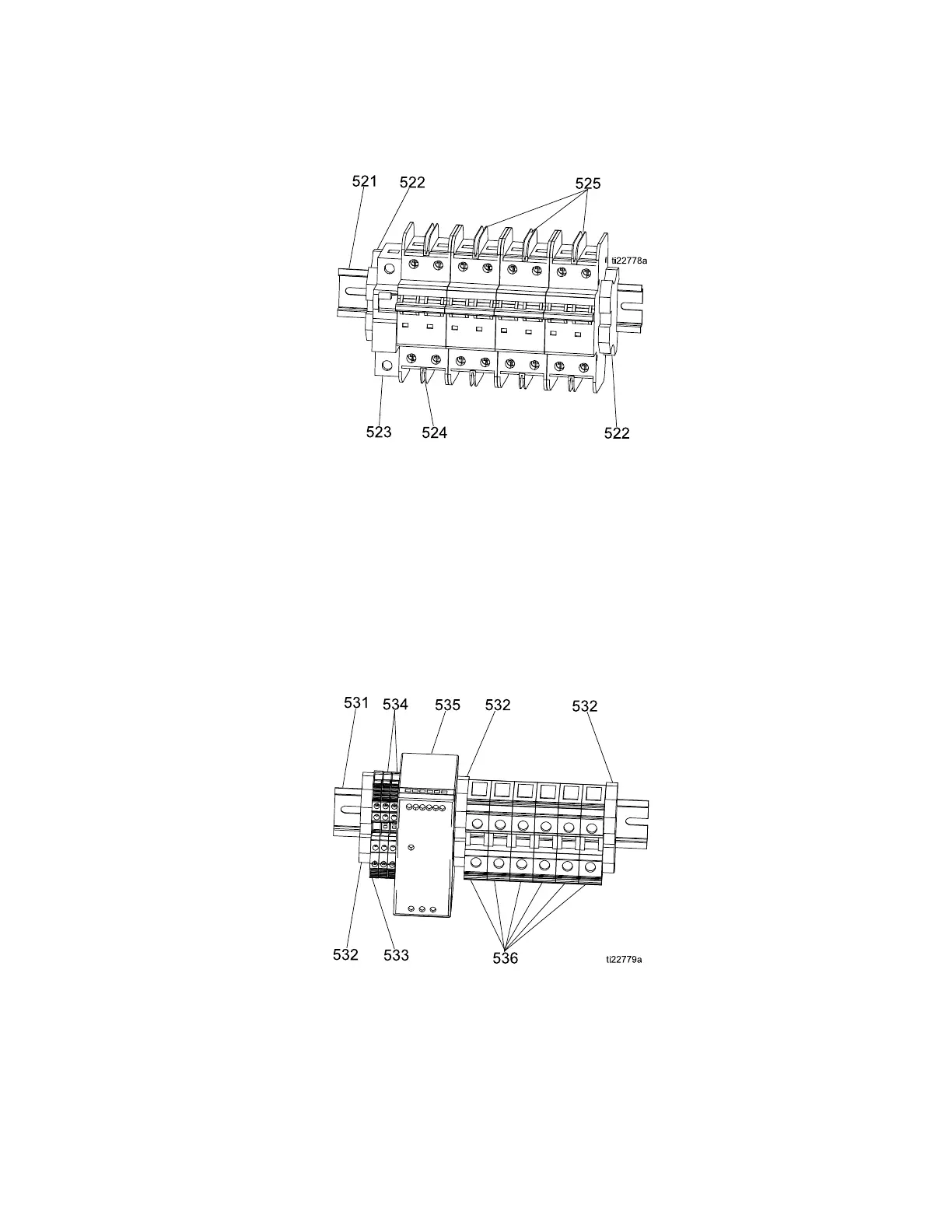

System Circui
t Breaker Module
16U526
Ref Part Description Qty
521 514014
RAIL, DIN; 35 mm x
7.5 mm x 8.625 in.
1
522 120838
TERMINAL, end stop
2
523
17A319
CIRCUIT, breaker, 1
pole, 50A, C Curve
1
Ref Part Description Qty
524
17A314
CIRCUIT, breaker, 2P,
20A, UL489
1
525
17A317
CIRCUIT, breaker, 2P,
40A, UL489
3
Power Supply and Terminal Block Module
16U522
Ref Part Description Qty
531 514014
RAIL,DIN;35mmx7.5
mm x 8.625 in.
1
532 120838
TERMINAL, end stop
3
533
24R722
BLOCK, ter minal PE ,
quad, ABB
1
Ref Part Description Qty
534
24R723
BLOCK, terminal, quad
M4, ABB
2
535 126453
POWER SUPPLY, 24V
1
536
24R724
BLOCK, terminal, U T35
6
333024N 103
