Repair
Installation
1. Apply heavy duty extreme pressure grease
liberally to washers (107, 108, 118), all gears,
and inside drive housing (102).
2. Install one bronze washer (108) in drive housing,
then install steel washers (107, 118) as shown.
3. Install second bronze washer (108) on gear
cluster (104) and insert gear cluster in drive
housing.
Note
Drive housing crankshaft must be in line
with crankshaft at other end of motor.
4. Push drive housing (102) onto motor (101).
Install screws (112) and washers (114).
Note
If bearing housing (103), connecting rod
(105), or pump (106) were removed,
reassemble rod in housing and install
pump, see Install Pump, page 59 .
5. Route cycle counter switch cable (121) around
the motor fan and reattach to housing (102) with
screws (122).
6. Install bearing housing (103), screws (113), and
washers (114). Pumps must be in phase (both at
same position in stroke).
7. Install cover (60) and screws (21).
8. Install motor shield (11) and screws (21).

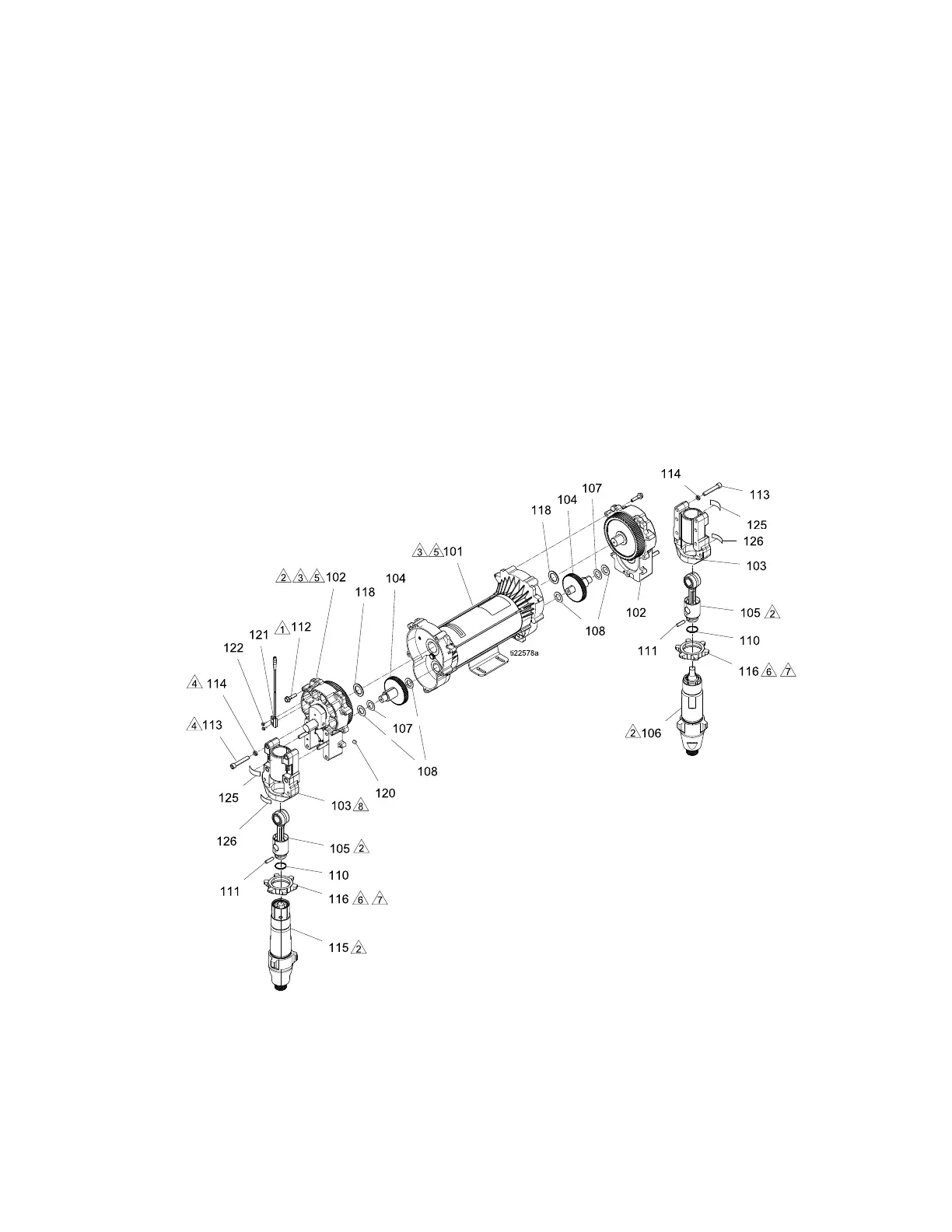

Figure 5
333024N 61
