Graco Reactor 2 H-XP2 User Manual

Models

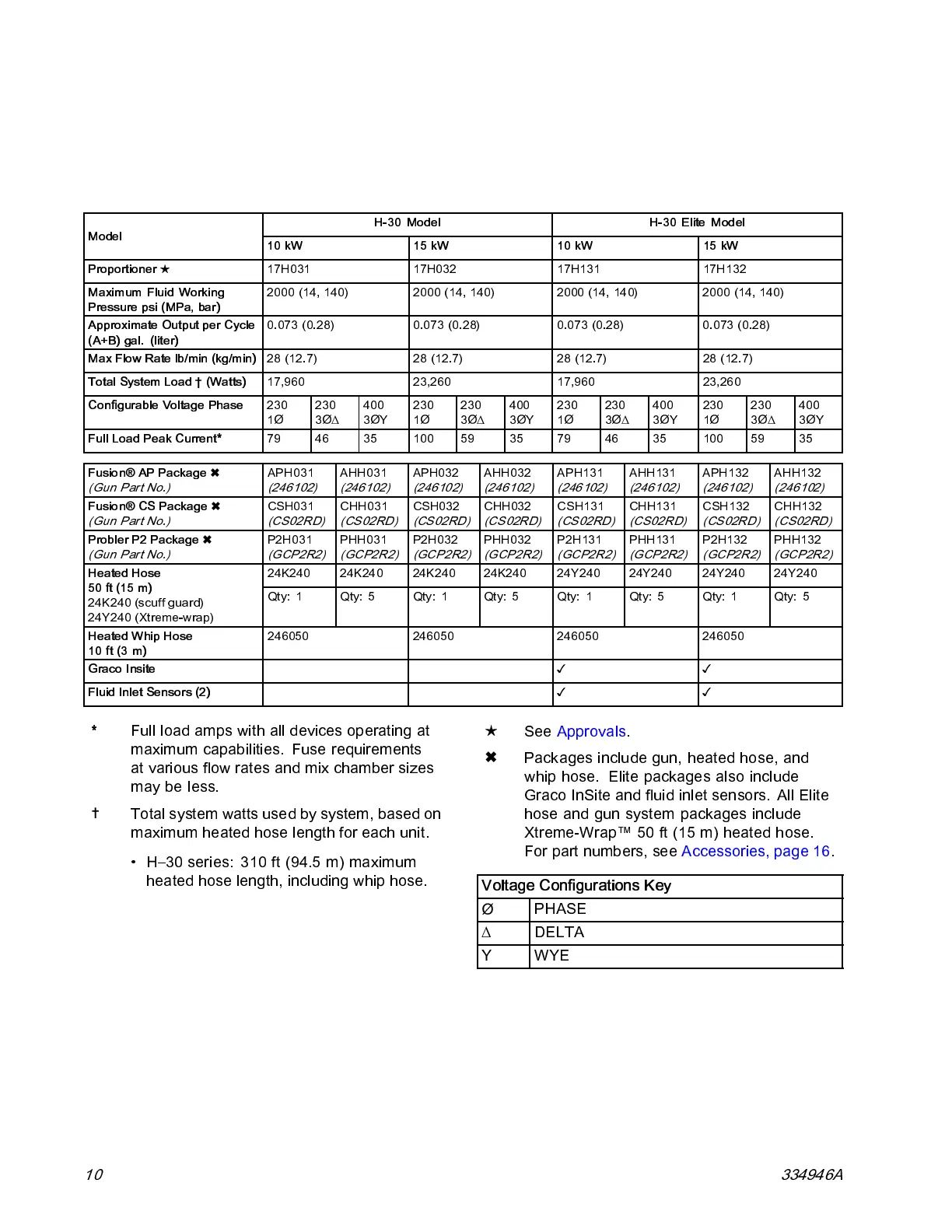

Models
Reactor 2 H-30 and H-30 Elite
H-30 Model H-30 Elite Model
Model
10 kW 15 kW 10 kW 15 kW
Proportioner ★ 17H031 17H032 17H131 17H132
Maximum Fluid Working
Pressure psi (MPa, bar)
2000 (14, 140) 2000 (14, 140) 2000 (14, 14 0) 2000 (14, 140)
Approximate Output per Cycle
(A+B) gal. (liter)
0.073 (0.28) 0.073 (0.28) 0.073 (0.28) 0.073 (0.28)
Max Flow Rate lb/min (kg/min) 28 (12.7) 28 (12.7) 28 (12.7) 28 (12.7)
Total System Load † (Watts)
17,960 23,260 17,960 23,260
Configurable Voltage Phase
230
1Ø
230
3Ø∆
400
3ØY
230
1Ø
230
3Ø∆
400
3ØY
230
1Ø
230
3Ø∆
400
3ØY
230
1Ø
230
3Ø∆
400
3ØY
Full Load Peak Current*
79 46 35 100 59 35 79 46 35 100 59 35
Fusion ® AP Package 
(Gun P art No.)
APH031
(246102)
AHH031
(246102)
APH032
(246102)
AHH032
(246102)
APH131
(246102)
AHH131
(246102)
APH132
(246102)
AHH132
(246102)
Fusion ® CS Package 
(Gun P art No.)
CSH031
(CS02RD)
CHH031
(CS02RD)
CSH032
(CS02RD)
CHH032
(CS02RD)
CSH131
(CS02RD)
CHH131
(CS02RD)
CSH132
(CS02RD)
CHH132
(CS02RD)
Probler P2 Package 
(Gun P art No.)
P2H031
(GCP2R2)
PHH031
(GCP2R2)
P2H032
(GCP2R2)
PHH032
(GCP2R2)
P2H131
(GCP2R2)
PHH131
(GCP2R2)
P2H132
(GCP2R2)
PHH132
(GCP2R2)
24K240 24K240 24K240 24K240 24Y240 24Y240 24Y240 24Y240 Heated Hose
50 ft (15 m)
24K240 (scuff guard)
24Y240 (Xtreme-wrap)
Qty: 1 Qty: 5 Qty: 1 Qty: 5 Qty: 1 Qty: 5 Qty: 1 Qty: 5
Heated Whip Hose
10 ft (3 m)
246050 246050 246050 246050
Graco Insite
✓✓
Fluid Inlet Sensors (2)
✓✓
*
Full load amps with all devices operating at
max imum capabilities. Fuse requirements
at various flow rates and mix chamber sizes
may be less.

Total system watts used by system, based on
max imum heated hose length for each unit.
• H–30 series: 310 ft (94.5 m) maximum
heated hose length, including whip hose.
★
See Approvals.

Packages include gun, heated hose, and
whip hose. Elite packa ges also incl ude
Graco InSite and fluid inlet sensors. All Elite
hose and gun system packages include
Xtreme-Wrap™ 50 ft (15 m) heated hose.
For part numbers, see Accessories, page 16.
Voltage Configurations Key
Ø
PHASE
∆
DELTA
YWYE
10 334946A
