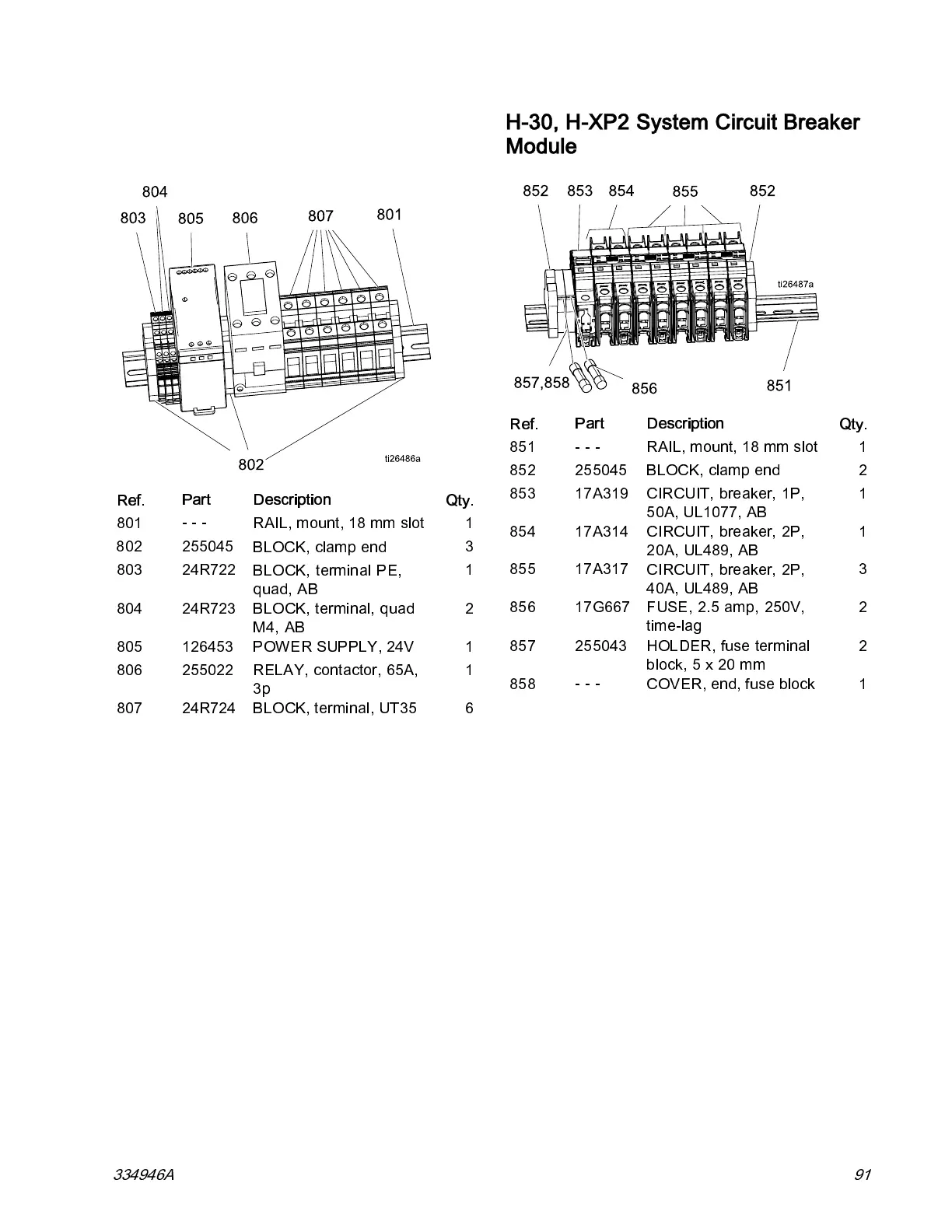

Parts
H-30, H-XP2 Power Supply and
Terminal Block Module
Ref.
Part Description
Qty.
801
---
RAIL,mount,18 mm slot 1
802 255045
BLOCK, clamp end
3
803 24R722
BLOCK, terminal PE,
quad, AB
1
804 24R723
BLOCK, terminal, quad
M4, AB
2
805 126453
POWER SUPPLY, 24V
1
806 255022 RELAY , contactor, 65A,
3p
1
807 24R724
BLOCK, terminal, UT35
6
H-30, H-XP2 System Circuit Breaker
Module
Ref.
Part Descript i o n
Qty.
851
---
RAIL,mount,18mmslot 1
852 255045
BLOCK, clamp end
2
853 17A319
CIRCUIT, breaker, 1P,
50A, UL1077, AB
1
854 17A314
CIRCUIT, breaker, 2P,
20A, UL489, AB
1
855 17A317
CIRCUIT, breaker, 2P,
40A, UL489, AB
3
856
17G667 FUSE, 2.5 amp, 250V,
time-lag
2
857 255043
HOLDER, fuse terminal
block, 5 x 20 mm
2
858
---
COVER, end, fuse block
1
334946A 91
