Graco Reactor 2 H-XP2 User Manual

Parts

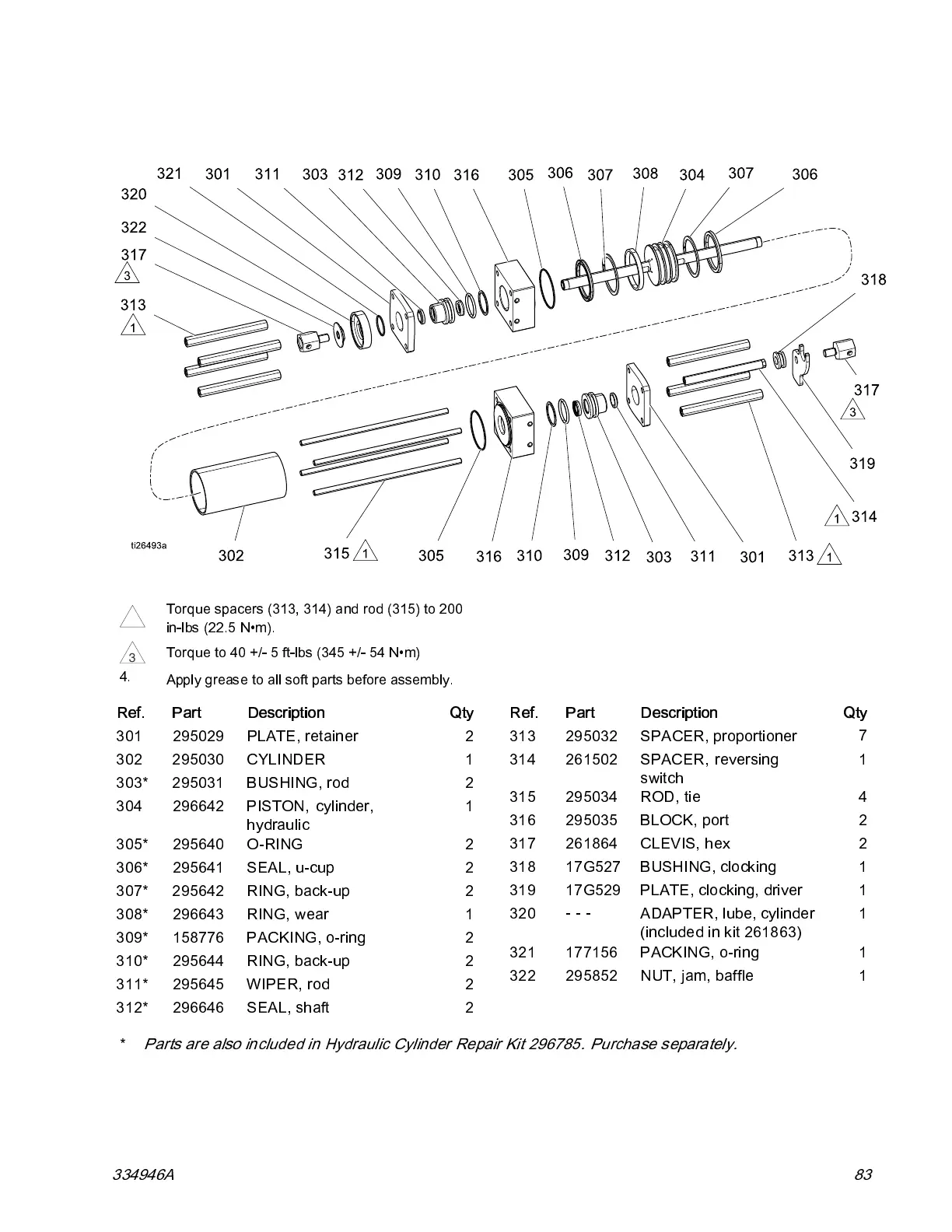

Hydraulic Cylinder Parts, 17G499
1
Torque spacers (313, 314) and rod (315) to 200
in-lbs (22.5 N•m).
3
Torque to 40 +/- 5 ft-lbs (345 +/- 54 N•m)
4.
Apply grease to all soft parts before assembly.
Ref.
Part Description
Qty
301 295029 PLATE, retainer 2
302 295030
CYLINDER
1
303*
295031
BUSHING, rod
2
304 296642
PISTON, cylinder,
hydraulic
1
305* 2956
40
O-RING 2
306* 2956
41
SEAL, u-cup 2
307* 2956
42
RING, back-up 2
308* 296
643
RING, wear 1
309* 158
776
PACK ING, o-ring 2
310* 295
644
RING, back-up 2
311* 295
645
WIP
ER, rod
2
312* 29
6646
SEAL, shaft 2
Ref.
Part Descr i pt i on
Qty
313 295032
SPACER , propo rtion er
7
314 261502
SPACER , revers ing
switch
1
315 29503
4
ROD, tie 4
316 2950
35
BLOCK, port 2
317 2618
64
CLEVIS, hex 2
318 17G527 BUSHING, clocking 1
319 17G529 PLAT
E, clocking, driver
1
320
---
ADAP
TER, lube, cylinder
(in
cluded in kit 261863)
1
321 177156
PACKING , o-ring
1
322 295852
NUT,jam,baffle
1
* Parts are also included in Hydraulic Cylinder Repair Kit 296785. Purchase separately.
334946A 83
