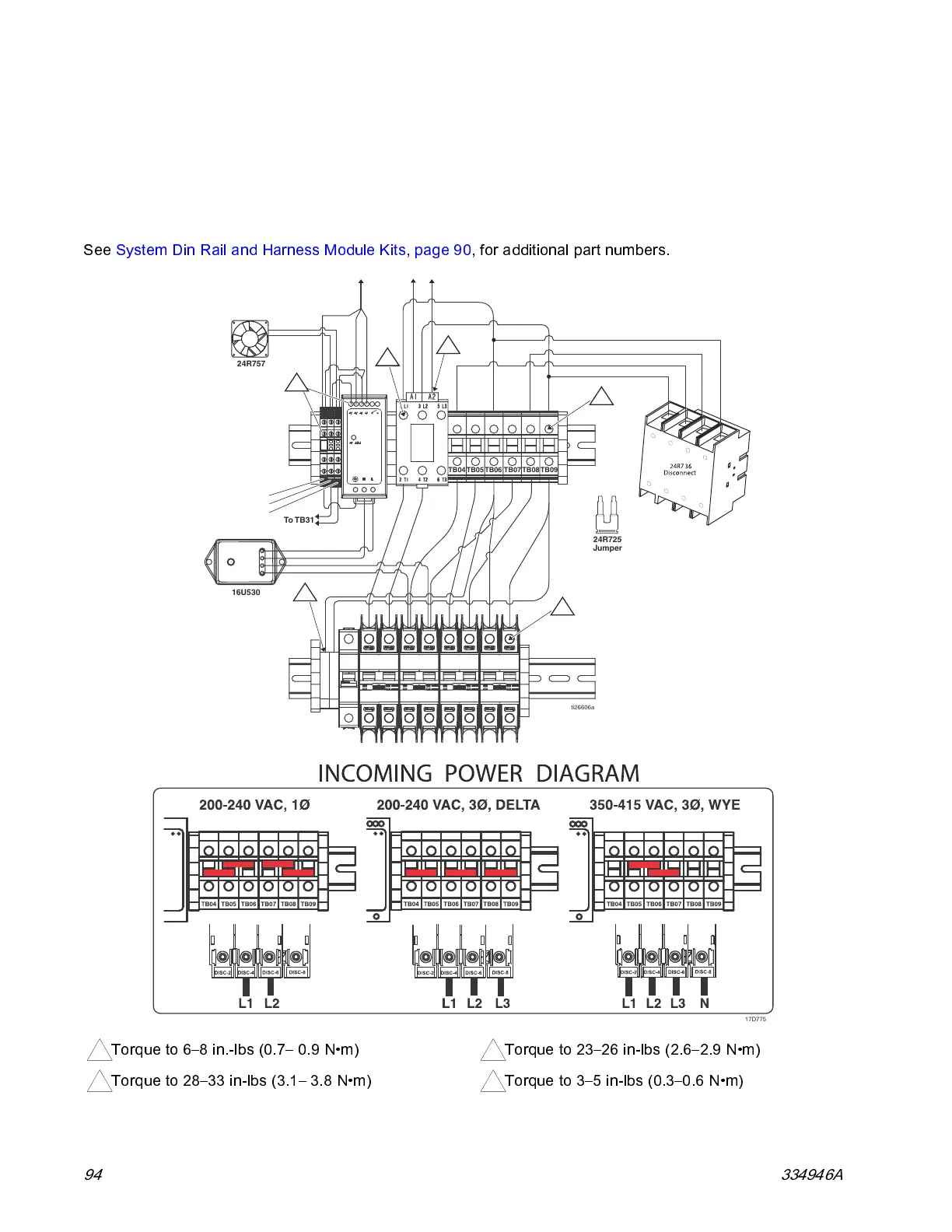

H-30, H-XP2 DIN Assembly
Schematic
See System Din Rail and Harness Module Kits, page 90, for additional part numbers.
ti26606a
17D775
TB04 TB05 TB06 TB07 TB08 TB09
24R725
Jumper
16U530
24R757
To TB31
80mm
Enclosure
Fan
CB11 CB12 CB13 CB14 CB15
HOSE
MOTOR A HEAT B HEAT TRANS
CT01
POWER
SUPPLY
F12 F11
TB03
TB02
TB01
To HCM To HCM
24R735
BLU BRN
BLK
2
3
4
3
1
1
1
Torque to 6–8 in.-lbs (0.7– 0.9 N•m)
2
Torque to 28–33 in-lbs (3.1– 3.8 N•m)
3
Torque to 23–26 in-lbs (2.6–2.9 N•m)
4
Torque to 3–5 in-lbs (0.3–0.6 N•m)
