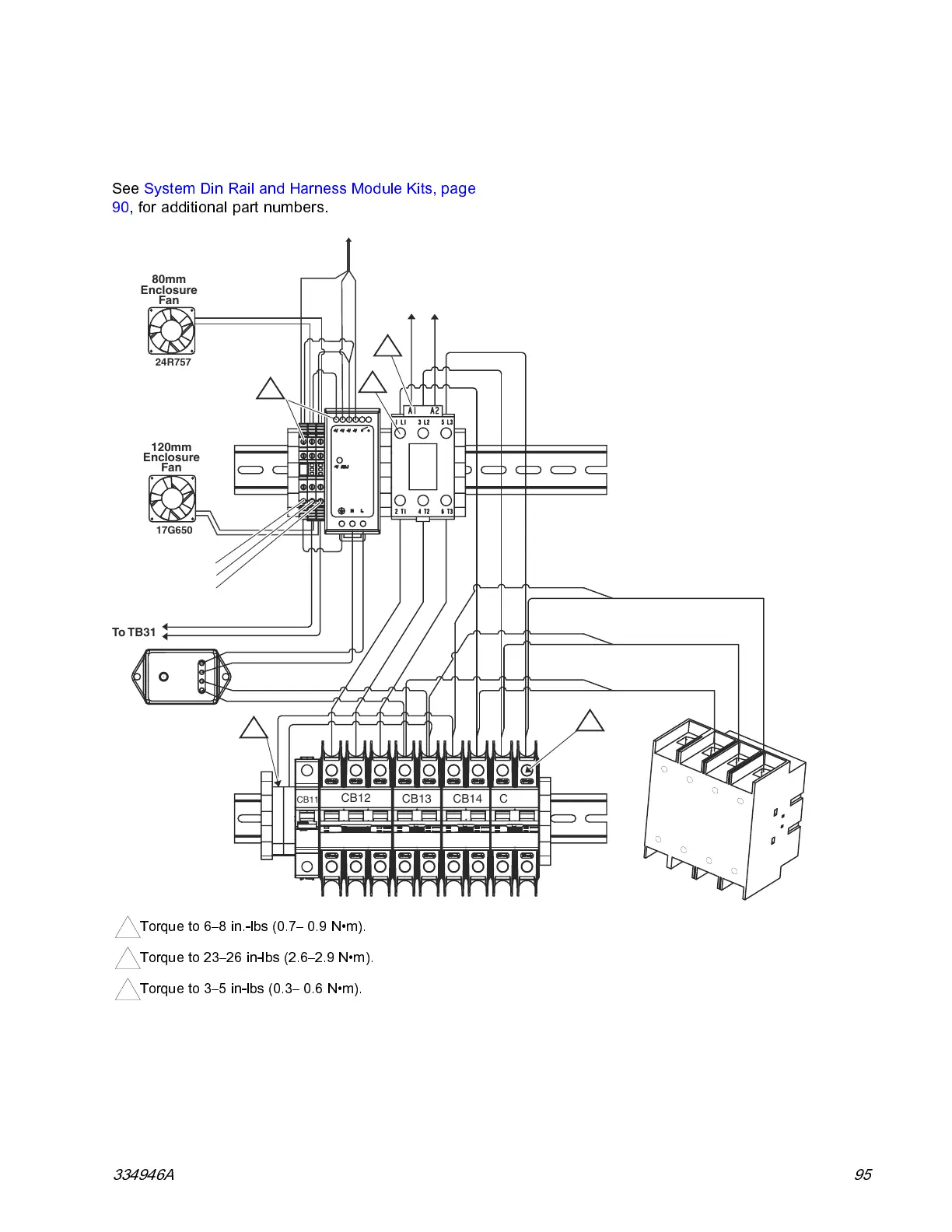

Electrical Schematics

H-40, H-50, H-XP3 DIN Assembly

Schematics (230V)

See System Din Rail and Harness Module Kits, page

90, for additional part numbers.

24R757

To TB31

17G650

120mm

Enclosure

Fan

80mm

Enclosure

Fan

CB11

CB12

CB13

CB14

CB15

HOSE

MOTOR

A HEAT

B HEAT

TRANS

CT01

POWER

SUPPLY

F12

F11

TB03

TB02

TB01

To HCM

24R735

BLU

BRN

BLK

24R736

Disconnect

ti26609a

16U530

Torque to 6–8 in.-lbs (0.7– 0.9 N•m).

Torque to 23–26 in-lbs (2.6–2.9 N•m).

Torque to 3–5 in-lbs (0.3– 0.6 N•m).

334946A 95

Table of Contents2
Warnings3
Important Isocyanate Information7
E L a T E D M a N U a L S9
M O D E L10
T R a N S F O R M E R P R I M a R y C H E C64
T R a N S F O R M E R S E C O N D a R y C H E C64
A C C E S S O R I E67
E L I T E P R O P O R T I O N E R67
P R O P O R T I O N E R P a R T68
P R O P O R T I O N E R a S S E M B L y P a R T82
H y D R a U L I C C y L I N D E R P a R T83
E L E C T R I C a L E N C L O S U R84
F L U S H I N84
C H a N G E L U B R I C a N84
T E R M I N a L B L O C K M O D U L91
E L E C T R I C a L S C H E M a T I C94
T E C H N I C a L S P E C I Fi C a T I O N100
