Parts

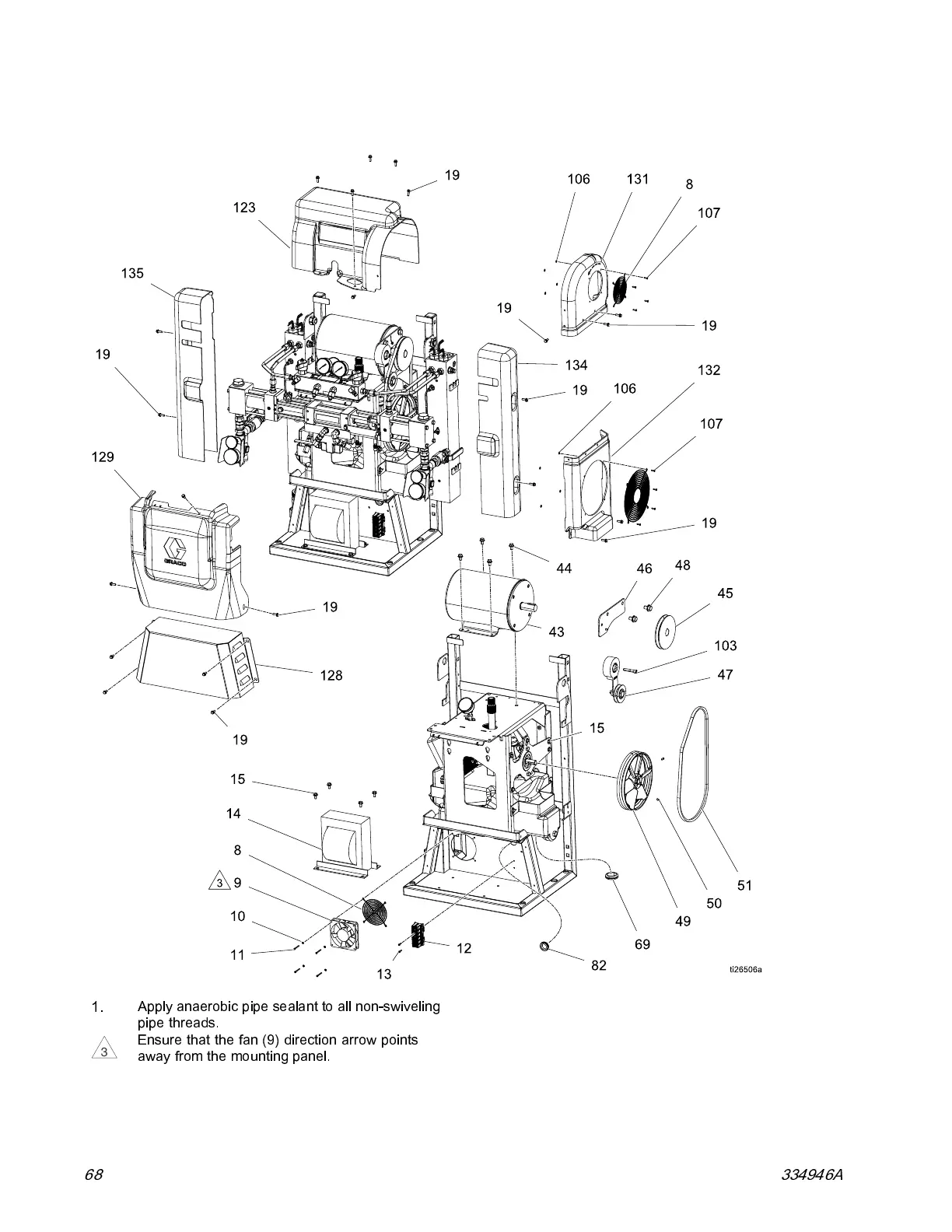

Proportioner Parts
1.
Apply anaerobic pipe sealant to all non-swiveling
pipe threads.
3
Ensure that the fan (9) direction arrow points
away from the mounting panel.
68 334946A
