Graco Reactor 2 H-XP2 User Manual

Parts

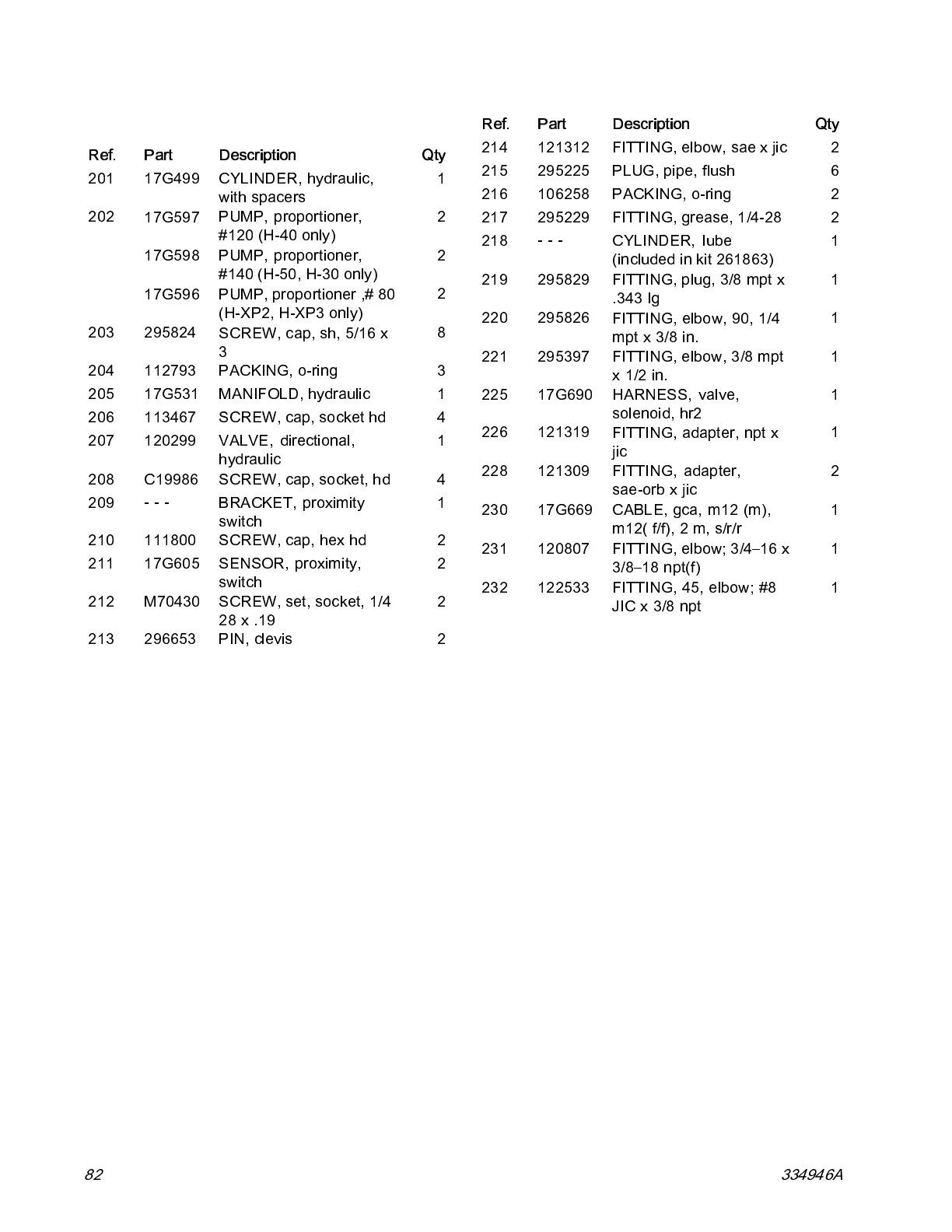

Proportioner Assembly Parts
Ref.
Part Description
Qty
201
17G499 CYLINDE R, hydraulic,
with spacers
1
17G597
PUMP, proporti oner,
#120 (H-40 only)
2
17G598
PUMP, proporti oner,
#140 (H-50, H-30 only)
2
202
17G 596 PUMP, proportioner ,# 80
(H-XP2, H-XP3 only)
2
203 295824
SCREW, cap, sh, 5/16 x
3
8
204 112793
PACKIN G, o-ring
3
205
17G531 MANIFOLD, hydraulic
1
206 113467
SCREW, cap, socket hd
4
207 1 202 99 V A LVE , d irec tional ,
hydraulic
1
208
C19986 SCREW, cap, socket, hd
4
209
---
BRACKET, proximity
switch
1
210 111800 SCREW, cap, hex hd 2
211 17G60 5 SENSOR, proxim ity,
switch
2
212 M70430
SCREW, set, socket, 1/4
28 x .19
2
213 296653 PIN, clevis 2
Ref.
Part Description
Qty
214 121312
FITTING, elbow, sae x jic
2
215 295225
PLUG, pipe, flush
6
216 106258
PACKING, o-ring
2
217 295229
FITTING, grease, 1/4-28
2
218
---
CYLINDER, lube
(includedinkit261863)
1
219 295829 FITTING, plug, 3/8 mpt x
.343 lg
1
220 295826
FITTING, elbow, 90, 1/4
mpt x 3/8 in.
1
221 295397
FITTING, elbow, 3/8 mpt
x1/2in.
1
225
17G690 HA RNE S S, valv e,
solenoid, hr2
1
226 121319
FITTING, adapter, npt x
jic
1
228 121309
FITTING, adapter,
sae-orb x jic
2
230
17G669 CABLE, gca, m12 (m),
m12( f/f), 2 m, s/r/r
1
231 120807
FITTING, elb ow; 3/4–16 x
3/8–18 npt(f)
1
232 122533
FITTING, 45, elbow; #8
JIC x 3/8 npt
1
82 334946A

Graco Reactor 2 H-XP2 Specifications

General

Brand	Graco
Model	Reactor 2 H-XP2
Category	Paint Sprayer
Language	English
