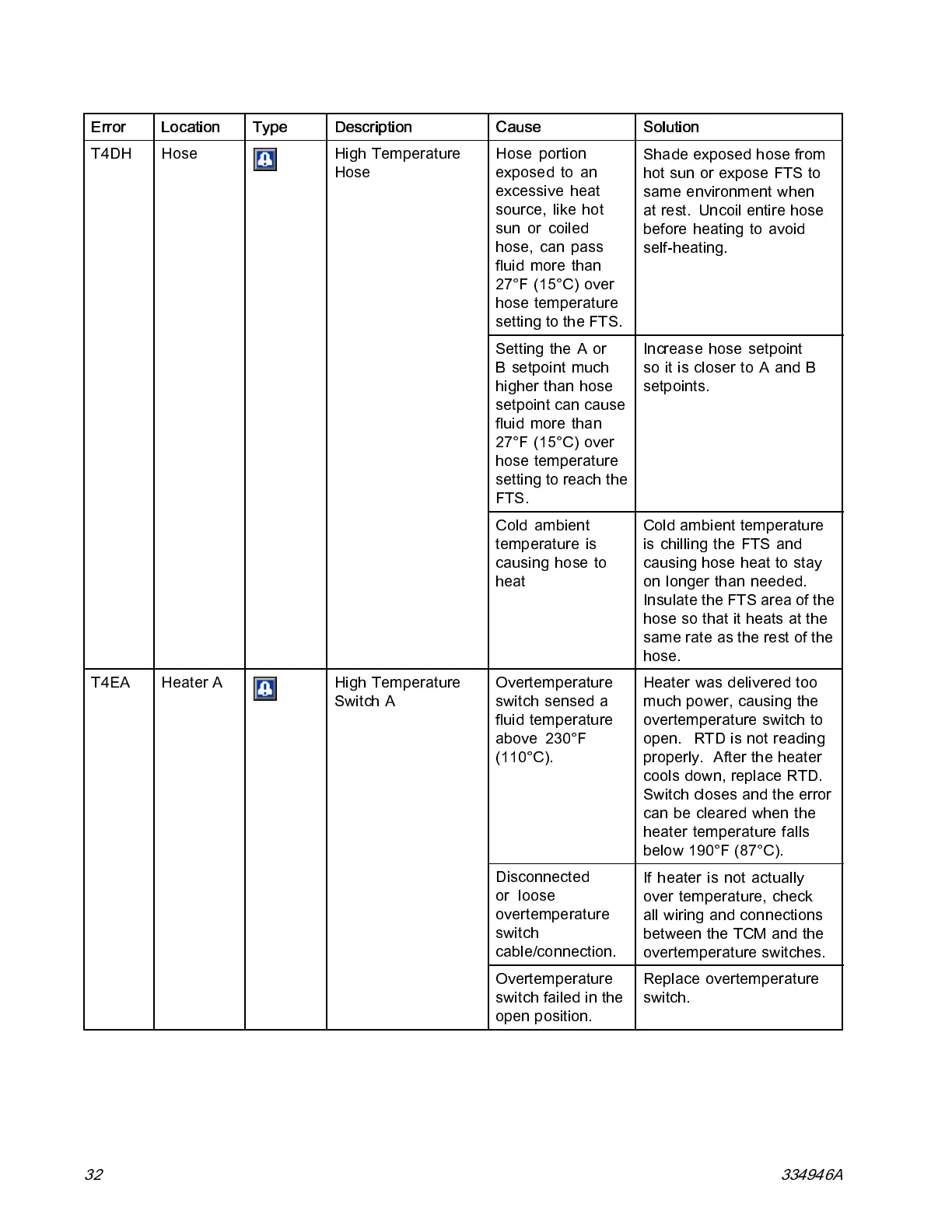

Troubleshooting
Error Location Type Description
Cause Solution
Hose portion
exposed to an
excessive heat
source, like hot
sun or coiled
hose, can pass
fluid more than
27°F (15°C) over
hose temperature
settingtotheFTS.
Shade exposed hose from
hot sun or expose FTS to
same environment when
at rest. Uncoil entire hose
before heating to avoid
self-heating.
Setting the A or
B setpoint much
higher than hose
setpoint can cause
fluid more than
27°F (15°C) over
hose temperature
settingtoreachthe
FTS.
Increase hose setpoint
so it is closer to A and B
setpoints.
T4DH Hose High Temperature
Hose
Cold ambient
temperature is
causing hose to
heat
Cold ambient temperature
is chilling the FTS and
causing hose heat to stay
on longer than needed.
Insulate the FTS area of the
hose so that it heats at the
same rate as the rest of the
hose.
Overtemperature
switch sensed a
fluid temperature
above 230°F
(110°C).
Heater was delivered too
much power, causing the
overtemperature switch to
open. RTD is not reading
properly. After the heater
cools down, replace RTD.
Switch closes and the error
canbeclearedwhenthe
heater temperature falls
below 190°F (87°C).
Disconnected
or loose
overtemperature
switch
cable/connection.
If heater is not actually
over temperature, check
all wiring and connections
between the TCM and the
overtemperature switches.
T4EA Heater A High Temperature
Switch A
Overtemperature
switch failed in the
open position.
Replace overtemperature
switch.
32 334946A
