Graco Reactor 2 H-XP2 User Manual

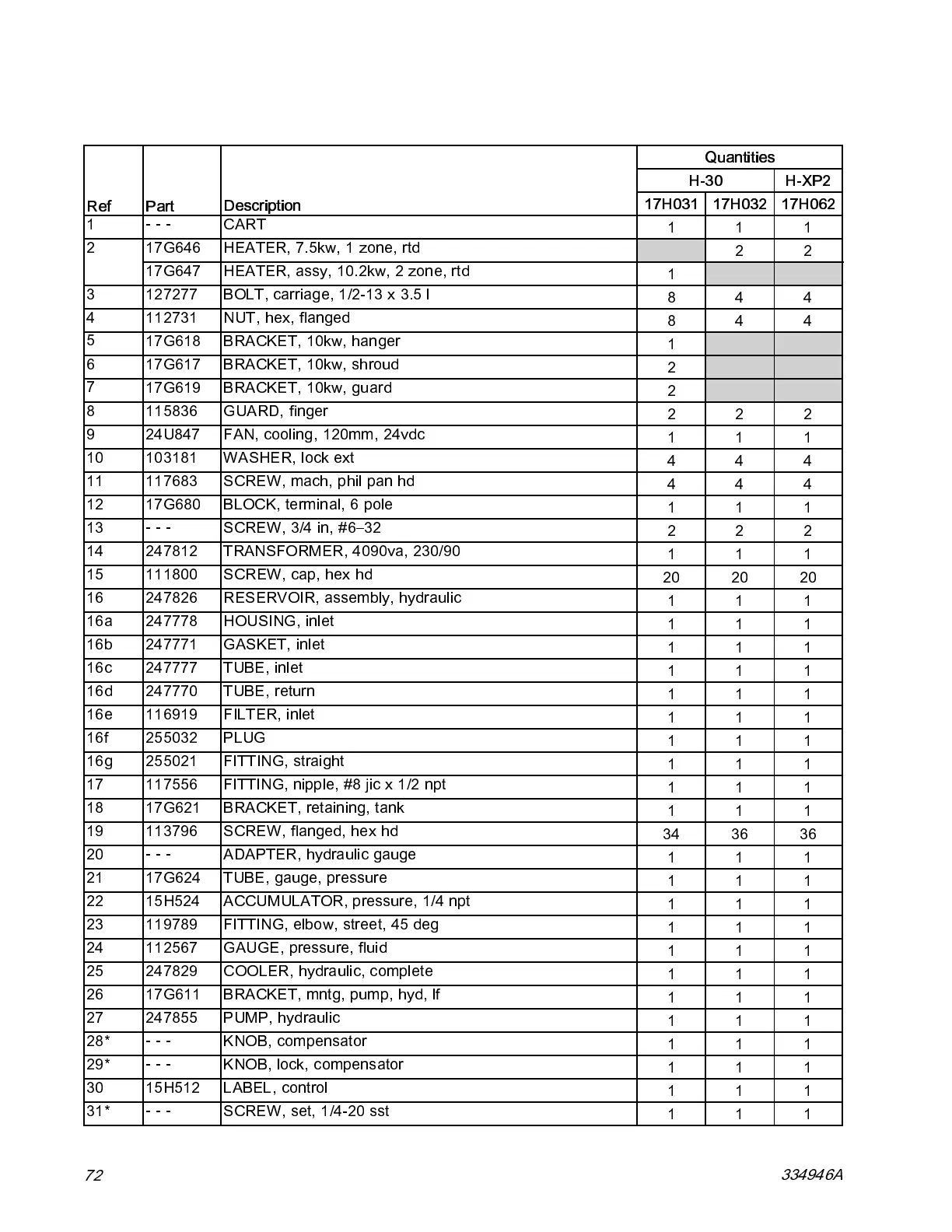

Parts
H-30, H-XP2
Quantities
H-30 H-XP2
Ref Part
Description
17H031 17H032 17H062
1
---
CART
111
17G646
HEATER, 7.5kw, 1 zone, rtd
22
2
17G647
HEATER, assy, 10.2kw, 2 zo ne, rtd
1
3 127277
BO LT, carriage, 1/2-13 x 3.5 l
844
4 112731
NUT, hex, flanged
844
5
17G618 BRACKE T, 10kw, hanger
1
6
17G617 BRACKE T, 10kw, shroud
2
7
17G619 BRACKE T, 10kw, guard
2
8 115836
GUARD, fin ger
222
9 24U847 FAN, c ool in g, 120mm, 24vd c
111
10 103181
WASHER, lock ext
444
11 117683
SCREW, mach, phil pan hd
444
12
17G680 BLO CK, terminal, 6 pole
111
13
---
SCREW, 3/4 in, #6–32
222
14 247812
TRANSFO RME R, 4090va, 230/90
111
15 111800
SCREW, cap, hex hd
20 20 20
16 247826
RESERVOIR, assembly, hydraulic
111
16a 247778
HOUSING, inlet
111
16b 247771
GASKET, inlet
111
16c 247777 TUBE, inlet
111
16d 247770 TUBE , return
111
16e 116919 FILTER, inlet
111
16f
255032
PLUG
111
16g 255021
FITTING, straight
111
17 117556
FITTING, nipple, #8 jic x 1/2 npt
111
18
17G621 BRACKE T, retaining , tank
111
19 113796
SCREW, flanged, hex hd
34 36 36
20
---
ADAPTER, hydraulic gauge
111
21
17G624
TUBE, gauge, pressure
111
22 15H524
ACCUMULA TO R, pressure, 1/4 npt
111
23 119789
FITTING, elbow, street, 45 deg
111
24 112567
GAUG E, press ure, flui d
111
25 247829
COOLER,hydraulic,complete
111
26
17G611 BRACKET, mntg, pump, hyd, lf
111
27 247855 PUM P , hydraulic
111
28*
---
KNO B, compensator
111
29*
---
KNOB, lock, compensator
111
30 15H512 LABEL, control
111
31*
---
SCREW, set, 1/4-20 sst
111
72
334946A
