Parts

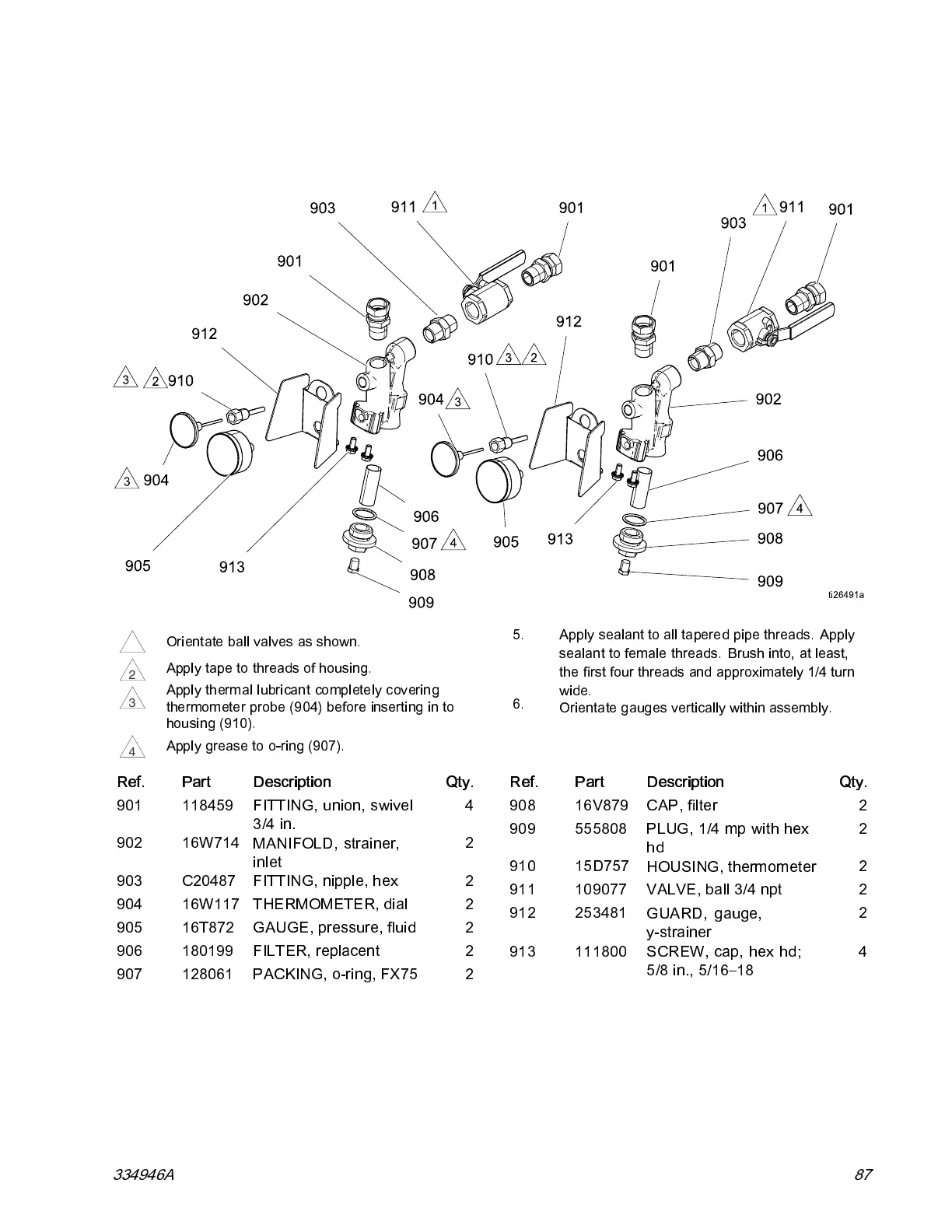

Fluid Inlet Kits
17G644, Standard
1
Orientate ball valves as shown.
2
Apply tape to threads of housing.
3
Apply thermal lubricant completely covering
thermometer probe (904) before inserting in to
housing (910).
4
Apply grease to o-ring (907).
5. Apply sealant to all tapered pipe threads. Apply
sealant to female threads. Brush into, at least,
the first four threads and approximately 1/4 turn
wide.
6.
Orientate gauges vertically within assembly.
Ref.
Part Description
Qty.
901 118459
FITTING, union, swivel
3/4 in.
4
902 16W714
MANIFOLD, strainer,
inlet
2
903
C20487 FITTING, nipple, hex
2
904 16W117
THERMOMETER, dial
2
905 16T872
GAUG E, pres s ure, fl uid
2
906 180199 FILTER, rep lacent 2
907 128061
PAC KING, o-ring, FX75
2
Ref.
Part Descript i o n
Qty.
908 16V879
CAP, filter
2
909 555808
PLUG, 1/4 mp with hex
hd
2
910 15D757
HOUSING, thermometer
2
911 109077 VALVE, ball 3/4 npt 2
912 253481
GUARD, gauge,
y-strainer
2
913 111800
SCREW, cap, hex hd;
5/8 in., 5/16–18
4
334946A 87
