AdvancedDisplayModule(ADM)Operation

Events Events

Events

Screens Screens

Screens

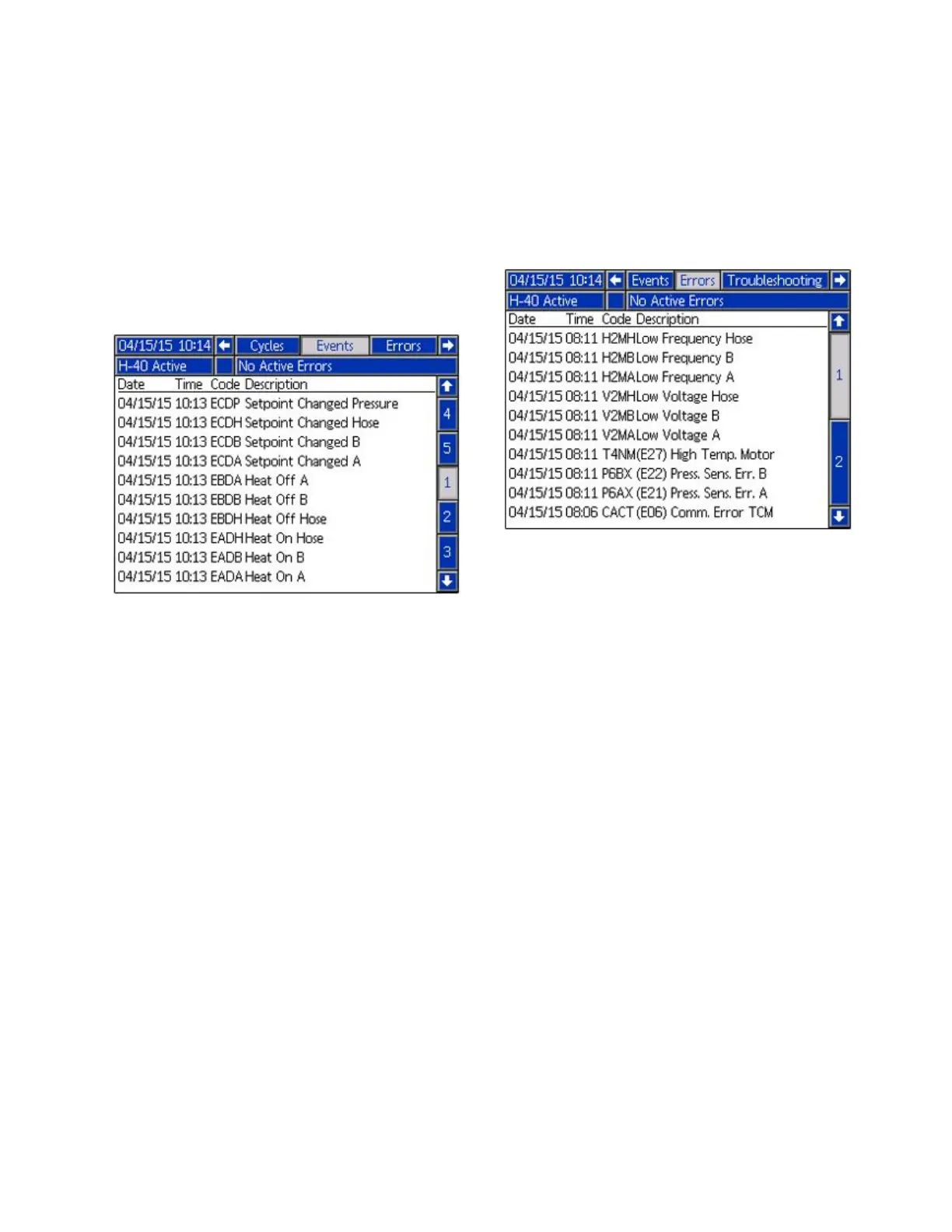

Thisscreenshowsthedate,time,eventcode,and

descriptionofalleventsthathaveoccurredon

thesystem.Thereare10pages,eachholding10

events.The100mostrecenteventsareshown.See

SystemEvents,page46foreventcodedescriptions.

SeeErrorCodesandTroubleshooting,page68for

errorcodedescriptions.

Alleventsanderrorslistedonthisscreencanbe

downloadedonaUSB󰘱ashdrive.Todownloadlogs,

seeDownloadProcedure,page69.

Errors Errors

Errors

Screens Screens

Screens

Thisscreenshowsthedate,time,errorcode,and

descriptionofallerrorsthathaveoccurredonthe

system.

Allerrorslistedonthisscreencanbedownloaded

onaUSB󰘱ashdrive.Todownloadlogs,see

DownloadProcedure,page69.
