Graco Reactor 2 H-XP3 User Manual

AdvancedDisplayModule(ADM)Operation

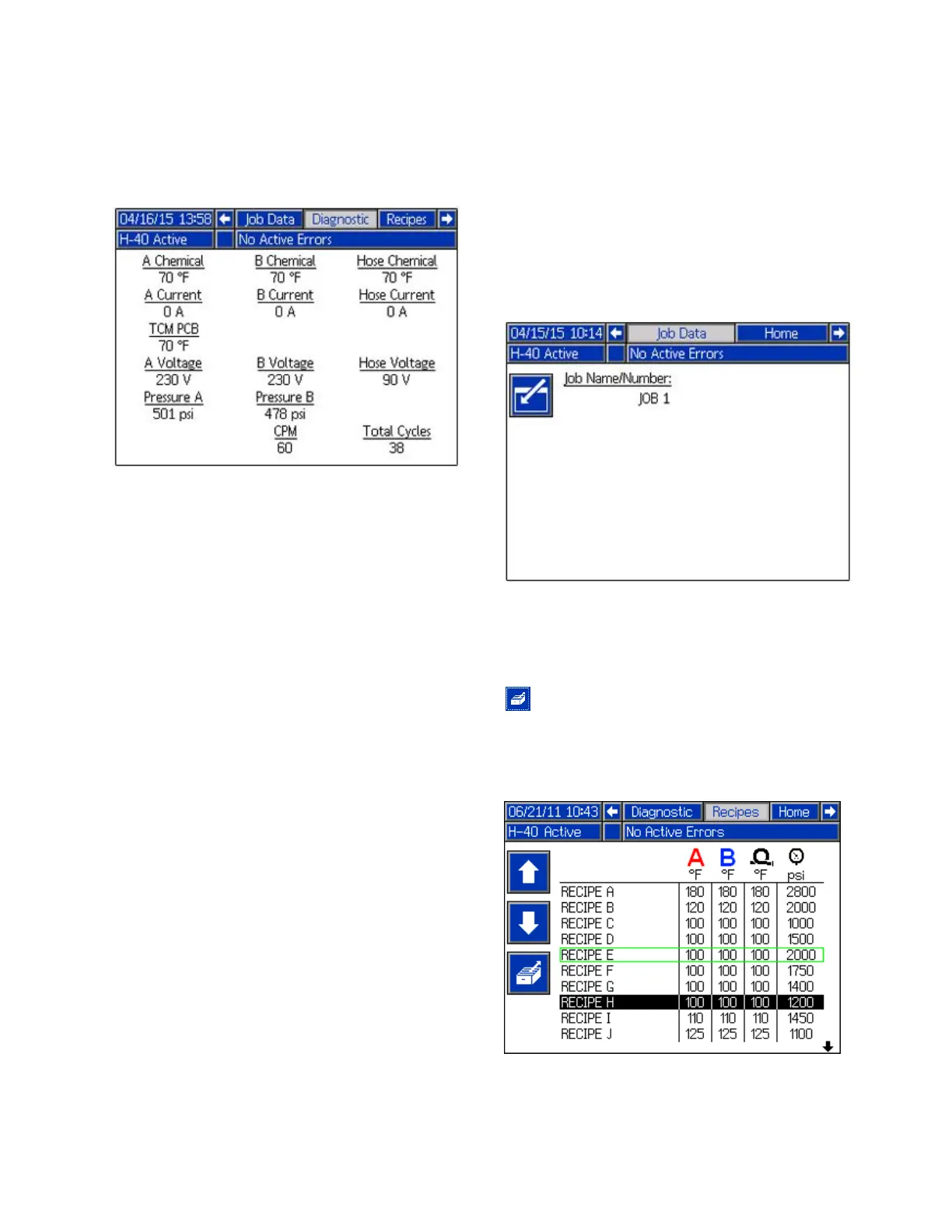

Diagnostic Diagnostic
Diagnostic
Screen Screen
Screen
Usethisscreentoviewinformationforallsystem
components.NOTE:Ifnotvisible,thisscreenmay
beontheSetupSystemsscreen(seeSetupMode).
Thefollowinginformationisdisplayed:
Temperature Temperature
Temperature
•AChemical
•BChemical
•HoseChemical
•TCMPCB—temperaturecontrolmodule
temperature
Amps Amps
Amps
•ACurrent(0–25Afor10kWheater,0–38Afor15
kWheater,0–51Afor20kWheater)
•BCurrent(0–25Afor10kWheater,0–38Afor15
kWheater,0–51Afor20kWheater)
•HoseCurrent(0–45Atypical)
Volts Volts
Volts
•AVoltage—VoltagesuppliedtoAheater(195–240
Vtypical)
•BVoltage—VoltagesuppliedtoBheater(195–240
Vtypical)
•HoseVoltage(H-30andH-XP2:90V;H-40,H-50,
HXP3:120V)
Pressure Pressure
Pressure
•PressureA—chemical
•PressureB—chemical
Cycles Cycles
Cycles
•CPM—cyclesperminute
•TotalCycles—lifetimecycles
NOTE: NOTE:
NOTE:
Maximumvaluesbasedonmaximuminput
voltage.Valueswilllowerwithlowervoltage.
Job Job
Job
Data Data
Data
Screen Screen
Screen
Usethisscreentoenterajobnameornumber.
Recipes Recipes
Recipes
Screen Screen
Screen
Usethisscreentoselectanenabledrecipe.Usethe
upanddownarrowstohighlightarecipeandpress
toload.Thecurrentlyloadedrecipeisoutlined
byagreenbox.
NOTE: NOTE:
NOTE:
Thisscreenwillnotdisplayiftherearenot
anyenabledrecipes.Toenableordisablerecipes,
seeRecipes,page39.
334945J 45
