Spraying

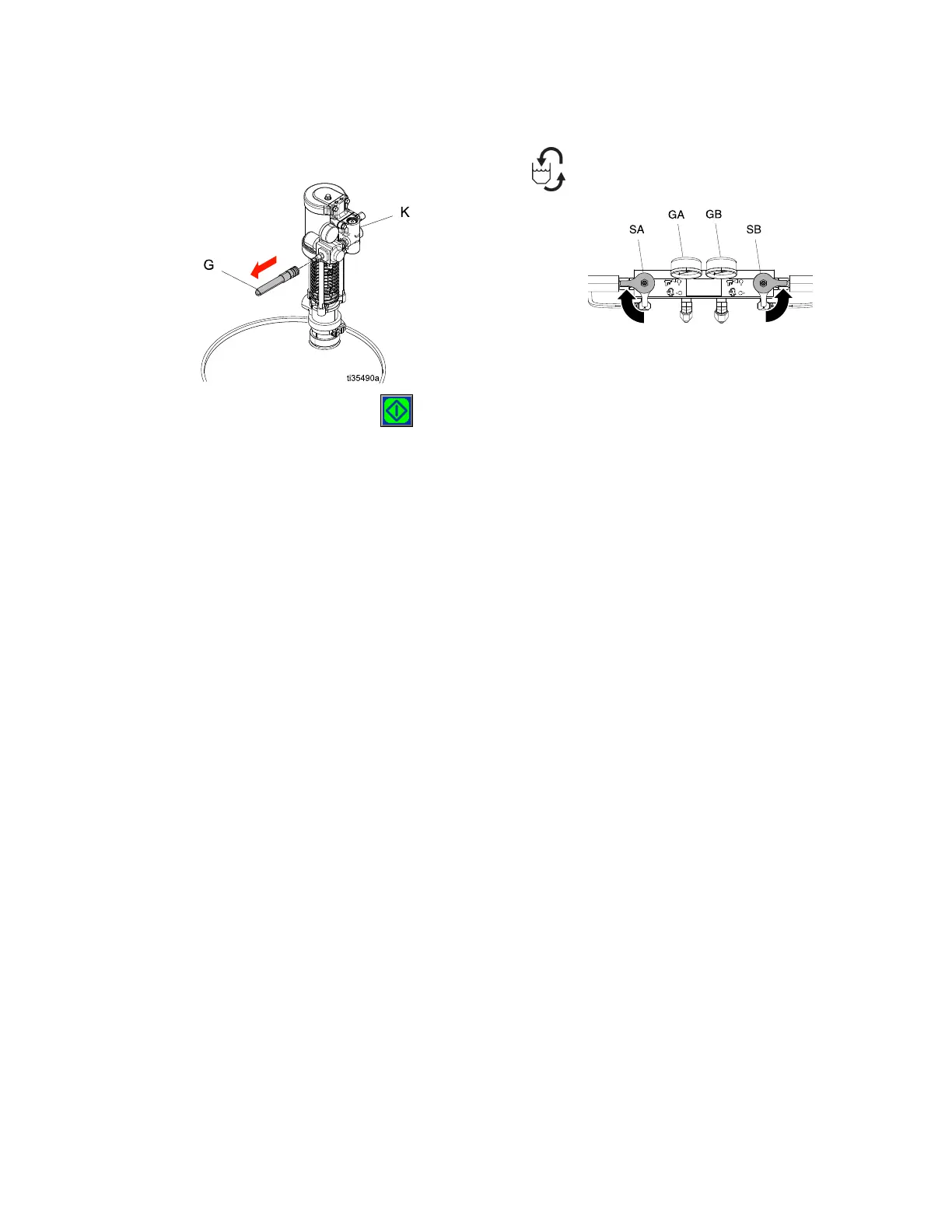

11.Torelieveairpressurefromthefeedpumps,
disconnecttheairsupplylines(G)fromthefeed
pumps(K).
12.Presstheproportionerstopbuttontoexit
Jogmode.
13.SetthePRESSURERELIEF/SPRAYvalves
(SA,SB)toPRESSURERELIEF/CIRCULATION
.
14.Listenfora“spitting”soundfromthebleed
lines(N)orrecirculationlines(R).See
TypicalInstallation,withoutcirculation,page17,
TypicalInstallation,withsystem󰘱uid
manifoldtodrumcirculation,page18,and
TypicalInstallation,withgun󰘱uidmanifoldto
drumcirculation,page19.Thissoundindicates
thattheReactor2systemstillcontainsunwanted
air.Ifthesystemstillcontainsair,repeatthe
purgeairprocedure.
