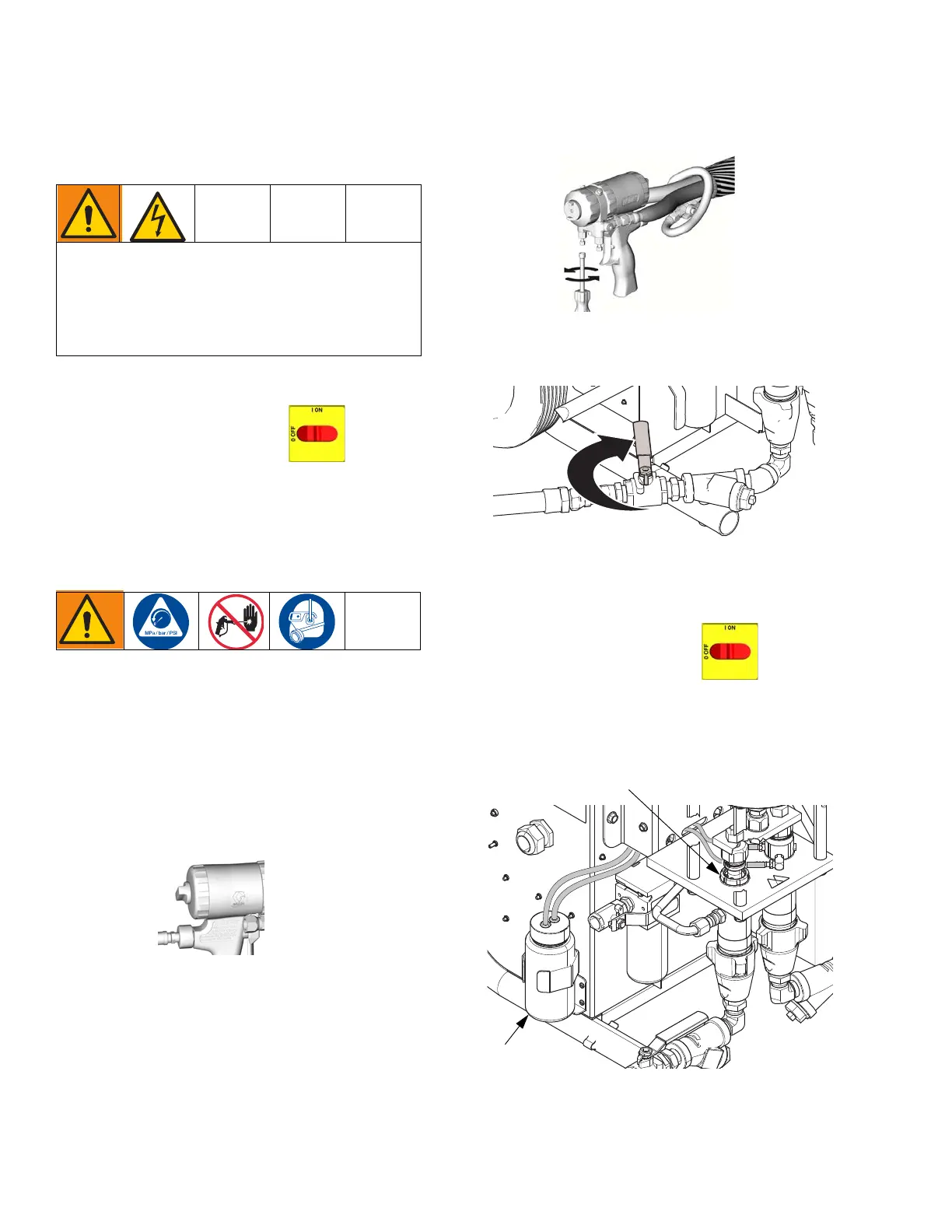

Before Beginning Repair
14 3A1570L
Before Beginning Repair
1. Flush if necessary. See Flushing, page 15.
2. Turn main heater power OFF .
3. Relieve pressure. See Pressure Relief Procedure.
Pressure Relief Procedure
The Fusion AP gun is shown.
1. Turn off feed pumps and agitator if used.
2. Park component A pump. Follow Park; see page
15.
3. Close the air inlet valve.
4. Engage gun piston safety lock.
5. Close gun fluid inlet valves A and B.
6. Close pump inlet supply valves.
Shutdown
1. Turn main heater power OFF .
2. Follow Park.
3. Check and fill wet-cups (AK, Z).
4. Follow gun shutdown procedure. See gun manual.
Repairing this equipment requires access to parts
that may cause electric shock or other serious injury
if work is not performed properly. Electrical trouble-
shooting must be done by a qualified electrician. Be
sure to shut off all power to equipment and lock out
power at the source before repairing.
ti2409a
ti2421a
ti17716a
Z
ti16974a
AK
