Graco Reactor A-XP1 Repair Parts

Parts
3A1570L 51

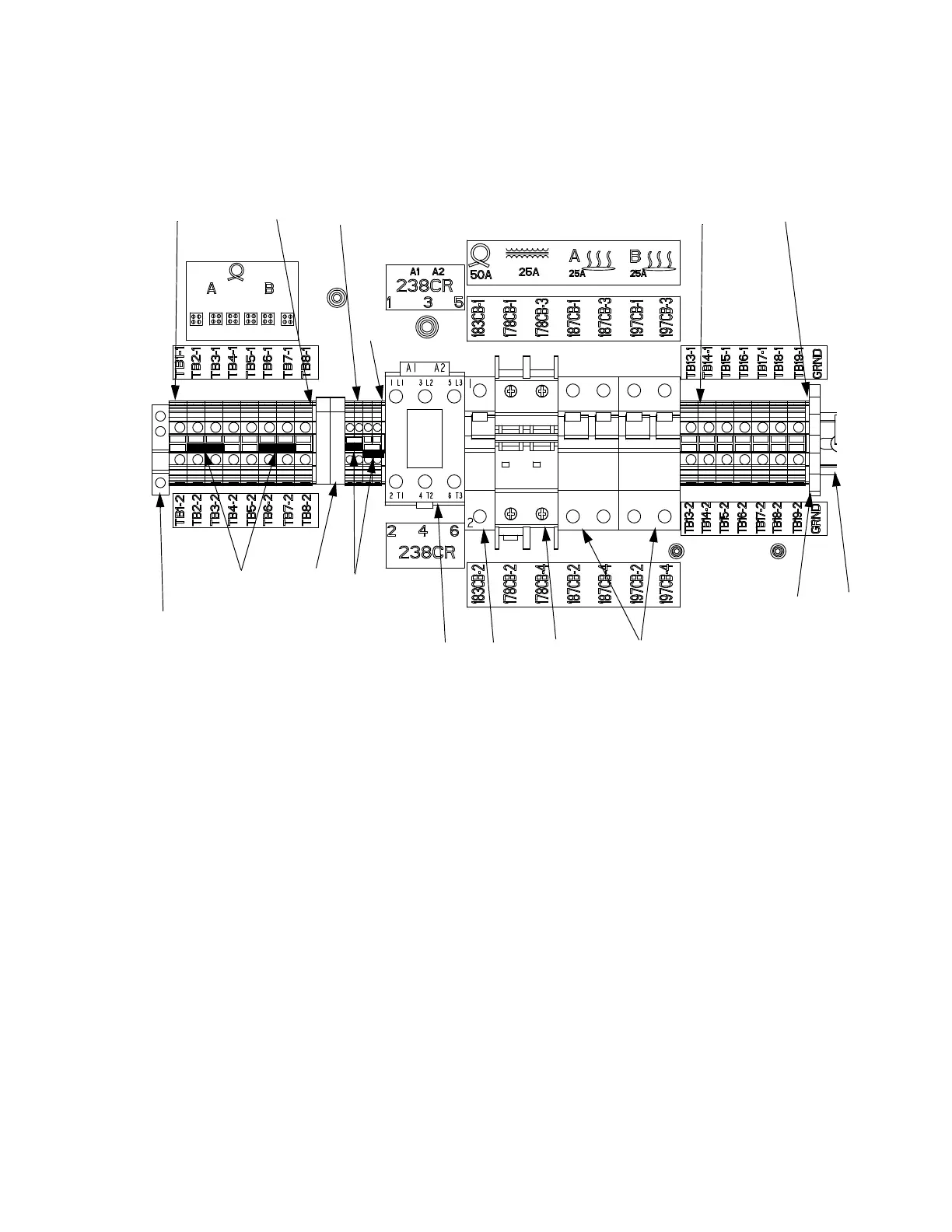

A-25 Breaker Module, 262576
A-XP1 Breaker Module, 24Y166
A-25: A-XP1:
401
402
413 414
403
410 (4x)
411
412
403404 (8x)
409 408 407 406
405
403
404 (7x)
Ref. Part Description Qty.
401 16H309 RAIL, mounting 1
402 112446 BLOCK, clamp end 1
403 120490 COVER, end 3
404 120570 BLOCK, terminal 15
405 255046 BLOCK, terminal ground 1
406 255050 CIRCUIT BREAKER (A-25), 25a, 2p 2
407 24M176 CIRCUIT BREAKER (A-2, 30a, 2p 1
408 255026 CIRCUIT BREAKER, 1 pole, 50a, c
curve
1
409 255022 RELAY, contactor, 65a, 3p 1
410 120491 BLOCK, terminal 4
411 255043 HOLDER, fuse term.block 5x20mm 2
412 116225 FUSE, 1a, 5x20mm 2
413 120573 BRIDGE, plug-in, (jumper) 2
414 120485 BRIDGE, plug-in, (jumper) 2
415 16J534 HARNESS (A-25), wiring 1
Ref. Part Description Qty.
401 16H309 RAIL, mounting 1
402 112446 BLOCK, clamp end 1
403 120490 COVER, end 3
404 120570 BLOCK, terminal 15
405 255046 BLOCK, terminal ground 1
407 123299 CIRCUIT BREAKER (A-2, 30a, 2p 3
408 255026 CIRCUIT BREAKER, 1 pole, 50a, c
curve
1
409 255022 RELAY, contactor, 65a, 3p 1
410 120491 BLOCK, terminal 4
411 255043 HOLDER, fuse term.block 5x20mm 2
412 116225 FUSE, 1a, 5x20mm 2
413 120573 BRIDGE, plug-in, (jumper) 2
414 120485 BRIDGE, plug-in, (jumper) 2
415 17G102 HARNESS (A-25), wiring 1
