Graco Reactor A-XP1 Repair Parts

Parts
3A1570L 47

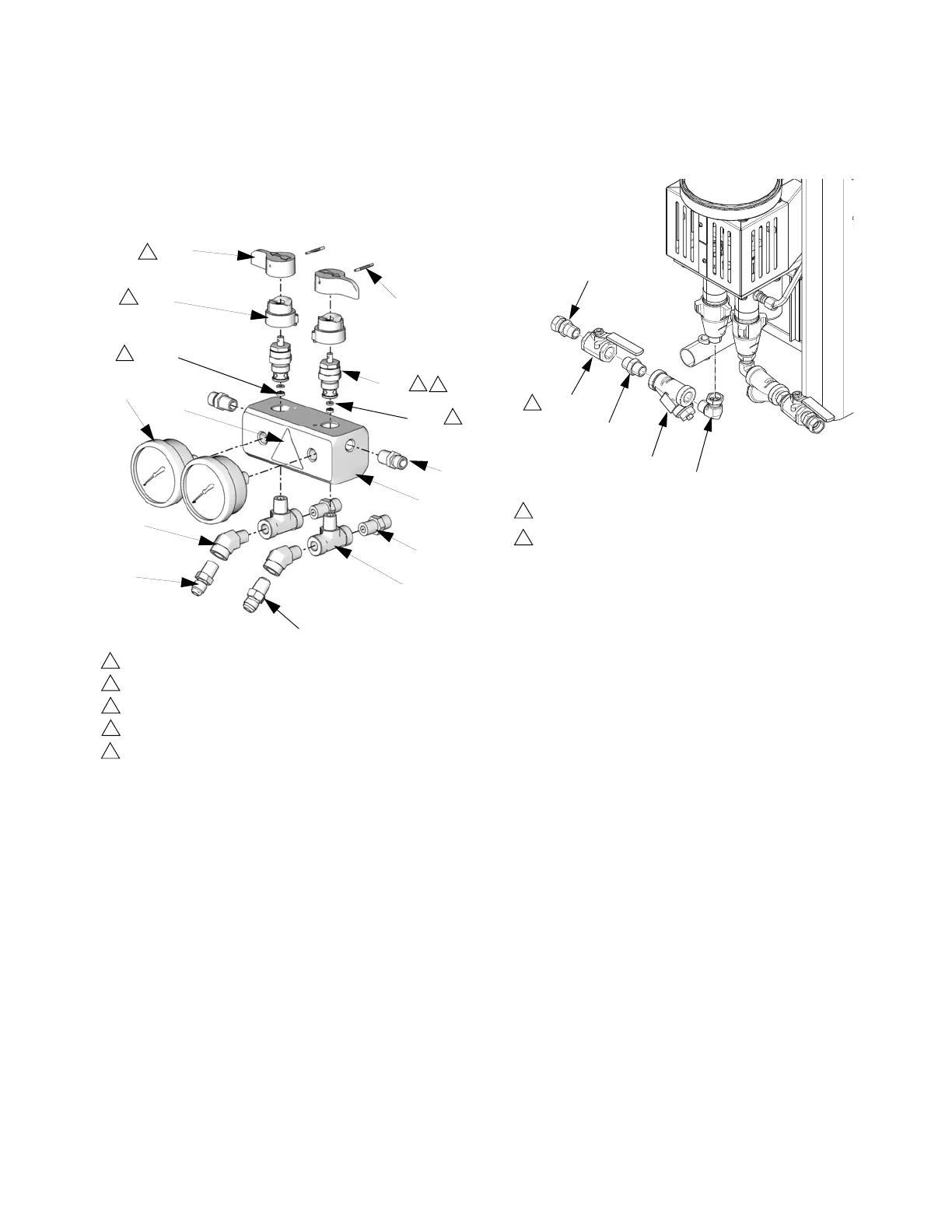

Fluid Manifold
A-25: 262577
A-XP1: 24Y177
 Replacement Danger and Warning labels, tags, and cards
are available at no cost.
Fluid Inlet Kit, 234366
Ref. Part Description Qty.
201 24K993 MANIFOLD, recirculation 1
202 108638 FITTING, pipe, tee 2
203 162453 FITTING, (1/4 npsm x 1/4 npt) 2
204 113641 GAUGE (A-25), pressure, fluid, SST 2
113654 GAUGE (A-XP1), pressure, fluid, SST 2
205 111600 PIN, grooved 2
206 119789 FITTING, elbow, street, 45 deg, 2
207 116704 ADAPTER, 3/8 JIC x 1/4 npt 1
208 239914 VALVE, drain; includes 208a, 208b 2
208a --- SEAT 2
208b --- GASKET 2
209 119998 ADAPTER, 5/16 JIC x 1/4 npt 1
210 116702 FITTING, union, 1/4 npt x 3/8 JIC 2
212 187625 HANDLE, valve, drain 2
213 189285 LABEL, caution 1
214 224807 BASE, valve 2
201
204
209
213
212
214
206
202
210
208
205
203
Apply sealant and torque to 250 in-lbs (28 N•m).
1
Use blue thread lock on valve cartridge threads into manifold.
2
Part of item 208.
3
Apply lubricant to mating surfaces.
4
Apply pipe sealant to all NPT threads.
5
4
2
ti8459a
4
1
207
208a
208b
3
3
Ref. Part Description Qty.
251 160327 UNION, adapter, 90°; 3/4 npt(m) x
3/4-14 npt(f)
2
252 101078 Y-STRAINER; 20 m screen 2
253 C20487 NIPPLE, 3/4 npt 2
254 109077 VALVE, ball; 3/4 npt (fbe) 2
255 118459 UNION, swivel; 3/4-14 npt(m)x 3/4-14
npt(f)
2
256
180199 ELEMENT, 20 mesh 2
ti18027a
251
253
252
254
255
Assemble ball valves in orientation shown.
Apply anaerobic polyacrylate pipe sealant to all NPT
connections.
1
2
1
