Graco Reactor E-10 Instructions-Parts List

Repair
52 311075V

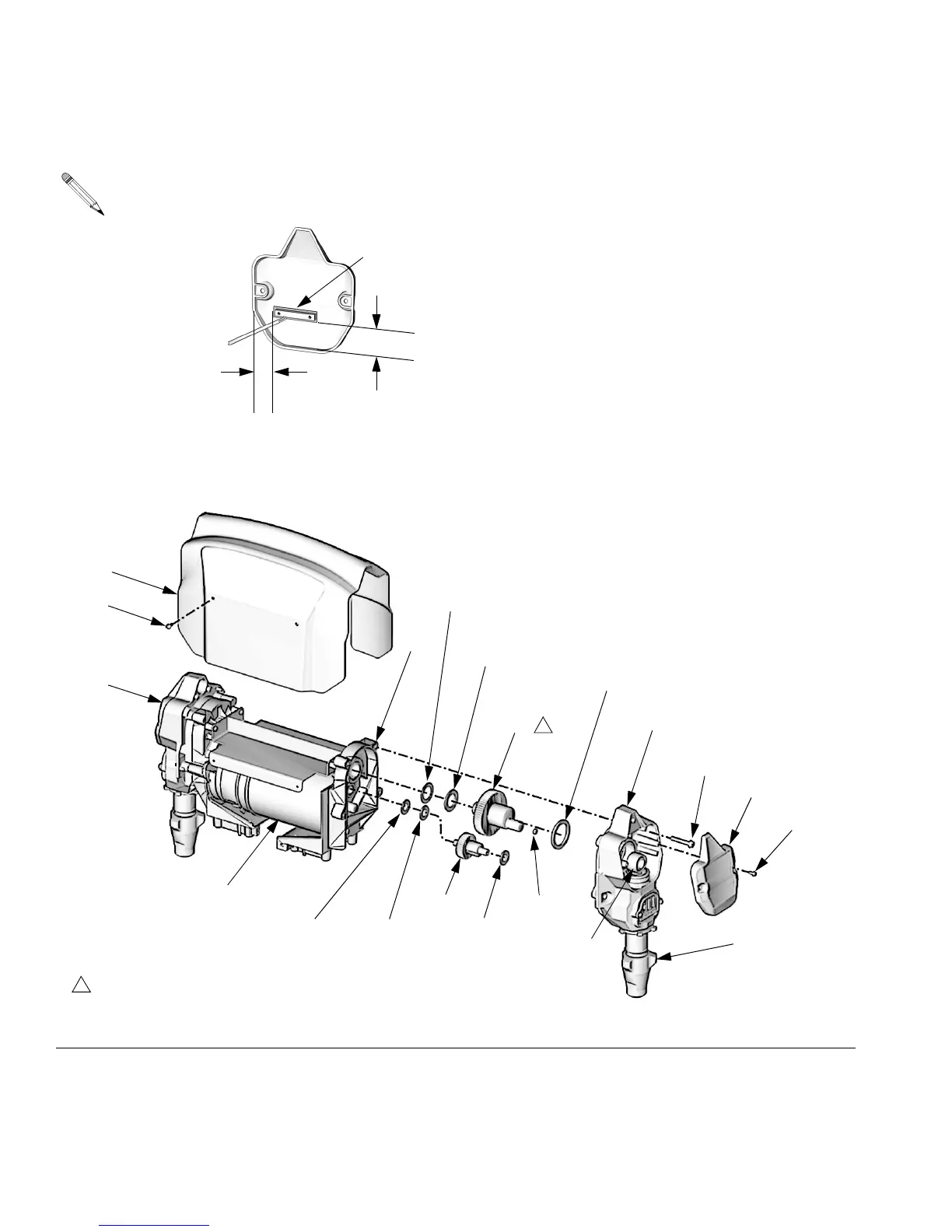

Cycle Counter Switch Replacement
B side drive housing cover (227) includes the cycle counter
switch (223), mounted in the cover. When reassembling, be
sure to install cover with switch on B side.
TI7028a
223
0.6 in. (15.2 mm)
from inside edge
1.0 in. (25.4 mm)
from inside bottom
edge
F IG . 14. Drive Housing
Crankshaft must be in line with crankshaft at other end of motor,
so pumps move up and down in unison.
1
227
220
215
224
210
206
207
201
221
214
207
TI7029a
1
MB
216
212
(steel)
213
(bronze)
208
(steel)
211
(bronze)
209
(bronze)
219
213
(bronze)
