Graco RS - Internal MIX Gel Gun, 258853

Component Identification
3A0232ZAA 11
Internal Mix Gel Gun, 258853
NOTE: On internal mix guns, the tip rotates to allow a
vertical or horizontal spray pattern.

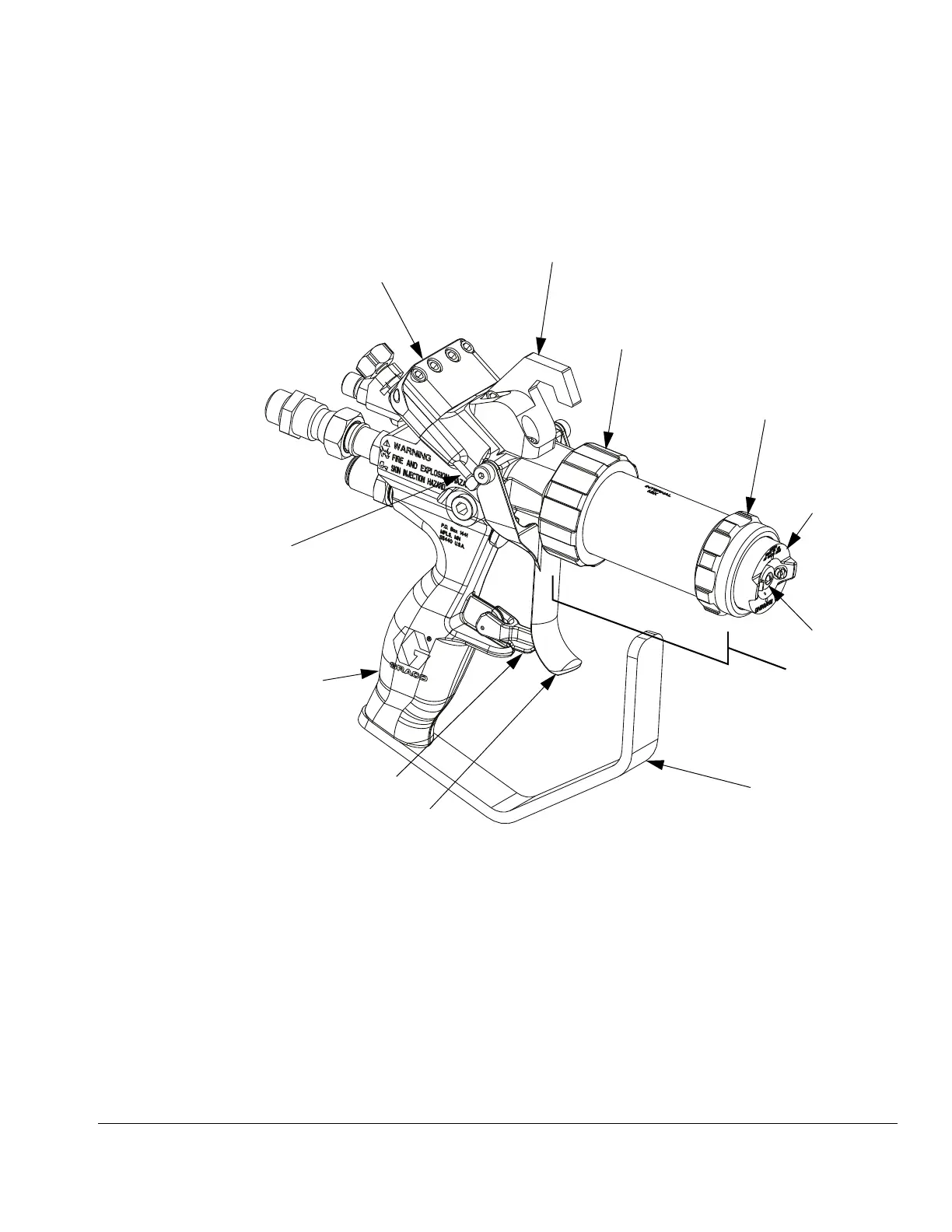

F
IG. 2
Key:
A Trigger Clamp Assembly
BGun Mount
C Front Head Locking Ring
D Air Cap Retaining Ring
E Internal Mix Aircap
F Internal Mix Front Head
G Spray Tip
H Trigger guard
J Trigger
K Trigger lock
L Handle
M Actuator Pin
A
B
ti21003a
C
D
E
F
H
J
K
G
L
M
