Parts

3A0232ZAA 43

Chop Guns

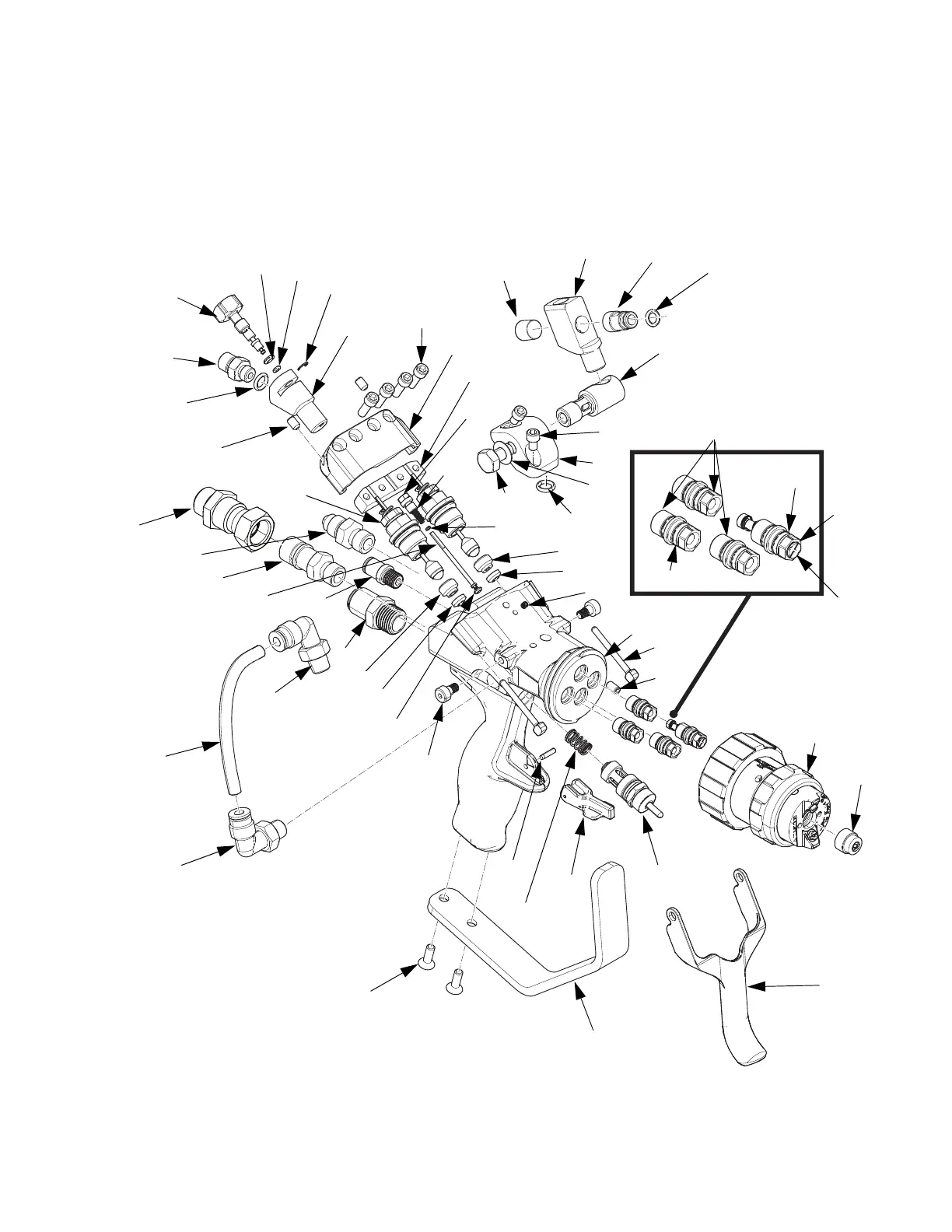

External Mix Chop Gun, 258852

ti17943b

529

530

531

532

528

514

534

533

567

511

512

508

509

507

505

506

542

543

503

502

502

522

536

535

527

520

516a

515

523

524

548

518

517

521

525

526

541

540

539

534

545

513

549

538

504

546

559

558

561

560

516a1

515b

515a

510

501

563

564

563

Table of Contents

Default Chapter2
- Table of Contents2
Models3
Related Manuals3
Warnings4
Important Two-Component Information6
- Material Self-Ignition6
- Keep Components a and B Separate6
- Changing Materials6
Important Methyl Ethyl Ketone Peroxide (MEKP) Safety Information7
Component Identification10
- External MIX Gel Gun, 25884010
- Internal MIX Gel Gun, 25885311
- Internal MIX Chop Gun, 25885412
- Internal MIX Chop Gun, 24P436, High Flow, Carbide Seat13
- External MIX Chop Gun, 25885214
Theory of Operation15
- External MIX15
- Internal MIX15
- Chop Guns15
- Impingement Versus Airless Spray Tips15
- Air Assist Containment ™ (AAC ™ )15
Grounding15
Introduction15
Setup16
Startup18
Operation19
- Trigger Lock19
- Adjust AAC19
- Internal MIX Flush19
Pressure Relief Procedure20
Shutdown21
- Daily Shutdown21
- Long-Term Shutdown23
Maintenance24
- Flush System24
Troubleshooting25
- Fluid Leaking from Front of Gun29
- Adjust Trigger Clamp29
- Fluid Leaking from under Trigger Clamp Assembly30
- Adjust Needle Packing Tension30
- Adjust Actuator Pin Adjustment Screws31
Repair32
- Remove Hardened Material from Internal MIX Front Head32
- Replace Internal MIX Element34
- Replace External MIX Check Valve35
- And O-Rings35
- Replace Material Needle Assembly36
- Replace Center Needle Assembly36
- Replace Needle Packing37
Parts38
- External MIX Gel Gun, 25884038
- Internal MIX Gel Gun, 25885340
- External MIX Chop Gun with Cutter, 25897042
- Internal MIX Chop Gun with Cutter, 25897142
- Internal MIX, High Flow, Chop Gun with Cutter, 24P43542
- Chop Guns43
- Front Head Assemblies49
- Needle Assembly, 24E41752
- O-Ring Identification53
Accessories54
- Fusion ® Grease54
- Indy or Formula Adapter Kit, 12579754
- LPA2 Adapter Kit, 12584354
- Universal Adapter Kit, 25775454
- Resin Transfer Molding (RTM) Nozzle Adapter Kit, 16T68054
- Casting Nozzle Adapter Kit, 16T70754
- External MIX High-Flow Kit, 24H33654
- Internal MIX High-Flow Kit, 24H33754
- AAC Regulators55
- External MIX Gel Gun to Chop Gun Conversion55
- Internal MIX Gel Gun to Chop Gun Conversion55
- Pressure Fed Roller Adapter Kit, 16T70856
- Extension Gelcoat Spraying Kit, 16T70956
- Tools56
- Carbide Resin Seat, 16N88956
- External MIX Chopper Extension Kit, 24V09656
- Impingement Spray Tips58
- Airless Spray Tips61
Technical Data63
- Dimensions65
Graco Standard Warranty66
Graco Information66
