Graco RS - Internal MIX Chop Gun, 24 P436, High Flow, Carbide Seat

Component Identification
3A0232ZAA 13
Internal Mix Chop Gun, 24P436, High Flow, Carbide Seat
NOTE: On internal mix guns, the tip rotates to allow ver-
tical or horizontal spray pattern.
F
IG. 4

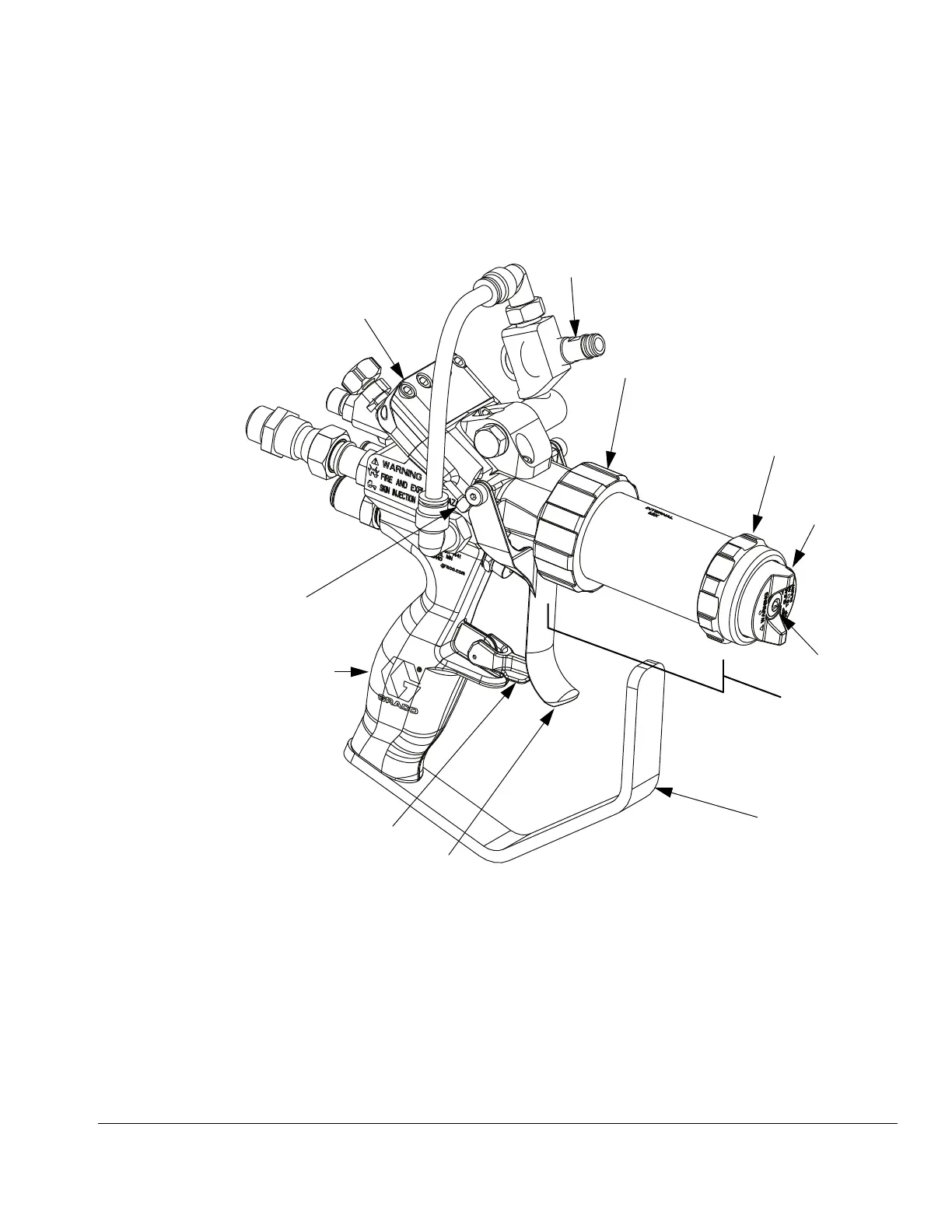

Key:
A Trigger Clamp Assembly
B Cutter Mount
C Front Head Locking Ring
D Air Cap Retaining Ring
E Internal Mix Aircap
F Internal Mix Front Head,
High Flow
G Spray Tip
H Trigger guard
J Trigger
K Trigger lock
L Handle
MActuator Pin
ti21005b
A
B
C
D
E
F
H
J
K
G
L
M
