Setup
3A0232ZAA 17
10. Adjust AAC pressure on proportioner.
11. Perform test spray. Adjust system and gun settings
as necessary to get desired results.

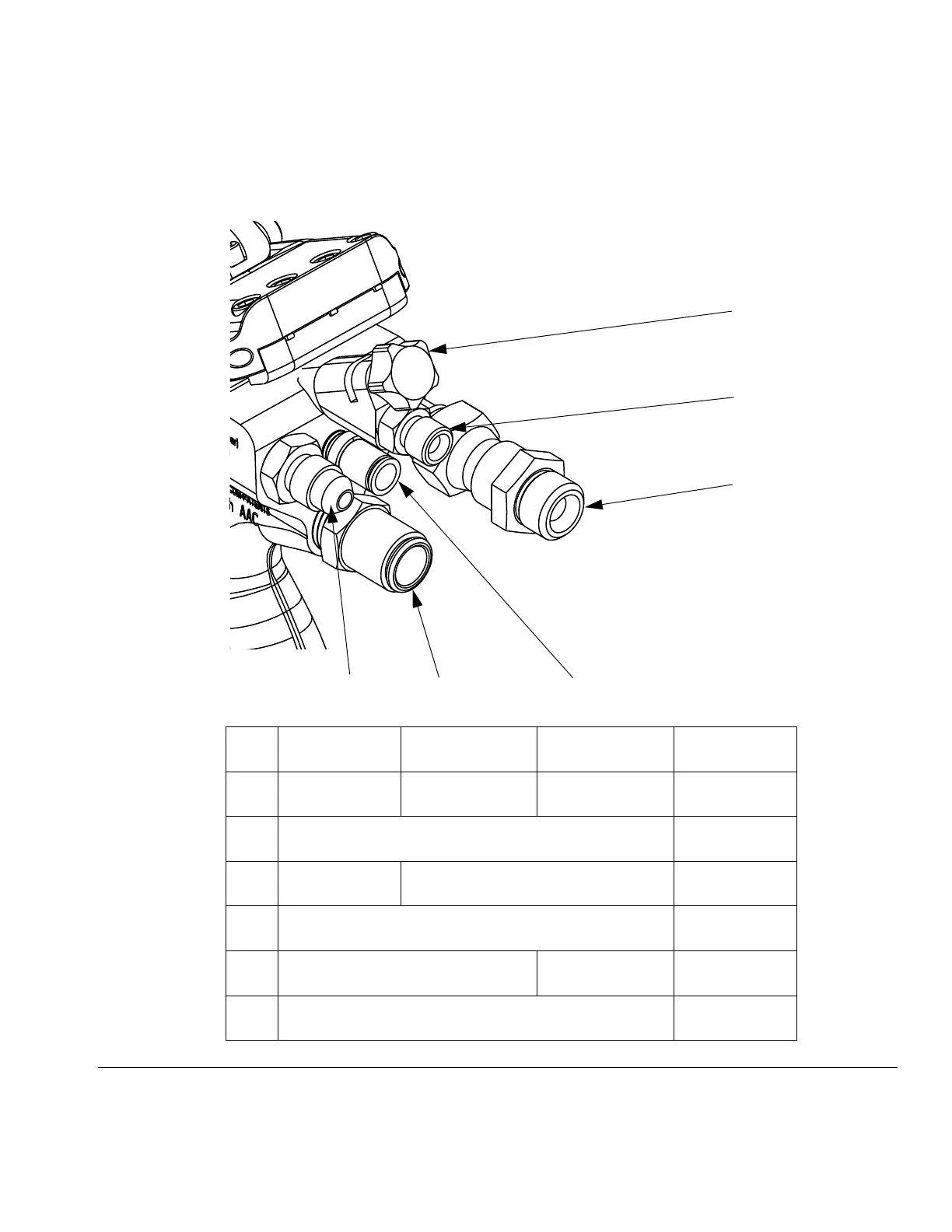

F
IG. 7: Fitting Details
BB
BABE
BF
258840_3A0232_2g
Ref External Mix Internal Mix Chop Internal Mix Gel Fitting Size
BA
Atomized Air
(Catalyst)
Air Assist Contain-
ment (AAC)
Plugged 1/4 tube
BB Resin Inlet 1/4 NPSM
BC
Air Assist Con-
tainment (AAC)
Solvent 1/8 NPSM
BD Adjustment Knob --
BE Chop Air Inlet
Air Assist Contain-
ment (AAC)
3/8 tube
BF Catalyst Inlet #4 JIC
BC
BD
