Graco Series A Instructions-Parts List

10 307273
Parts

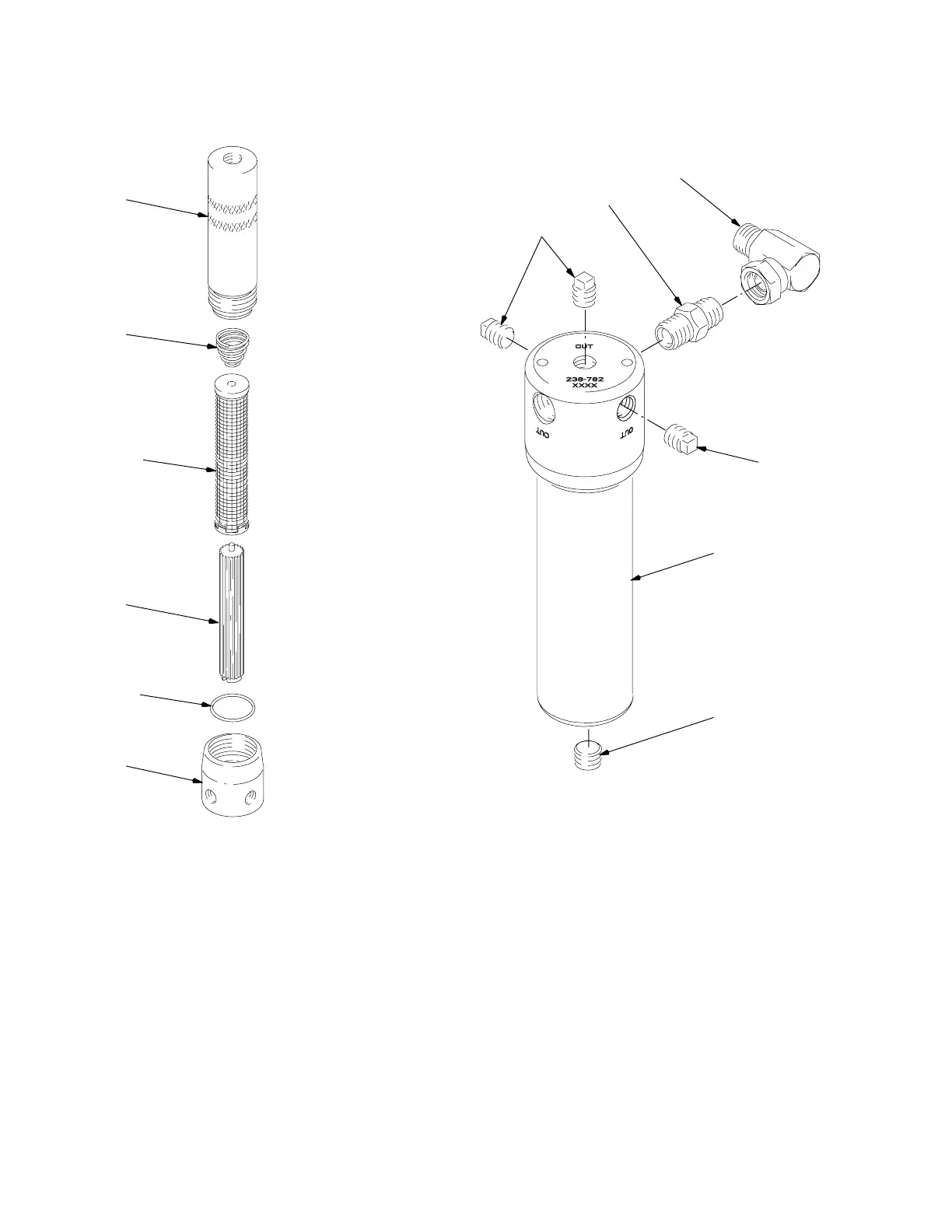

Model 238782, Series A
7
8
5n
6
3n
9
Model 248851, Series A
3
1
2
5
4
3
TI15371A
Ref.
No. Part No. Description Qty.
Ref
No. Part No. Description Qty.
3n 104361 O-RING; PTFE 1
5n 167024 SCREEN, stainless steel; 30 mesh 1
6 186075 SUPPORT, filter; polyethylene 1
7 196290 BOWL, filter; stainless steel 1
8 171941 SPRING, compression; stainless steel 1
9 193331 HOUSING, filter; stainless steel 1
n Keep these spare parts on hand to reduce down time.
1 238782 FLUID FILTER ASSEMBLY;
see parts at left 1
2 101748 PLUG; 3/8 npt; stainless steel 1
3 111697 PLUG; 1/4 npt; stainless steel 3
4 166469 NIPPLE; 3/8 npt; stainless steel 1
5 207123 ELBOW, swivel, 90
_
1
