Graco Series A Instructions-Parts List

307273 11

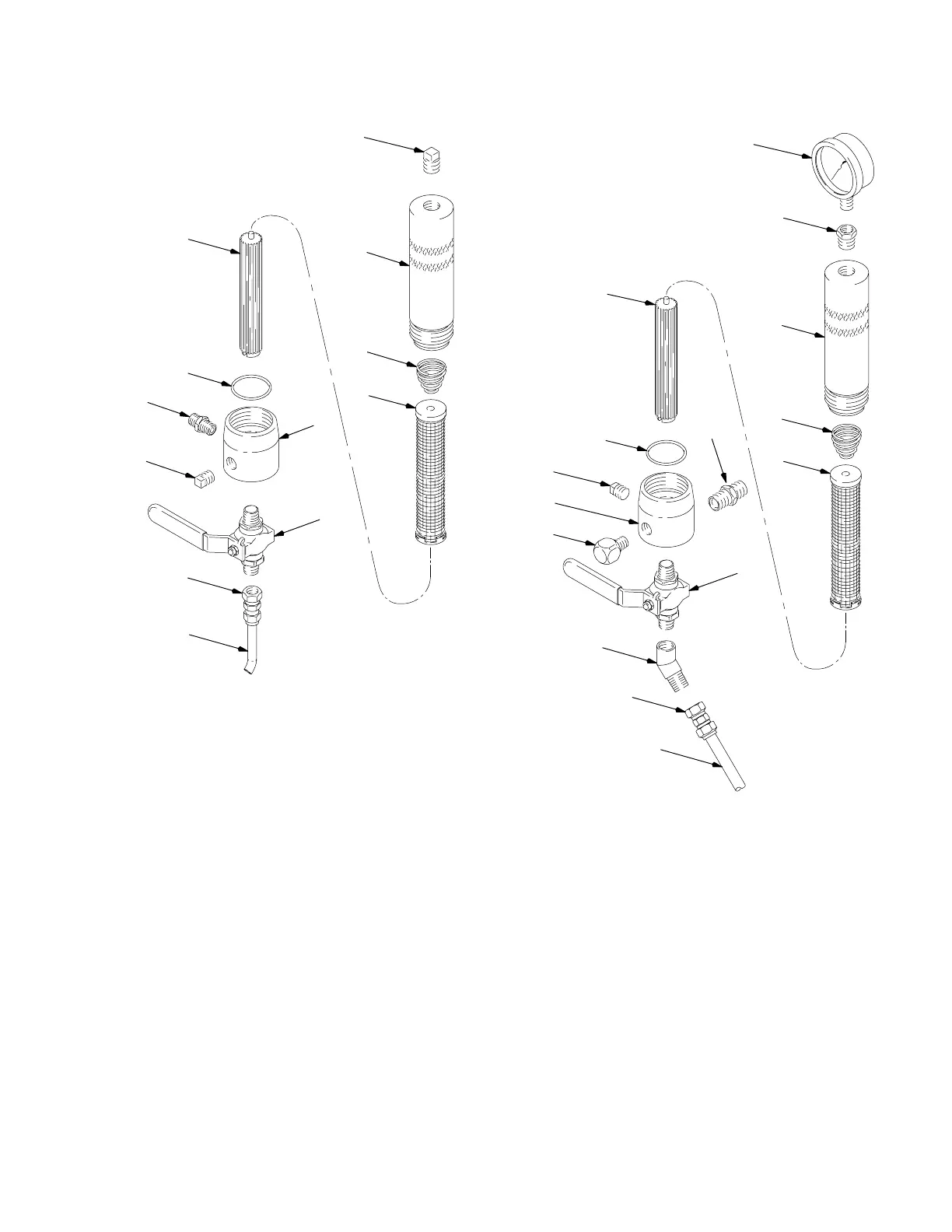

Parts
Model 239060, Series A
7001A
9
n3
6
n5
8
7
4
10
1
12
13
14
Ref.
No. Part No. Description Qty.
1 100040 PLUG; 3/8 npt; steel or iron 1
3n 104361 O-RING; PTFE 1
4 162453 NIPPLE; 1/4 npsm x 1/4 npt;
carbon steel 1
5n 167025 SCREEN, stainless steel; 60 mesh 1
6 186075 SUPPORT, filter; polyethylene 1
7 24C501 BOWL, filter; carbon steel 1
8 171941 SPRING, compression; stainless steel 1
9 171942 HOUSING, filter; carbon steel 1
10 100509 PLUG, pipe; 1/4 npt 1
12 238635 VALVE, ball; 1/4 npt (mbe);
carbon steel 1
13 205447 COUPLING; 1/4 npsm(f) 1
14 061132 TUBE, drain; nylon;
1/4 in. (0.6 mm) ID; 8 in. (203 mm) 1
n Keep these spare parts on hand to reduce down time.
Model 239244, Series A
7007A
9
n3
6
n5
8
7
10
18
12
13
14
15
19
16
17
Ref.
No. Part No. Description Qty.
3n 104361 O-RING; PTFE 1
5n 167025 SCREEN, stainless steel; 60 mesh 1
6 186075 SUPPORT, filter; polyethylene 1
7 24C501 BOWL, filter; carbon steel 1
8 171941 SPRING, compression; stainless steel 1
9 171942 HOUSING, filter; carbon steel 1
10 100509 PLUG, pipe; 1/4 npt 1
12 238635 VALVE, ball; 1/4 npt (mbe);
carbon steel 1
13 205447 COUPLING; 1/4 npsm(f) 1
14 061132 TUBE, drain; nylon;
1/4 in. (0.6 mm) ID; 8 in. (203 mm) 1
15 159841 BUSHING; 3/8 npt(m) x 1/4 npt(f) 1
16 100840 ELBOW, 90_; 1/4 npt (m x f);
carbon steel 1
17 156849 NIPPLE; 3/8 npt; carbon steel 1
18 102814 GAUGE, pressure 1
19 113444 ELBOW, 45_; 1/4 npt (m x f); brass 1
n Keep these spare parts on hand to reduce down time.
