Graco Series A Instructions-Parts List

12 307273
Parts

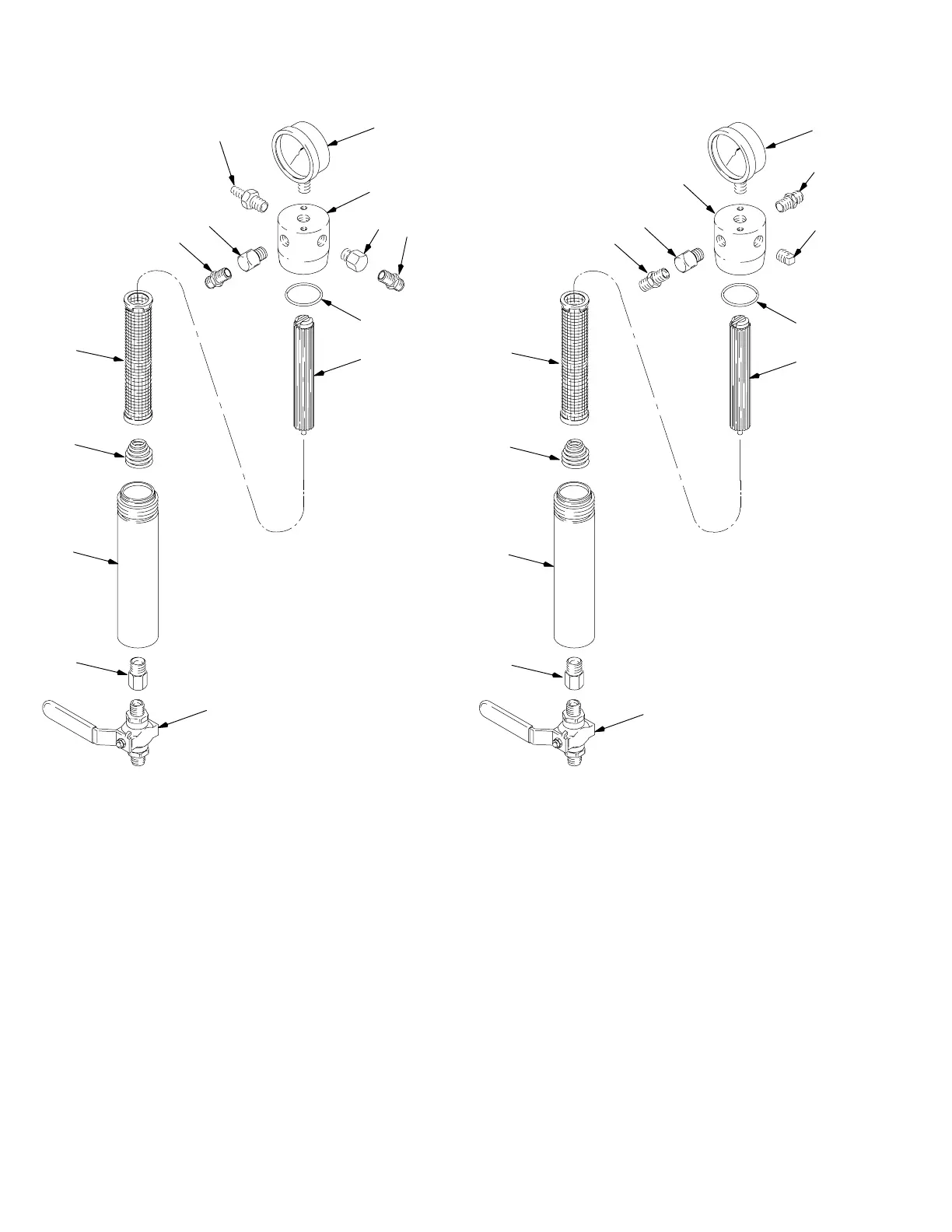

Model 239962, Series A
8018
n5
8
12
7
17
15
16
21
18
9
20
17
3n
6
Ref.
No. Part No. Description Qty.
3n 104361 O-RING; PTFE 1
5n 167025 SCREEN, stainless steel; 60 mesh 1
6 186075 SUPPORT, filter; polyethylene 1
7 24C501 BOWL, filter; carbon steel 1
8 171941 SPRING, compression; stainless steel 1
9 171942 HOUSING, filter; carbon steel 1
12 238635 VALVE, ball; 1/4 npt (mbe);
carbon steel 1
15 159841 BUSHING; 3/8 npt(m) x 1/4 npt(f) 1
16 100840 ELBOW, 90_; 1/4 npt (m x f);
carbon steel 1
17 162453 NIPPLE; 1/4 npt x 1/4 npsm;
carbon steel 2
18 102814 GAUGE, pressure 1
20 164259 ELBOW, 90_; 3/8 npt(m) x 1/4 npt (f) 1
21 156953 STUD, mounting 1
n Keep these spare parts on hand to reduce down time.
Model 239964, Series A
8020
n5
8
12
7
17
15
16
18
9
10
22
3n
6
Ref.
No. Part No. Description Qty.
3n 104361 O-RING; PTFE 1
5n 167025 SCREEN, stainless steel; 60 mesh 1
6 186075 SUPPORT, filter; polyethylene 1
7 24C501 BOWL, filter; carbon steel 1
8 171941 SPRING, compression; stainless steel 1
9 171942 HOUSING, filter; carbon steel 1
10 100509 PLUG, pipe; 1/4 npt 1
12 238635 VALVE, ball; 1/4 npt (mbe);
carbon steel 1
15 159841 BUSHING; 3/8 npt(m) x 1/4 npt(f) 1
16 100840 ELBOW, 90_; 1/4 npt (m x f);
carbon steel 1
17 162453 NIPPLE; 1/4 npt x 1/4 npsm;
carbon steel 1
18 102814 GAUGE, pressure 1
22 156849 NIPPLE; 3/8 npt; carbon steel 1
n Keep these spare parts on hand to reduce down time.
