Graco Series A Instructions-Parts List

307273 13

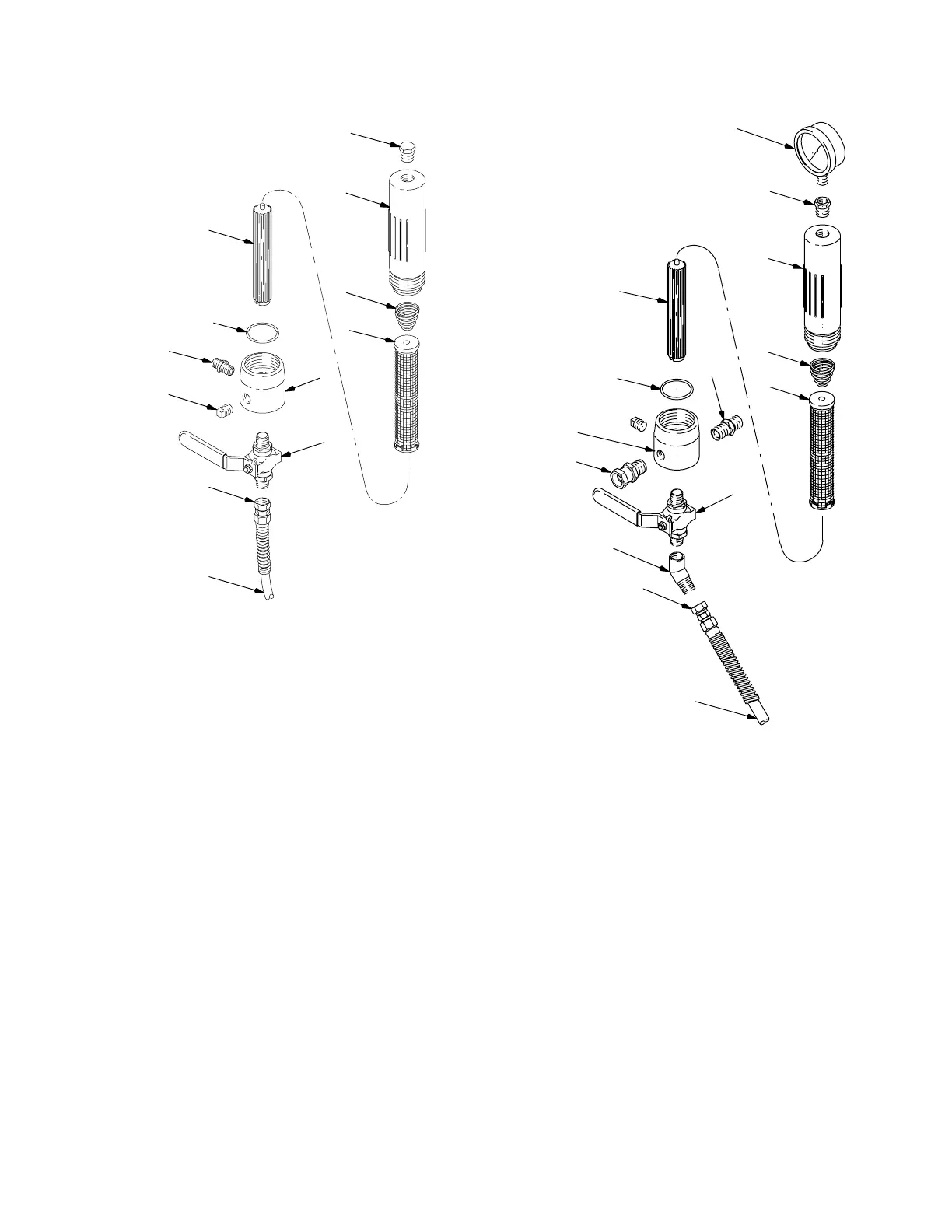

Parts
Model 239063, Series A
7003A
9
n3
6
n5
8
7
4
2
1
12
13
14
Ref
No. Part No. Description Qty.
1 110740 PLUG; 3/8 npt; stainless steel 1
2 111697 PLUG; 1/4 npt; stainless steel 2
3n 104361 O-RING; PTFE 1
4 166846 NIPPLE; 1/4 npsm x 1/4 npt;
stainless steel 1
5n 167025 SCREEN, stainless steel; 60 mesh 1
6 186075 SUPPORT, filter; polyethylene 1
7 185632 BOWL, filter; stainless steel 1
8 171941 SPRING, compression; stainless steel 1
9 185631 HOUSING, filter; stainless steel 1
12 239018 VALVE, ball; 1/4 npt (mbe);
stainless steel 1
13 111913 COUPLING; 1/4 npsm(f) 1
14 061132 TUBE, drain; nylon;
1/4 in. (0.6 mm) ID; 8 in. (203 mm) 1
n Keep these spare parts on hand to reduce down time.
Model 24F658, Series A
7005B
9
n3
6
n5
8
7
18
12
13
14
15
19
16
17
Ref
No. Part No. Description Qty.
3n 104361 O-RING; PTFE 1
5n 167025 SCREEN, stainless steel; 60 mesh 1
6 186075 SUPPORT, filter; polyethylene 1
7 185632 BOWL, filter; stainless steel 1
8 171941 SPRING, compression; stainless steel 1
9 192975 HOUSING, filter; stainless steel 1
12 239018 VALVE, ball; 1/4 npt (mbe);
stainless steel 1
13 111913 COUPLING; 1/4 npsm(f) 1
14 061132 TUBE, drain; nylon;
1/4 in. (0.6 mm) ID; 8 in. (203 mm) 1
15 168160 BUSHING; 3/8 npt(m) x 1/4 npt(f) 1
16 15M859 FITTING, adapter, swivel; 1/2 npt (m) x
1/2 npsm (f); stainless steel 1
17 114572 NIPPLE; 1/2 npt x 1/2 npsm;
stainless steel 1
18 112941 GAUGE, pressure 1
19 113933 ELBOW, 45_; 1/4 npt (m x f);
stainless steel 1
n Keep these spare parts on hand to reduce down time.
