Graco Series A Instructions-Parts List

14 307273

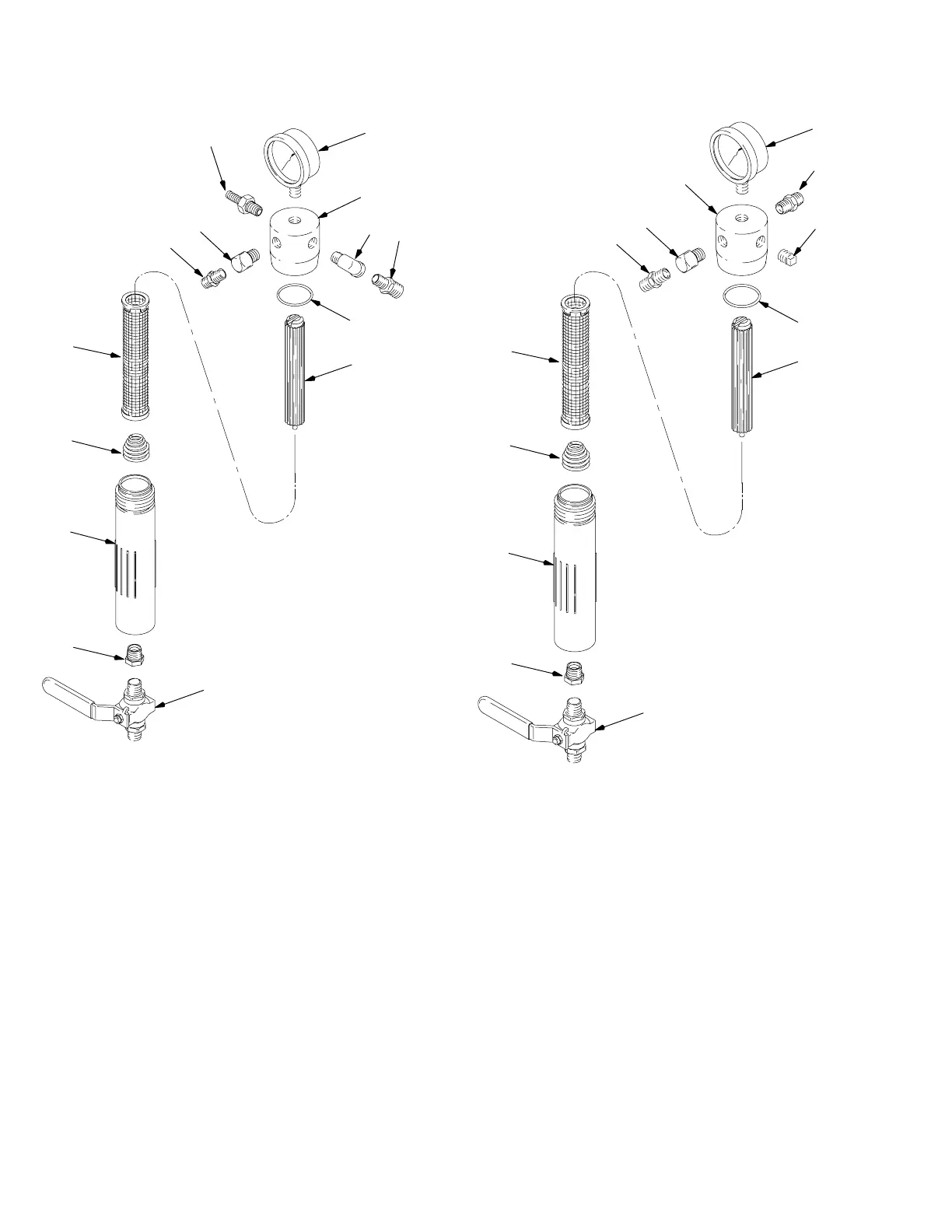

Parts
Model 239963, Series A
8019
n5
8
12
7
17
15
16
21
18
9
20
17
3n
6
Ref.
No. Part No. Description Qty.
3n 104361 O-RING; PTFE 1
5n 167025 SCREEN, stainless steel; 60 mesh 1
6 186075 SUPPORT, filter; polyethylene 1
7 185632 BOWL, filter; stainless steel 1
8 171941 SPRING, compression; stainless steel 1
9 185631 HOUSING, filter; stainless steel 1
12 239018 VALVE, ball; 1/4 npt (mbe);
stainless steel 1
15 168160 BUSHING; 3/8 npt(m) x 1/4 npt(f) 1
16 166866 ELBOW, 90_; 1/4 npt (m x f);
stainless steel 1
17 166846 NIPPLE; 1/4 npt x 1/4 npsm;
stainless steel 1
18 112941 GAUGE, pressure 1
20 112026 ELBOW, 90_; 3/8 npt (m x f) 1
21 192661 STUD, mounting 1
22 113070 NIPPLE; 3/8 x 1/4 npt; stainless steel 1
n Keep these spare parts on hand to reduce down time.
Model 239961, Series A
8017
n5
8
12
7
17
15
16
18
9
10
22
3n
6
Ref.
No. Part No. Description Qty.
3n 104361 O-RING; PTFE 1
5n 167025 SCREEN, stainless steel; 60 mesh 1
6 186075 SUPPORT, filter; polyethylene 1
7 185632 BOWL, filter; stainless steel 1
8 171941 SPRING, compression; stainless steel 1
9 185631 HOUSING, filter; stainless steel 1
10 111697 PLUG; 1/4 npt; stainless steel 1
12 239018 VALVE, ball; 1/4 npt (mbe);
stainless steel 1
15 168160 BUSHING; 3/8 npt(m) x 1/4 npt(f) 1
16 166866 ELBOW, 90_; 1/4 npt (m x f);
stainless steel 1
17 166846 NIPPLE; 1/4 npt x 1/4 npsm;
stainless steel 1
18 112941 GAUGE, pressure 1
22 111873 NIPPLE; 3/8 npt; stainless steel 1
n Keep these spare parts on hand to reduce down time.
