Graco Series A Instructions-Parts List

307273 15

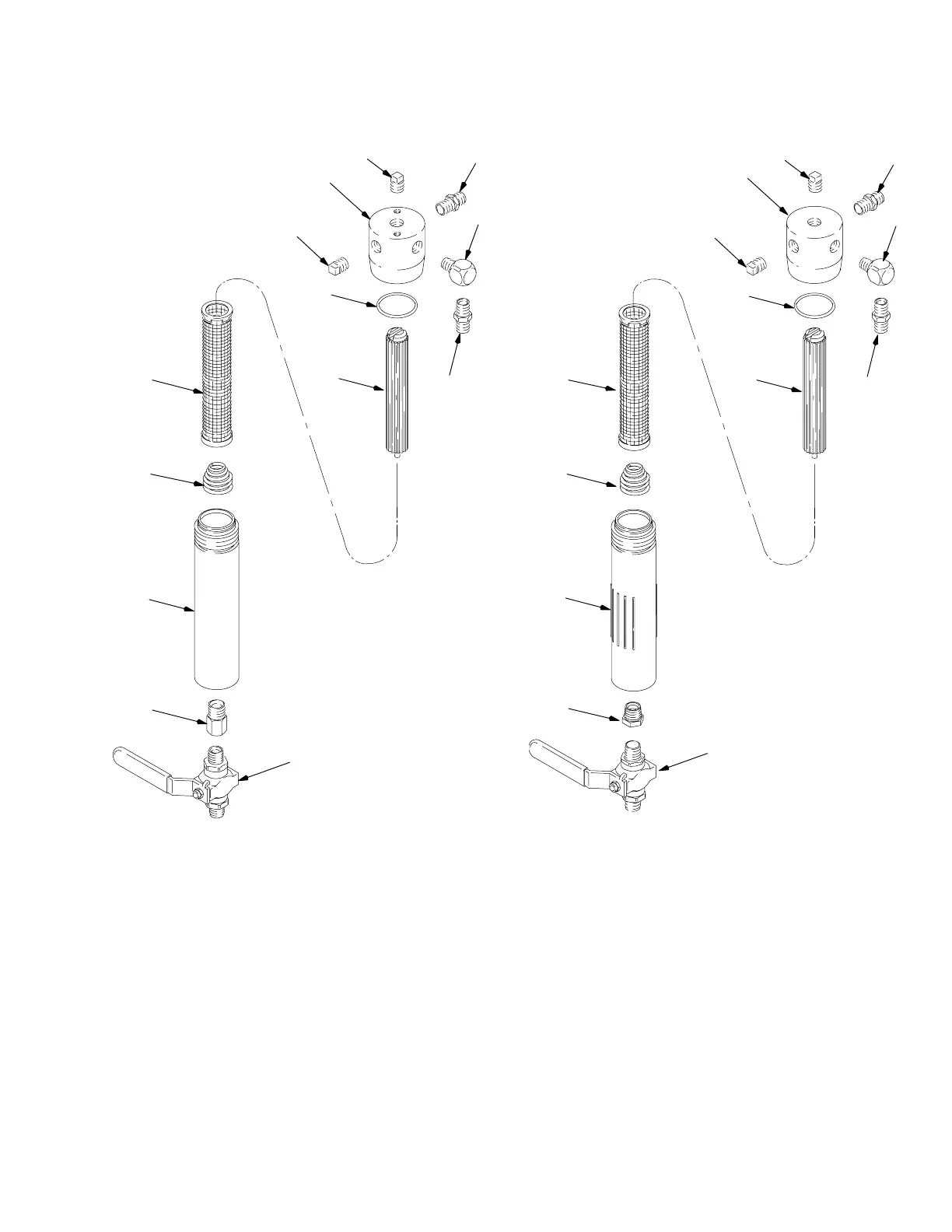

Parts
Model 240169, Series A
8021
n5
8
12
7
17
15
16
9
10
22
n3
6
10
Ref.
No. Part No. Description Qty.
3n 104361 O-RING; PTFE 1
5n 167025 SCREEN, stainless steel; 60 mesh 1
6 186075 SUPPORT, filter; polyethylene 1
7 24C501 BOWL, filter; carbon steel 1
8 171941 SPRING, compression; stainless steel 1
9 171942 HOUSING, filter; carbon steel 1
10 100509 PLUG, pipe; 1/4 npt 2
12 238635 VALVE, ball; 1/4 npt (mbe);
carbon steel 1
15 159841 BUSHING; 3/8 npt(m) x 1/4 npt(f) 1
16 100840 ELBOW, 90_; 1/4 npt (m x f);
carbon steel 1
17 162453 NIPPLE; 1/4 npt x 1/4 npsm;
carbon steel 1
22 156849 NIPPLE; 3/8 npt; carbon steel 1
n Keep these spare parts on hand to reduce down time.
Model 240170, Series A
8022
n5
8
12
7
15
17
16
9
10
22
n3
6
10
Ref.
No. Part No. Description Qty.
3n 104361 O-RING; PTFE 1
5n 167025 SCREEN, stainless steel; 60 mesh 1
6 186075 SUPPORT, filter; polyethylene 1
7 185632 BOWL, filter; stainless steel 1
8 171941 SPRING, compression; stainless steel 1
9 185631 HOUSING, filter; stainless steel 1
10 111697 PLUG; 1/4 npt; stainless steel 2
12 239018 VALVE, ball; 1/4 npt (mbe);
stainless steel 1
15 168160 BUSHING; 3/8 npt(m) x 1/4 npt(f) 1
16 166866 ELBOW, 90_; 1/4 npt (m x f);
stainless steel 1
17 166846 NIPPLE; 1/4 npt x 1/4 npsm;
stainless steel 1
22 111873 NIPPLE; 3/8 npt; stainless steel 1
n Keep these spare parts on hand to reduce down time.
