Graco Series A Instructions-Parts List

16 307273

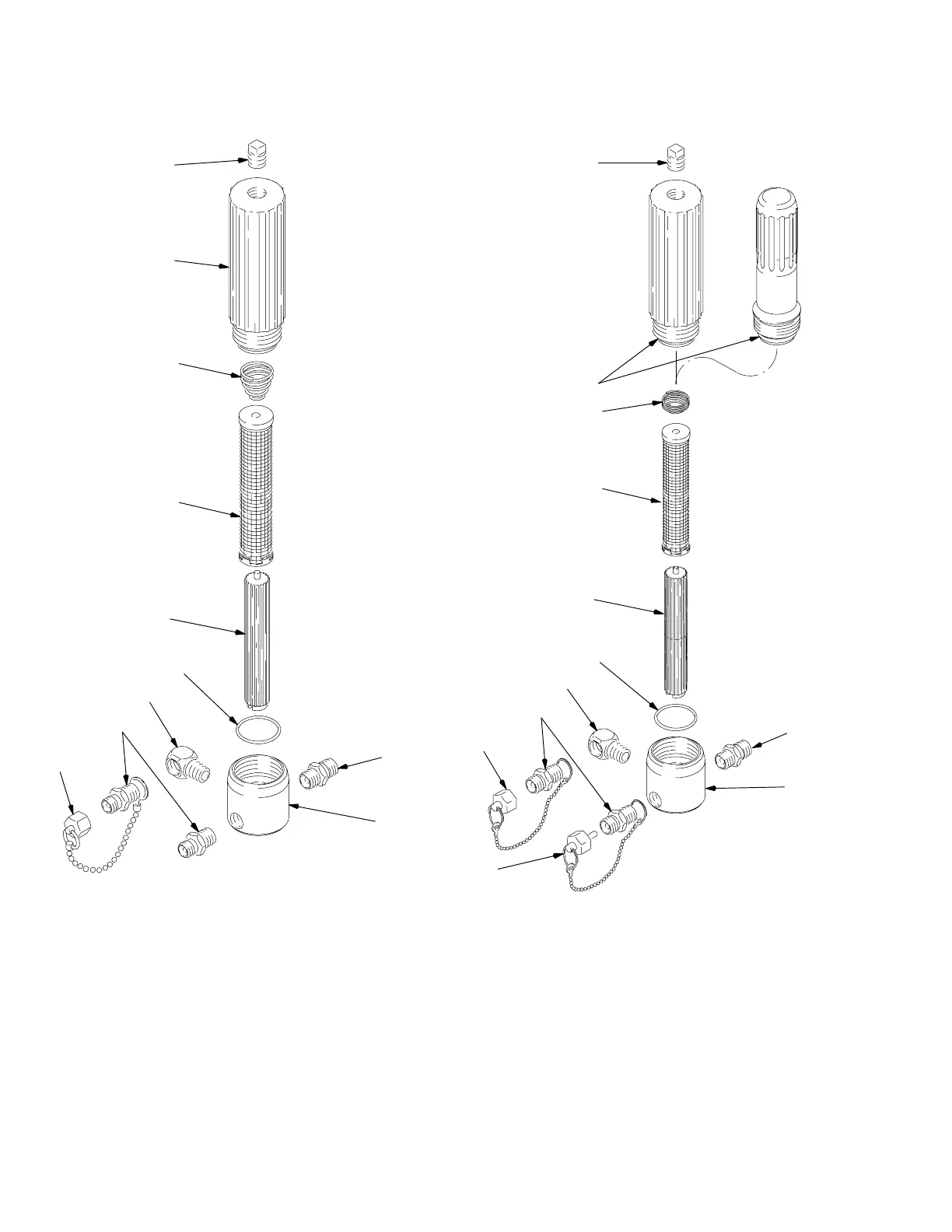

Parts
Model 239286, Series A
1
9
6
5n
8
7
10
11
4
3n
2
06952
Model 237481, Series A
Model 241107, Series A
06953A
1
9
3n
6
5n
8
7
4
4
2
10
11
Ref
No. Part No. Description Qty.
1 100040 PLUG; 3/8 npt; steel or iron 1
2 155699 ELBOW, street, 3/8–18 (m x f) 1
3n 104361 O-RING; PTFE 1
4 162485 NIPPLE; 3/8 npt(m) x 3/8 npsm(m) 1
5n 167025 SCREEN, stainless steel; 60 mesh 1
6 186075 SUPPORT, filter; polyethylene 1
7 172831 BOWL, filter; aluminum 1
8 171941 SPRING, compression; stainless steel 1
9 190097 HOUSING, filter; carbon steel 1
10 164672 NIPPLE, hex, 3/8 npt x 1/4 npsm;
1–15/16 in. long 2
11 239285 CAP, filter 1
n Keep these parts on hand to reduce down time.
Ref
No. Part No. Description Qty.
1 100040 PLUG; 3/8 npt; steel or iron; (231481) 1
2 155699 ELBOW, street, 3/8–18 (m x f) 1
3n 104361 O-RING; PTFE 1
4 162485 NIPPLE; 3/8 npt(m) x 3/8 npsm(m) 3
5n 167025 SCREEN, stainless steel; 60 mesh 1
6 186075 SUPPORT, filter; polyethylene 1
7 172831 BOWL, filter; aluminum; Model 237481 1
246582 BOWL, filter; zinc-plated steel; 1
Model 241107
8 171941 SPRING, compression; stainless steel 1
9 190097 HOUSING, filter; carbon steel 1
10 237479 CAP, filter; Model 237481 1
11 240987 PLUG, packless; Model 241107 1
n Keep these parts on hand to reduce down time.10Parts
