Graco Simulation XM Repair Parts

Electrical Schematics
44 3A2989V

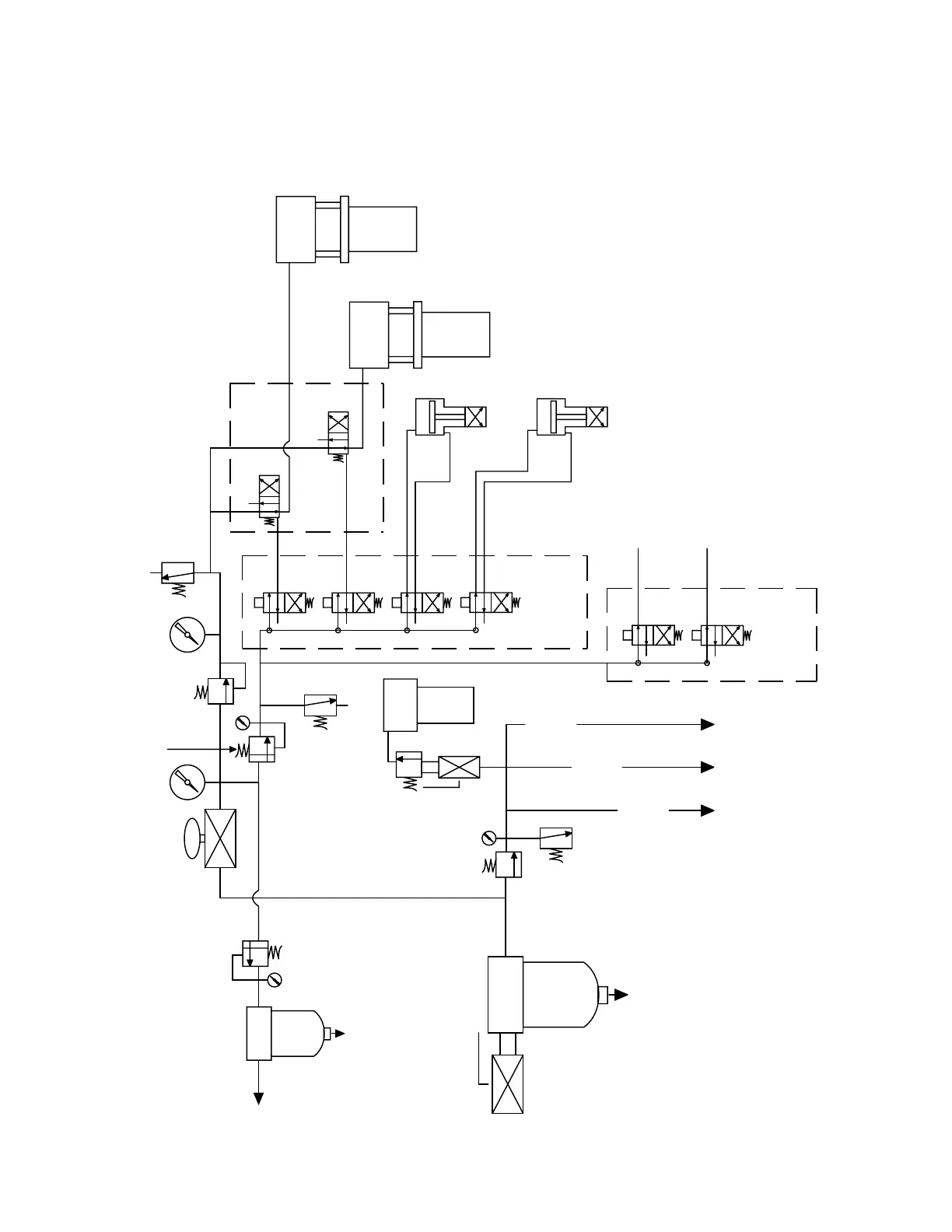

Hazardous XM PFP Air Logic Schematic
Purge Box Solenoids
Control Box Solenoids
To Pneumatic Ram Pump Pilot A
To Pneumatic Ram Pump Pilot B
Dosing Valves
High Pressure Metering Pumps
Pump A
Pump B
XM Dual Pilot Valve
Flush Pump
Exhaust
To A Feed Module
To B Feed Module
To Hose Circ Pump
Exhaust
110 PSI Limit
Pump Reg
80 PSI Filter / Reg 5 Micron
Main Control Valve
To Purge Box
System Valve 1 Inch
1 1/4 Inch
40 Micron
Auto
Air Filter
90 PSI Limit
90 PSI Limit
1/2 Inch
3 Micron
Auto
Air Filter
80 PSI
