Parts
3A2989V 61
Base System (262878, 262941) Subassemblies

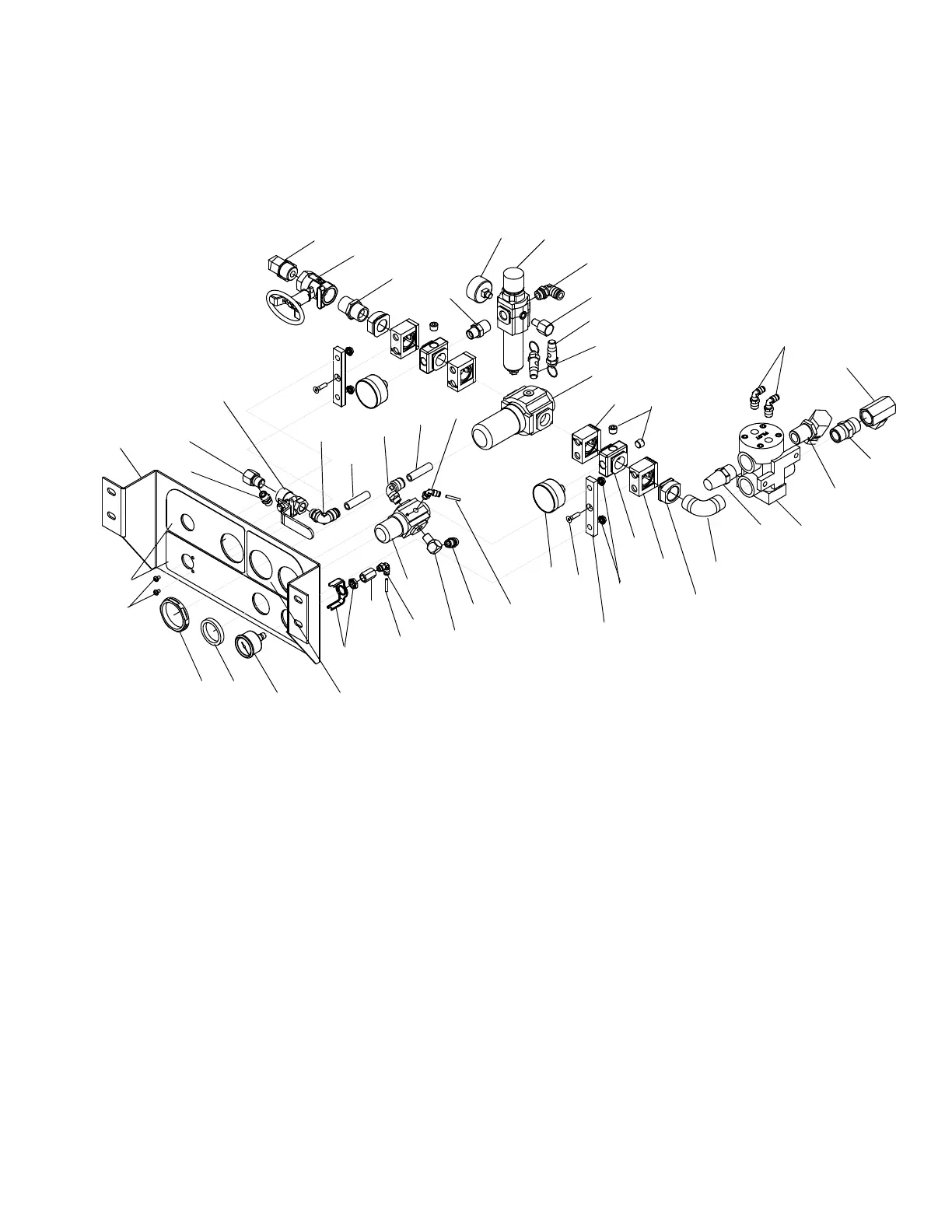

System Air Controls Module (255761)
NOTE: For Feed Module Air Panel (262860) parts, see page 79.
Parts included in Air Controls Kit 255772 (purchase sepa
rately).
--- Not for sale.
604
640
631
633
611
617
615
613
606
618
603
609
629
625
620
621
622
617
612
616
610
607
608
635
633
634
635
629
627
628
627
632
636
626
638
632
637
619
618
630
641
646
644
645
642
642
643
647
613
Ref. 27
Ref. Part Description Qty.
603 157350 NIPPLE, pipe; 1/2 x 3/8 npt 1
604 108307 ELBOW, pipe, male 1
606 101689 GAUGE, press, air 2
607 117346 VALVE, ball, vented 1
608 114316 ELBOW, male, swivel 1
609* 114109 ELBOW, male, swivel; 1/4 OD tube 2
610 158962 ELBOW, street; 1/4(f) x 1/8(m) 1
611 116643 VALVE, safety, relief, air 1
612 100721 PLUG, pipe 3
613 119992 PIPE, nipple; 3/4 x 3/4 npt 2
615 156589 ADAPTER, union; 90 deg. 1
616 113911 GAUGE, pressure, air 1
617 160327 ADAPTER, union; 90 deg. 2
618 15T119 LABEL, control 1
619 --- BRACKET, air controls 1
620 15R437 BRACKET, adapter, air controls 2
621 121432 SCREW, machine, hex flat head 2
622 115942 NUT, hex, flange head 4
625 116513 REGULATOR, air 1
626 121457 VALVE, ball, air, panel mounted 1
627 121424 GAUGE, pressure, panel mount, 1.5 in. 1
628 100451 COUPLING 1
629 114151 ELBOW, male, swivel 2
630 100264 SCREW, machine, pan head 2
631 116514 NUT, regulator 1
632 054760 TUBE, polyurethane, round, black; 1.25
in.
-
633 --- TUBE, polyurethane, round; 0.6 ft. -
634 100840 ELBOW, street 1
635 162453 FITTING; 1/4 npsm x 1/4 npt 2
636 114114 ELBOW, male, swivel 1
637 114128 ELBOW, male, swivel 1
638 164259 ELBOW, street 1
640 122336 NUT, panel, regulator 1
641 113440 ADAPTER 2
642 113431 CLAMP, quick 4
643 113442 BLOCK, porting 2
644 15R488 REGULATOR 1
644a 123454 FILTER, element; 5 micron 1
645 15R487 REGULATOR 1
646 15R486 MUFFLER 1
647 15R485 VALVE, dual pilot 1
Ref. Part Description Qty.
