Graco Simulation XM Repair Parts

Parts
60 3A2989V

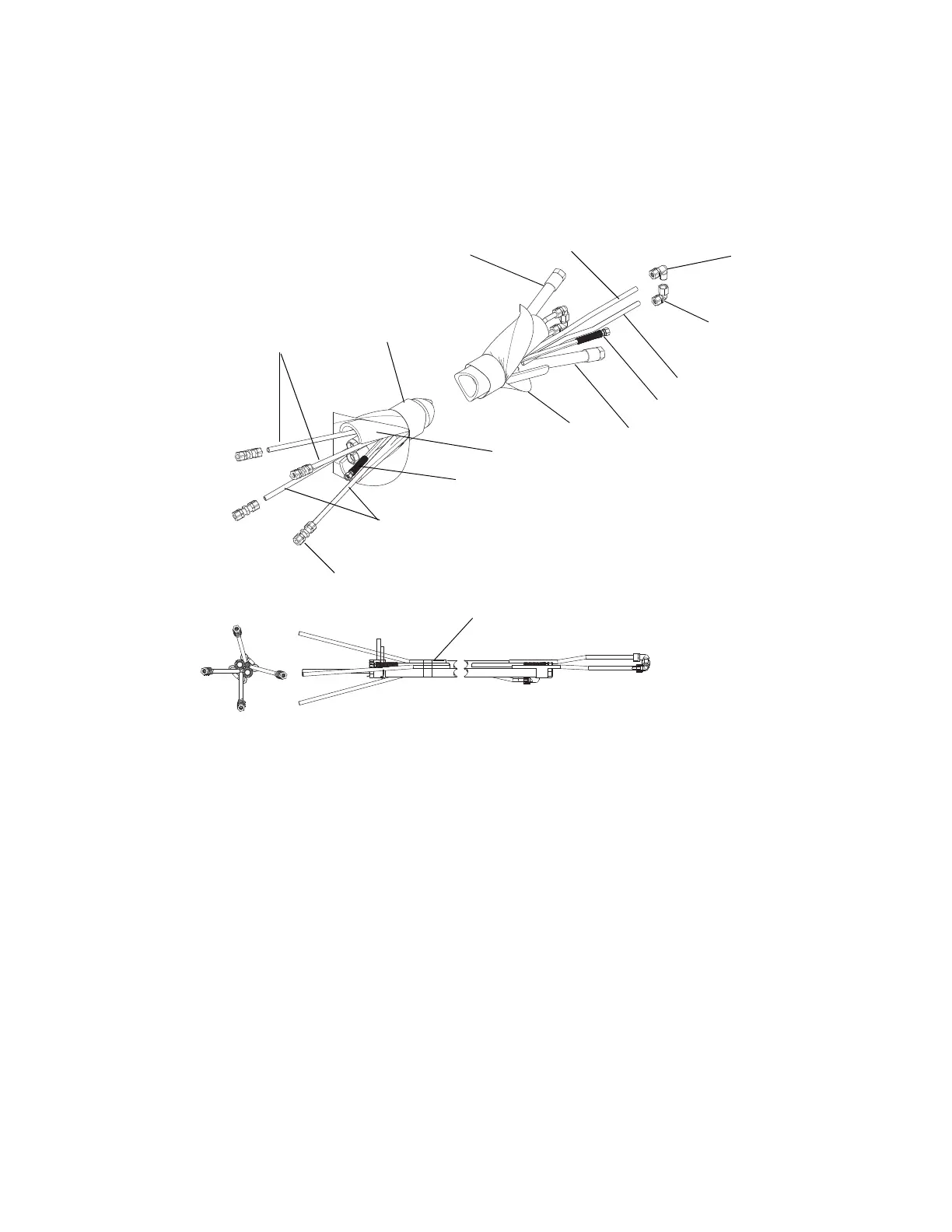

Heated Hose Bundle
16T121 - 3/4 in. x 1/2 in.
16T122 - 3/4 in. x 3/4 in.
--- Not for sale.
 Not shown.
310b
310c
302 (red)
305 (blue)
301
308
306
310a
302
305
303
303
307
304
309
ti20243a
Ref Part Description Qty
301 H67550 HOSE, coupled, 3/4 in., 6500 psi;
Model 16T121 - Qty 1
Model 16T122 - Qty 2
302 16X027 KIT, tube, 0.375 (9.5mm) ID red
nylon
2
303 H42550 HOSE, coupled, 4500 psi, 1/4 in. ID,
50 ft (15.2 m)
1
304 --- LABEL, identification 1
305 16X028 KIT, tube, 0.375 in. (9.5mm) ID blue
nylon
2
306 --- TAPE, electrical 1
307 --- TUBE, insulation, 2-5/8 in. ID, 50 ft
(15.2 m)
1
308 H75050 HOSE, coupled, 7250 psi, 1/2 in. ID,
50 ft (15.2 m); Model 16T121 only
1
309 16T138 JACKET, scuff, 50 ft (15.2 m) 1
310 16U666 KIT, tube fittings 1
310a 126894 UNION, 1/2 in. tube x 1/2 in. tube 4
310b 126898 ELBOW, 1/2 in. tube x 1/2 nptm 2
310c 126896 ELBOW, 1/2 in. tube x 1/2 nptf 2
311 16U111 KIT, fittings, hose connection 1
311a C20487 NIPPLE, hex 2
311b 158491 NIPPLE 1
311c 156823 UNION, swivel 2
311d 156971 NIPPLE, short 1
