Graco Simulation XM Repair Parts

Parts
3A2989V 71

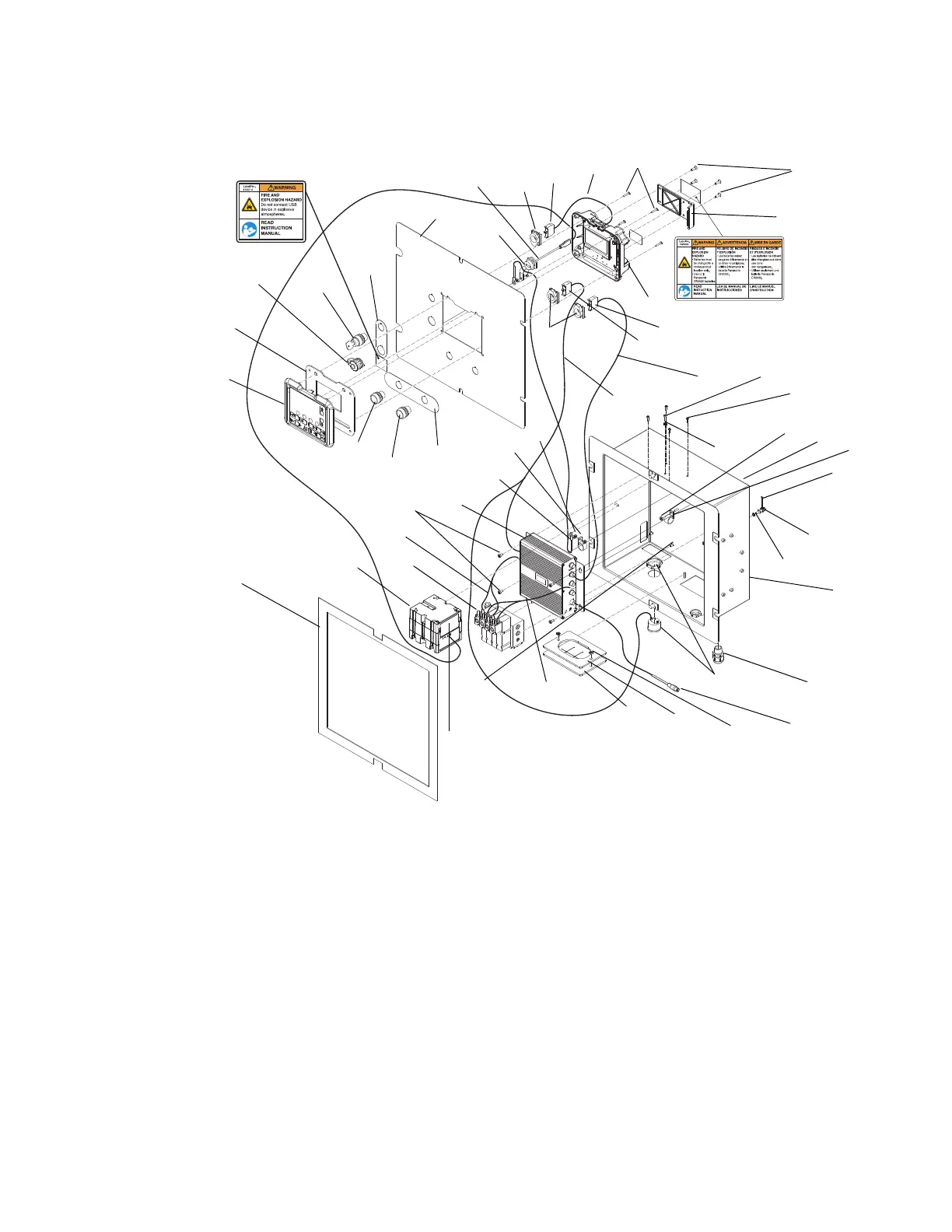

Control Box (16)
WLE
501
502
504c
504a, 504d
532
532
538
521
504e
504f
510
528
529
530
540
541
543
515
524, 525
517
507
535
514
509
526
508
545
503
502
523
522
520
536
504g
501
538
537
544
533
534
526
527
504b
542
542
551
543
504h
539
519c
543
526
546
Ref. Part Description
Qty
.
501 --- BOX, control 1
502 --- LABEL, control display 1
503† 262641 KIT, replacement, USB; includes
519 and 506
1
504 257484 MODULE, display, kit
504a 15M483 SHIELD, membrane, display (qty.
10)
1
504b --- SCREW, pan head; #6 x 7/8 in. 4
504c 288997 CASE, rear, display module, IS
version
1
504d 255727 CASE, front, data module 1
504e 277463 COVER, access, low level display 1
504f 113768 SCREW, socket, flat head 4
504g 15R458 GASKET, control, front panel 1
504h 15W958 LABEL, warning, battery 1
505† 262642 KIT, replacement, display;
includes 504 and 506
1
506* 17E110 TOKEN, software 1
507† 262643 KIT, replacement, FCM; includes
518 and 506
1
508 --- SCREW, pan head 4
509 256555 MODULE, solenoid, IS version 1
509a 121636 VALVE, solenoid, din connector 4
509b 15A798 GASKET, solenoid, outlet 1
509c 15A799 GASKET, solenoid, inlet/exhaust 1
510 106084 SCREW, machine, pan head 2
514 15R379 GASKET, box, control 1
515 --- LABEL 1
516 15B056 LABEL, air motor/dosing valve 1
517 122000 ALARM, panel mount 1
518 255920 MODULE, fluid control 1
Ref. Part Description
Qty
.
