Parts
3A2989V 77

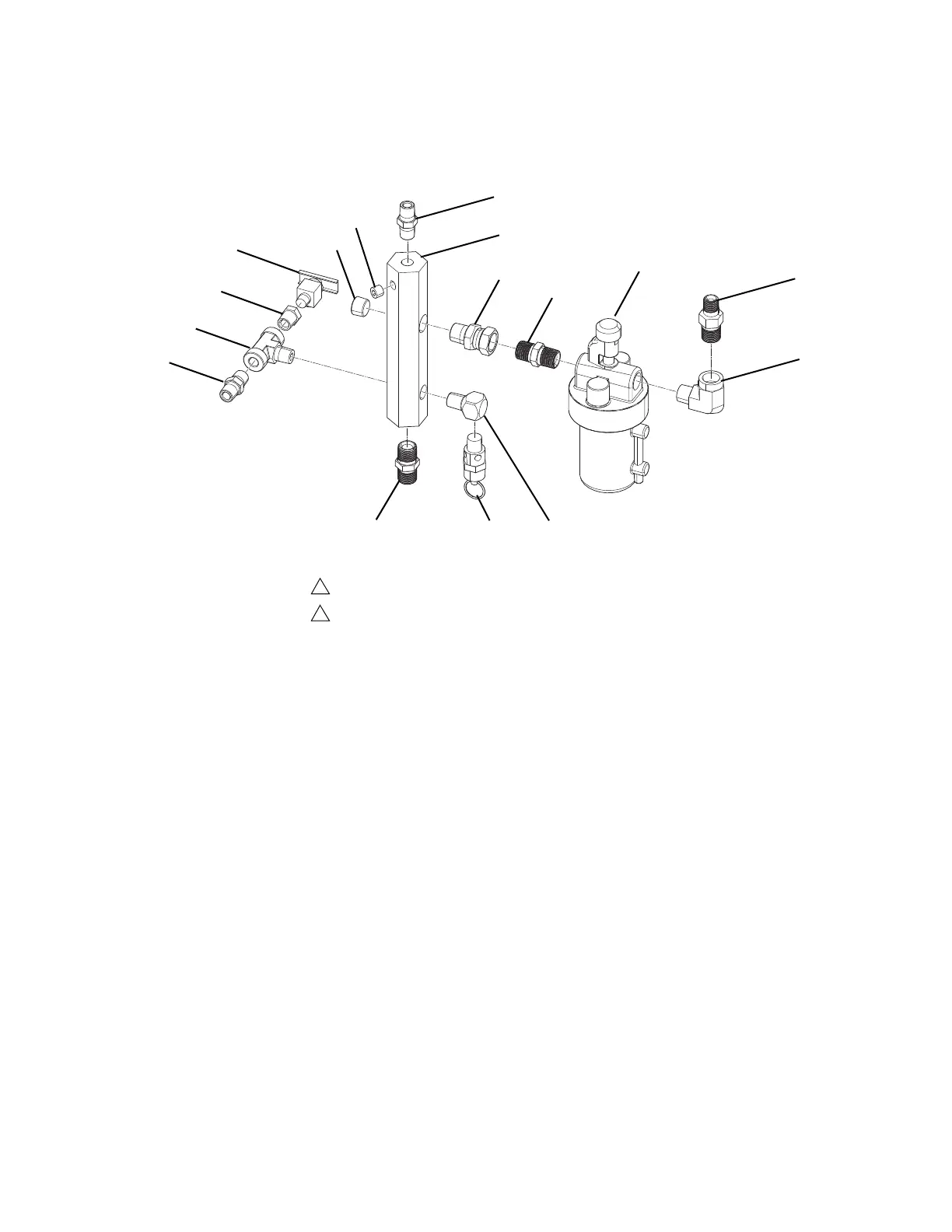

Tank Air Manifold Assembly (218)
--- Not for sale.
1008
Apply pipe sealant to all non-swiveling pipe threads.
Orient all fittings as shown.
1001
1005
1013
1004
1003
1002
100610071003
1010
1012
1011
1013
1009
1008
Ref Part Description Qty
1001 189016 MANIFOLD, air, inlet 1
1002 155665 UNION, adapter 1
1003 156849 PIPE, nipple 2
1004 214847 LUBRICATOR, air line 1
1005 165198 FITTING, nipple, reducing 1
1006 100840 FITTING, elbow, street 1
1007 116643 VALVE, safety, 90 psi 1
1008 156971 FITTING, nipple, short 2
1009 108638 FITTING, pipe, tee 1
1010 101759 FITTING, drain cock 1
1011 101754 PLUG, pipe 1
1012 100139 PLUG, pipe 1
1013 100030 BUSHING 1
1014 111856 FITTING, elbow, street 1
1015 --- SEALANT, pipe, stainless steel 1
