Graco Simulation XM Repair Parts

Parts
80 3A2989V
Air Panel
--- Not for sale.

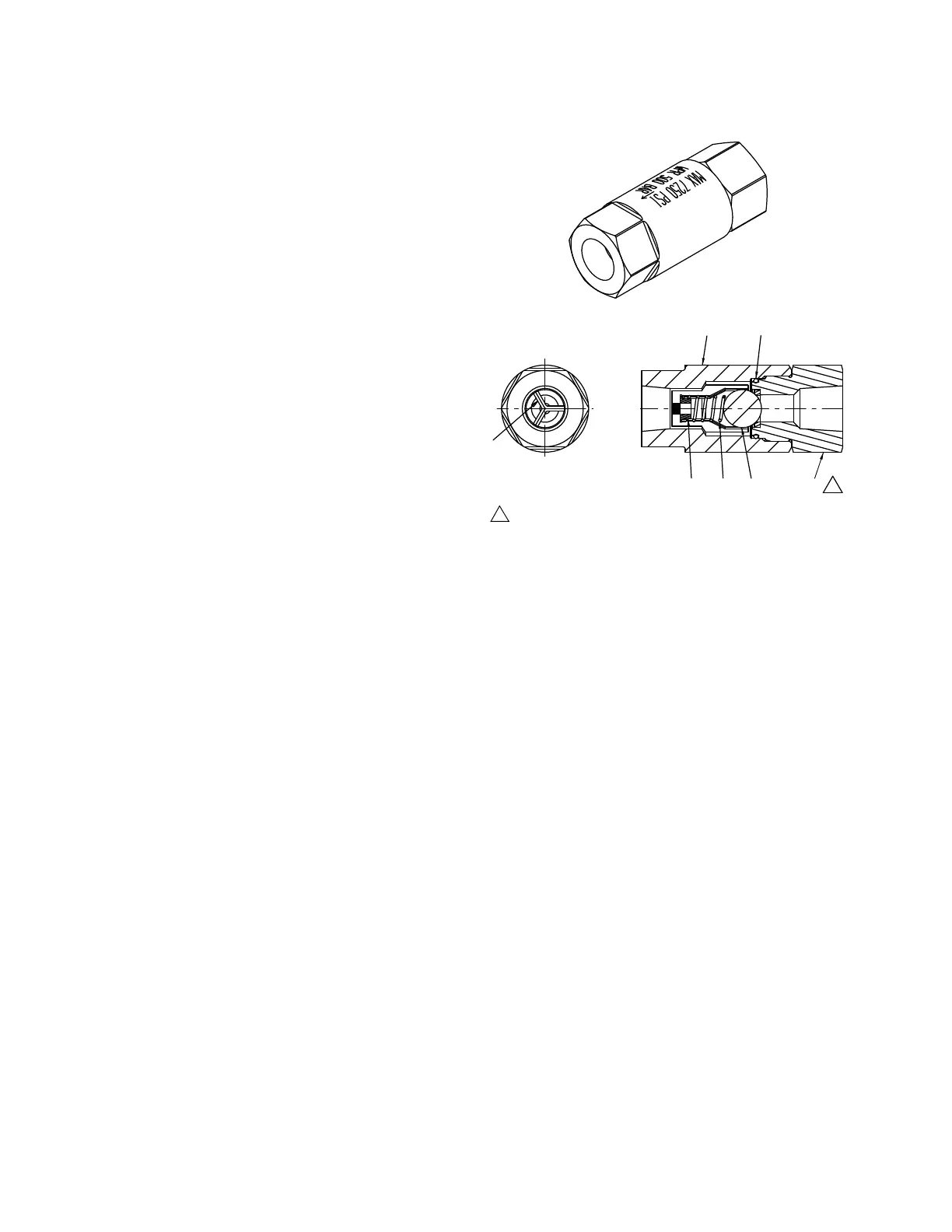

Check Valve (16T481)
--- Not for sale.
Ref Part Description Qty
1101 --- BRACKET, air control 1
1102 --- LABEL, instructions 1
1103 121424 GAUGE, pressure, panel mount,
1.5 in.
1
1104 15T498 FITTING, 90 degree, swivel,
5/32 in. tee x 1/8 in. female npt
1
1105 116513 REGULATOR, air 1
1106 121141 FITTING, elbow, swivel, 3/8 tee,
1/4 in. male npt
1
1109 198171 FITTING, elbow 1
1110 100403 PLUG, pipe 1
1111 121457 VALVE, ball, air, panel mounted 2
1113 155699 FITTING, elbow, street
262860: Qty 2) (262844: Qty. 3)
1114 165198 FITTING, nipple, reducing
(262860: Qty 2) (262844: Qty. 3)
1115 104984 FITTING, tee, pipe 1
1116 157705 UNION, swivel 1
1117 156971 FITTING, nipple, short 1
1118 206264 VALVE, needle 1
1119 114367 FITTING, tube, qd, 90 degree
elbow
1
1120 109544 FITTING, elbow, pipe, male 1
1121 110914 VALVE, button, push 1
1122 100264 SCREW, mach, panhead 4
1123 116514 NUT, regulator mount 1
1124 109193 FITTING, tube, male, elbow 2
1125 16F151 FITTING, elbow, swivel, 3/8 tee,
3/8 npt
1
1126 --- SEALANT, pipe, stainless steel 1
1127 054134 TUBE, nylon, 3/8 in. OD 1.1
1128 517305 TUBE, nylon, 5/32 in. OD 0.7
1129 106495 VALVE, check, brass, 1/4 MBE 1
1130 100840 FITTING, elbow, street 1
Ref Part Description Qty
1201 --- NUT, seat 1
1202 102595 PACKING, o-ring 1
1203 100279 BALL, metallic 1
1204 108361 SPRING, compression 1
1205 --- HOUSING, ball check 1
1206 181492 GUIDE, ball 3
1207 181535 RETAINER, spring 1
1205
1201
1207
1204
1203
1202
1206
1
Torque to 75-80 ft-lb (102-108 N•m).
1
